Image forming apparatus with varying heater voltage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Sep 20, 2016
filing date -
Sep 28, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

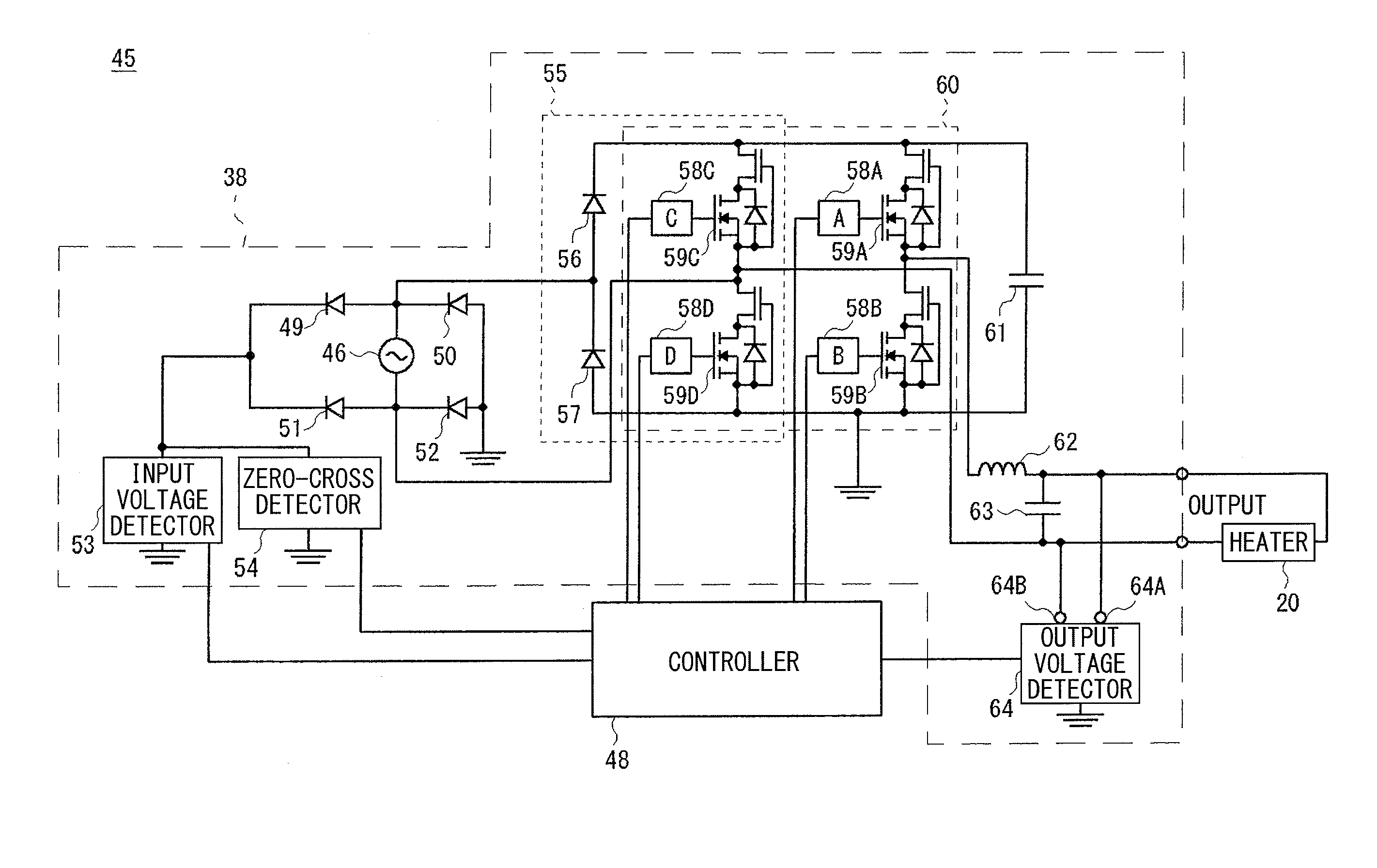

An image forming apparatus includes a power supply voltage detector, a power supply cycle detector, a voltage converter, and a controller. The power supply voltage detector detects a power supply voltage value of a commercial alternating-current voltage. The power supply cycle detector detects a power supply cycle of the commercial alternating-current voltage. The voltage converter performs switching of the commercial alternating-current voltage, and thereby converts the commercial alternating-current voltage into a heater alternating-current voltage to be applied to a heater. The controller controls the voltage converter and thereby generates the heater alternating-current voltage, on a basis of the power supply voltage value detected by the power supply voltage detector and the power supply cycle detected by the power supply cycle detector. The heater alternating-current voltage has an effective value that is stepped down from an effective value of the commercial alternating-current voltage, and is synchronized with the power supply cycle.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G03G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
