Channel sharing for testing circuits having non-identical cores
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Nov 26, 2014
filing date -
Nov 26, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...

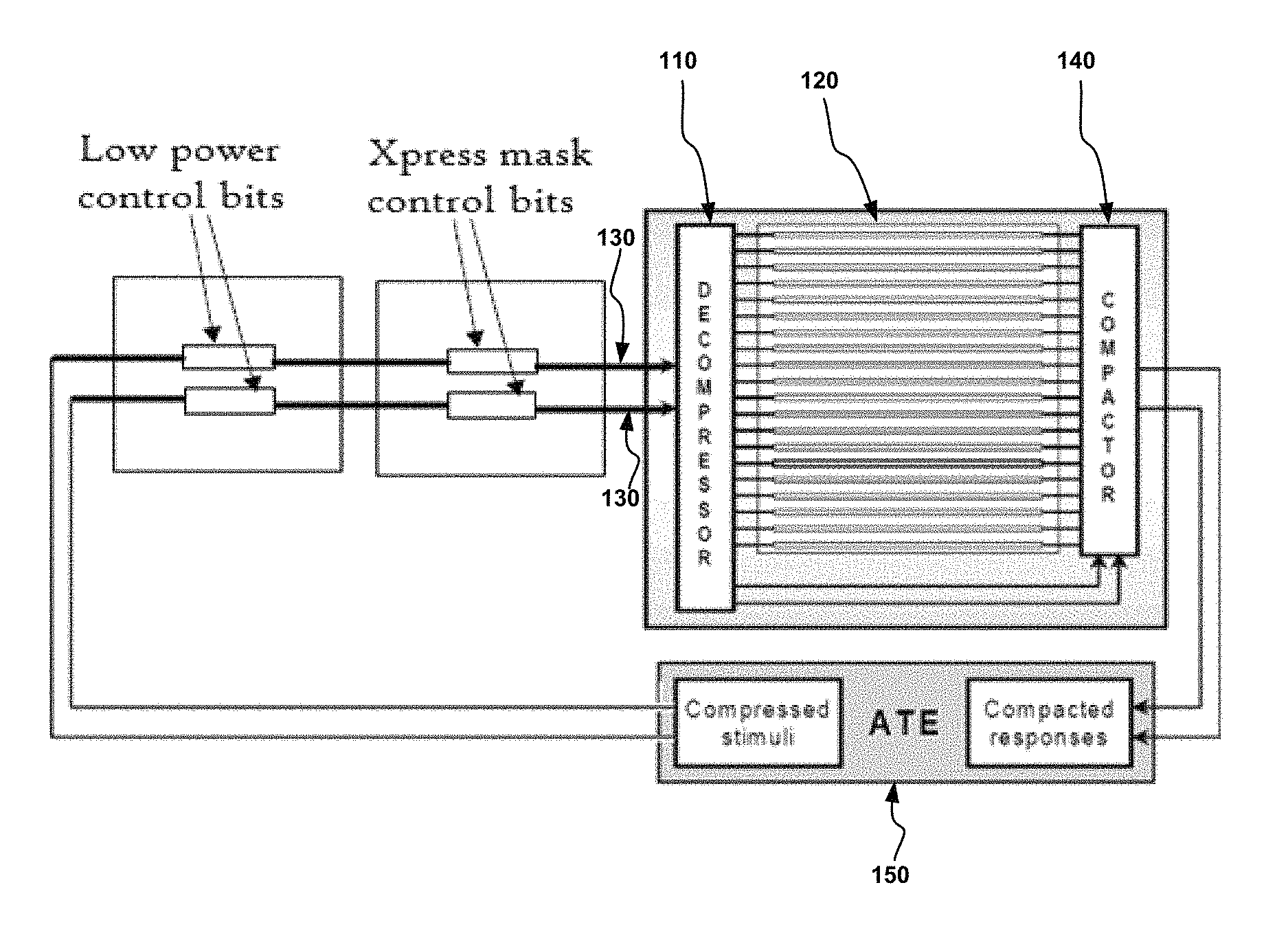

Abstract
Various aspects of the disclosed techniques relate to channel sharing techniques for testing circuits having non-identical cores. Compressed test patterns for a plurality of circuit blocks are generated for channel sharing. Each of the plurality of circuit blocks comprises a decompressor configured to decompress the compressed test patterns. Test data input channels are thus shared by the decompressors. Control data input channels are usually not shared by non-identical circuit blocks in the plurality of circuit blocks.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- G01R Class
- 4836 Applications Filed
- 4099 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01R Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
