Ice tray for ice-making device and method of making ice
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Aug 31, 2015
filing date -
Jun 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

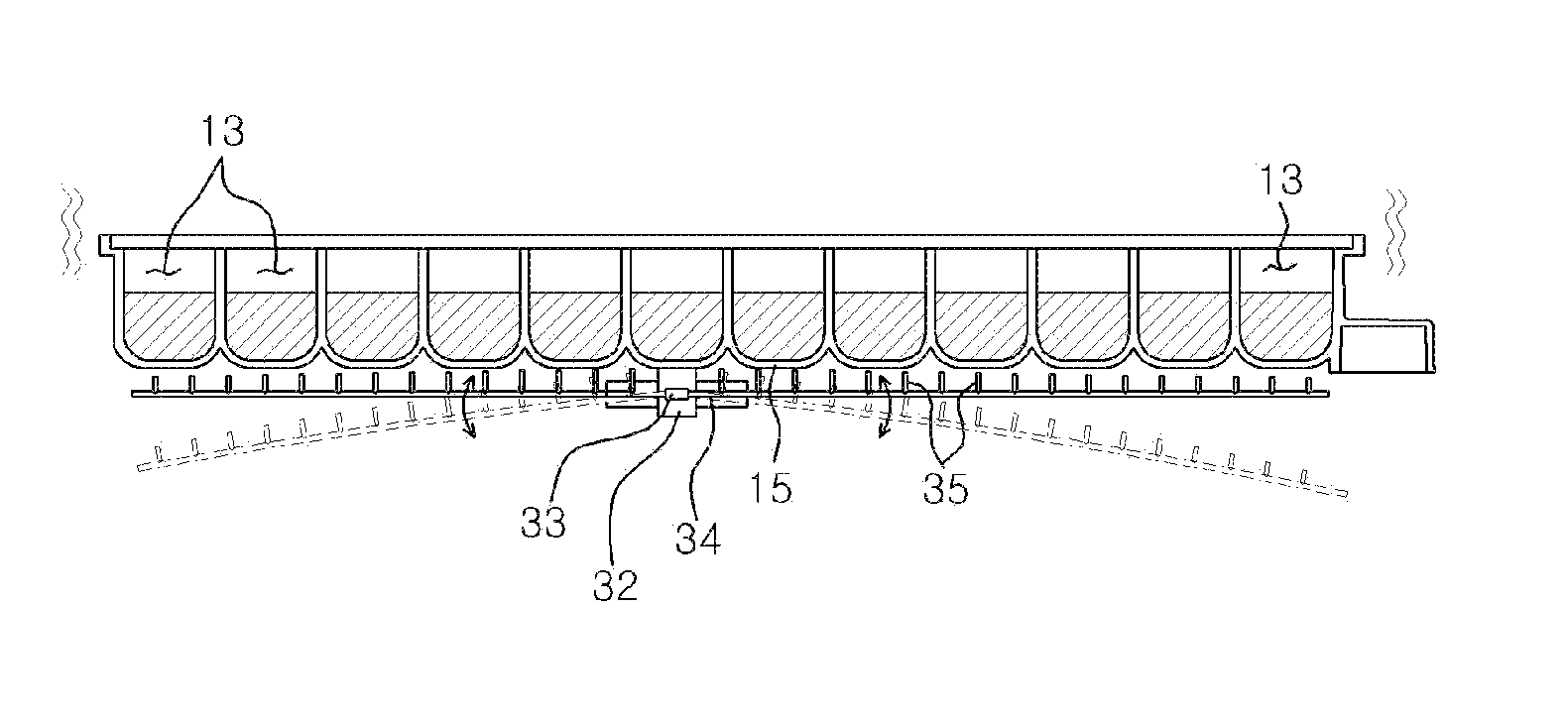

According to an embodiment, an ice tray comprising: a tray body configured to provide ice-making spaces configured to retain water; a plurality of partition walls extending upward from a bottom surface of the tray body to define the ice-making spaces; and a vibration-generating unit configured to vibrate the tray body. The vibration-generating unit can include a vibration-generating member configured to generate vibration and a mounting member configured to mount the vibration-generating member to a lower surface of the tray body.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2015 Application Filing Year
- F25C Class
- 163 Applications Filed
- 126 Patents Issued To-Date
- 77.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F25C Class
- 42.42 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
