Mechanism for discharging sheets in apparatus for processing sheets and apparatus for reading images provided with the mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Dec 16, 2015
filing date -
Dec 25, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

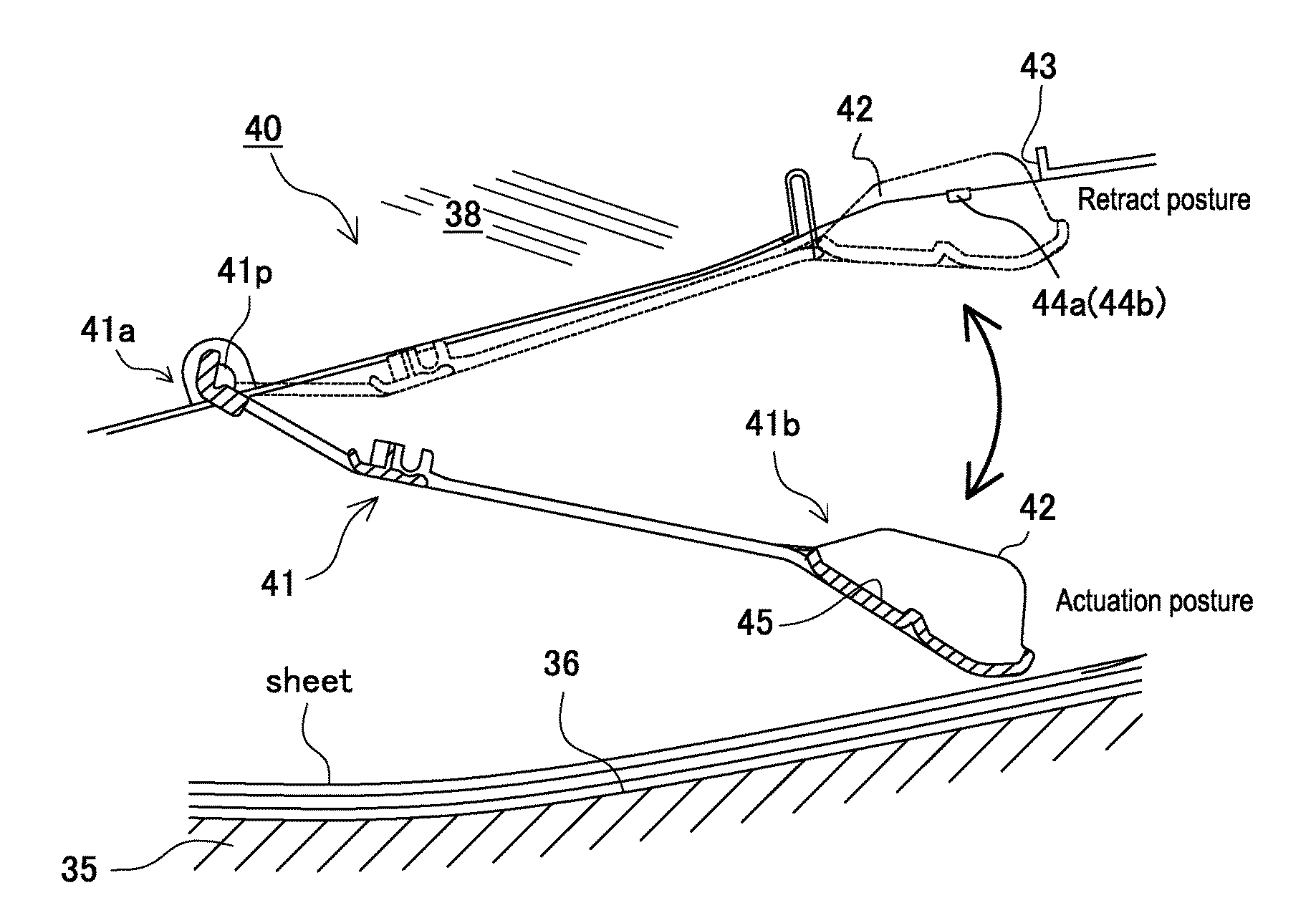

In a sheet discharge mechanism for enabling a wide range of sheets stored on a sheet discharge tray from a processing section, a brake lever for reducing a velocity of a sheet fed from a sheet discharge outlet is held detachably relative to an attachment frame above the sheet discharge tray, and it is possible to select whether brake action is made corresponding to sheet discharge conditions. A sheet discharge mechanism includes a sheet discharge path having a sheet discharge outlet, a sheet discharge tray disposed on the downstream side of the sheet discharge outlet with a level difference, and a brake section of a sheet carried out at the sheet discharge outlet, wherein the brake section includes a lever member in which its base end portion is axially supported by an attachment frame, and its front end portion moves up and down corresponding to a load amount of sheets.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04N Class
- 17427 Applications Filed
- 14242 Patents Issued To-Date
- 81.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
