Separation disc for a centrifugal separator and a method for manufacturing the separation disc
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Aug 7, 2012
filing date -
Aug 10, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

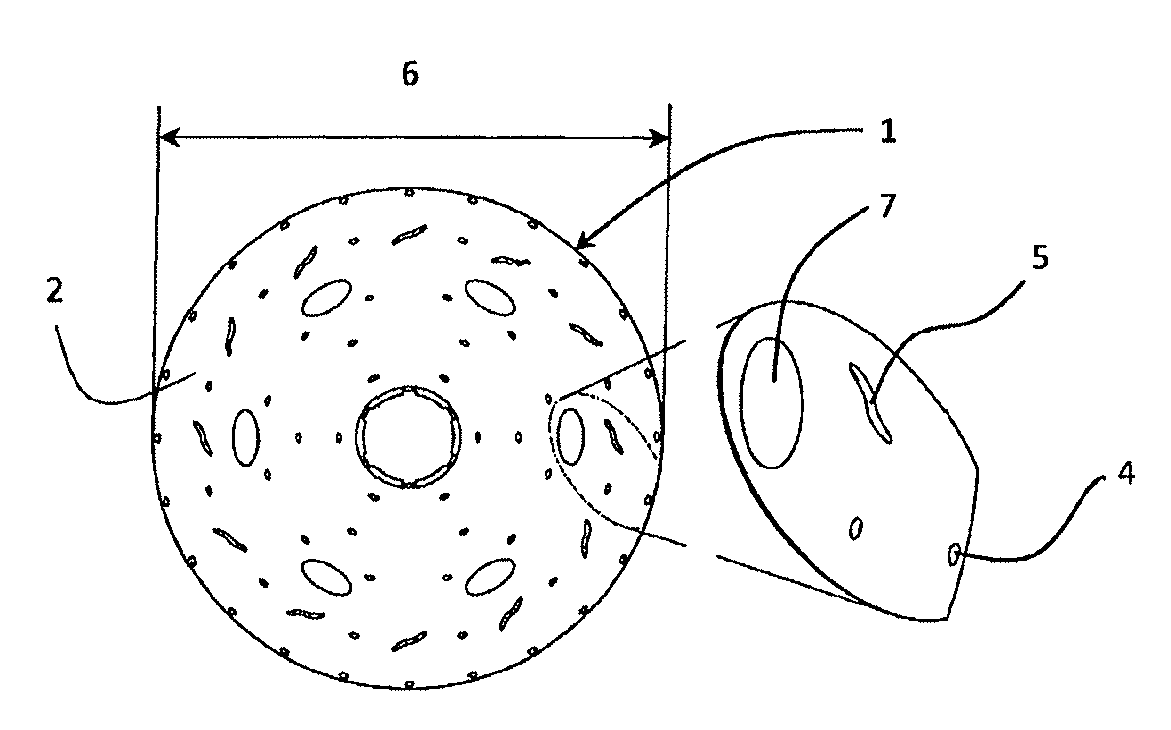

A separation disc for a centrifugal separator and a method for manufacturing the separation disc are disclosed. The separation disc is of metal material and adapted to be compressed in a stack of separation discs inside a centrifugal rotor for separating a liquid mixture. The separation disc has a truncated conical shape with an inner surface and an outer surface and a plurality of spacing members extending a certain height above at least one of the inner surface and the outer surface for providing interspaces between mutually adjacent separation discs in the stack. The spacing members are of such small size that each one of them has a width which is less than 2 mm along the surface of the separation disc. The surface of the separation disc is configured with a distribution pattern of the small-sized spacing members, in such a way as to provide equidistant interspaces in the compressed disc stack.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B04B Class
- 93 Applications Filed
- 79 Patents Issued To-Date
- 84.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B04B Class
- 30.14 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
