Hydraulic system for controlling a jaw crusher
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Apr 26, 2013
filing date -
May 10, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

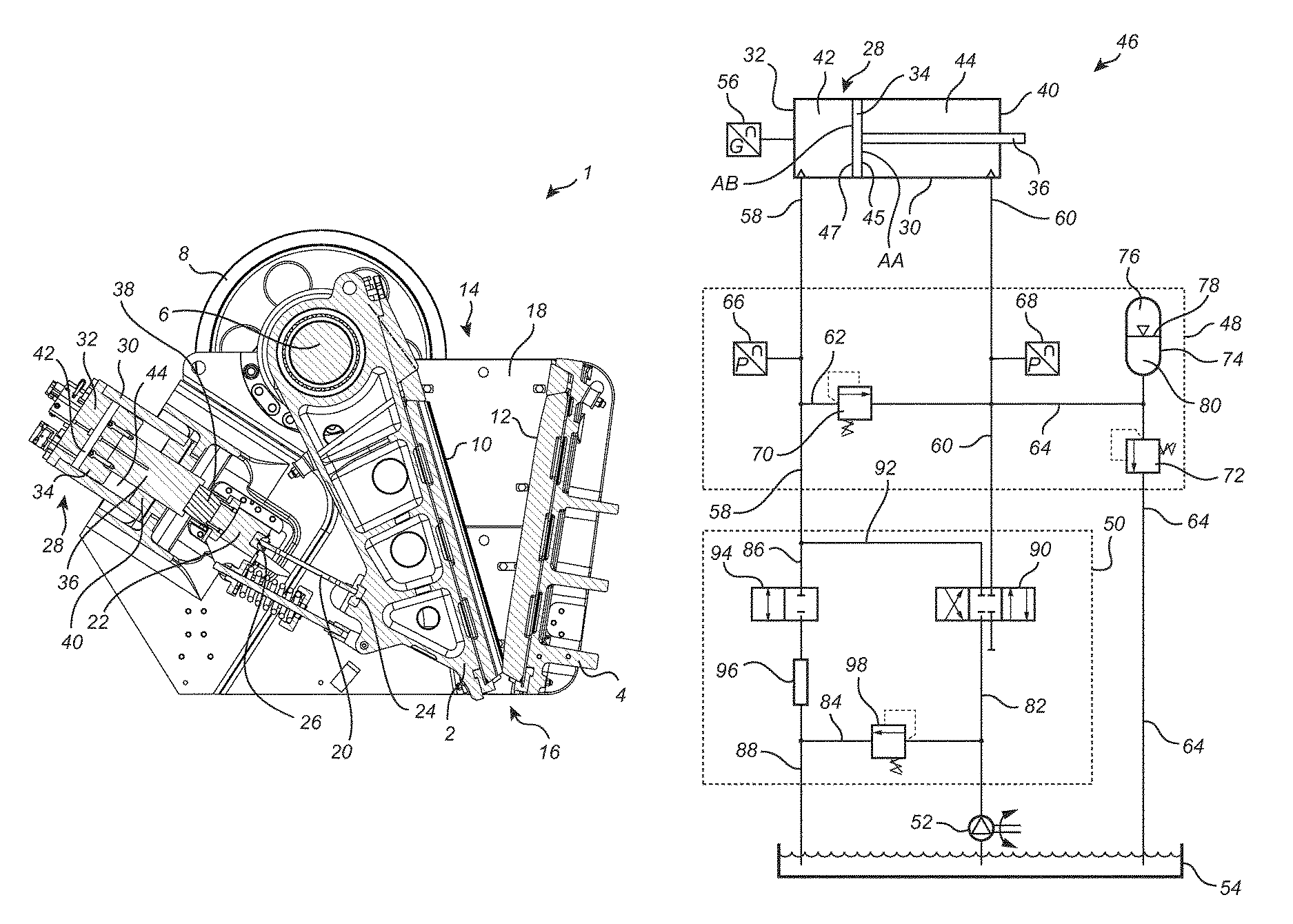

A hydraulic system for controlling the position of a movable jaw of a jaw crusher includes a hydraulic cylinder having a piston with a piston rod for positioning the movable jaw. The hydraulic cylinder has a bore side space for containing a hydraulic fluid taking up crushing forces exerted by the movable jaw on the piston rod, and an annular side space containing a hydraulic fluid pressing the piston against hydraulic fluid of the bore side space. The hydraulic system further includes an annular side space accumulator having a fluid compartment, which is in fluid contact with the annular side space, and a gas compartment containing a pressurized gas applying a pressure on the hydraulic fluid in the annular side space.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B02C Class
- 393 Applications Filed
- 346 Patents Issued To-Date
- 88.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B02C Class
- 44 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
