Integrated waterway assembly of a reverse osmosis water filtration device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Aug 31, 2016
filing date -
Sep 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

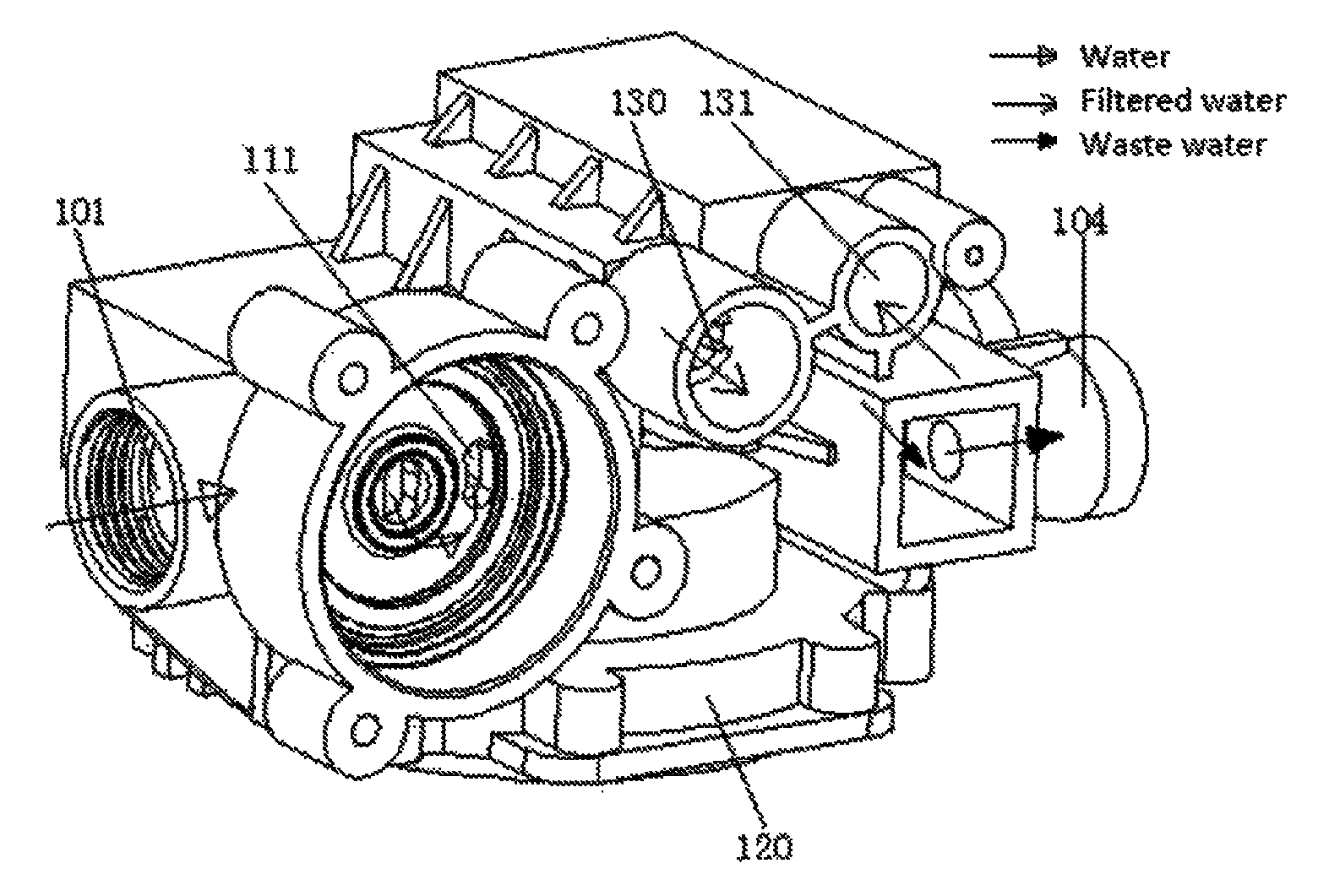

An integrated waterway assembly of a reverse osmosis (RO) water filtration device includes a main body, a shut off valve, a mounting shelf, a top cover, a bottom cover and a fixing ring. Water to be filtered sequentially goes through a water inlet, a shut off valve, a RO cartridge joint and a check valve, and a filtered water outlet on the main body to get the water filtered. The RO cartridge joint on a bottom portion of the main body is connected with a RO cartridge, and water enters the RO cartridge and further flows through the RO cartridge joint to get the water filtered. Given the foregoing structure, the water filtration device is structurally compact and integrated and has less water leakage.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C02F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
