Filter element and filter system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Aug 31, 2015
filing date -
Aug 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

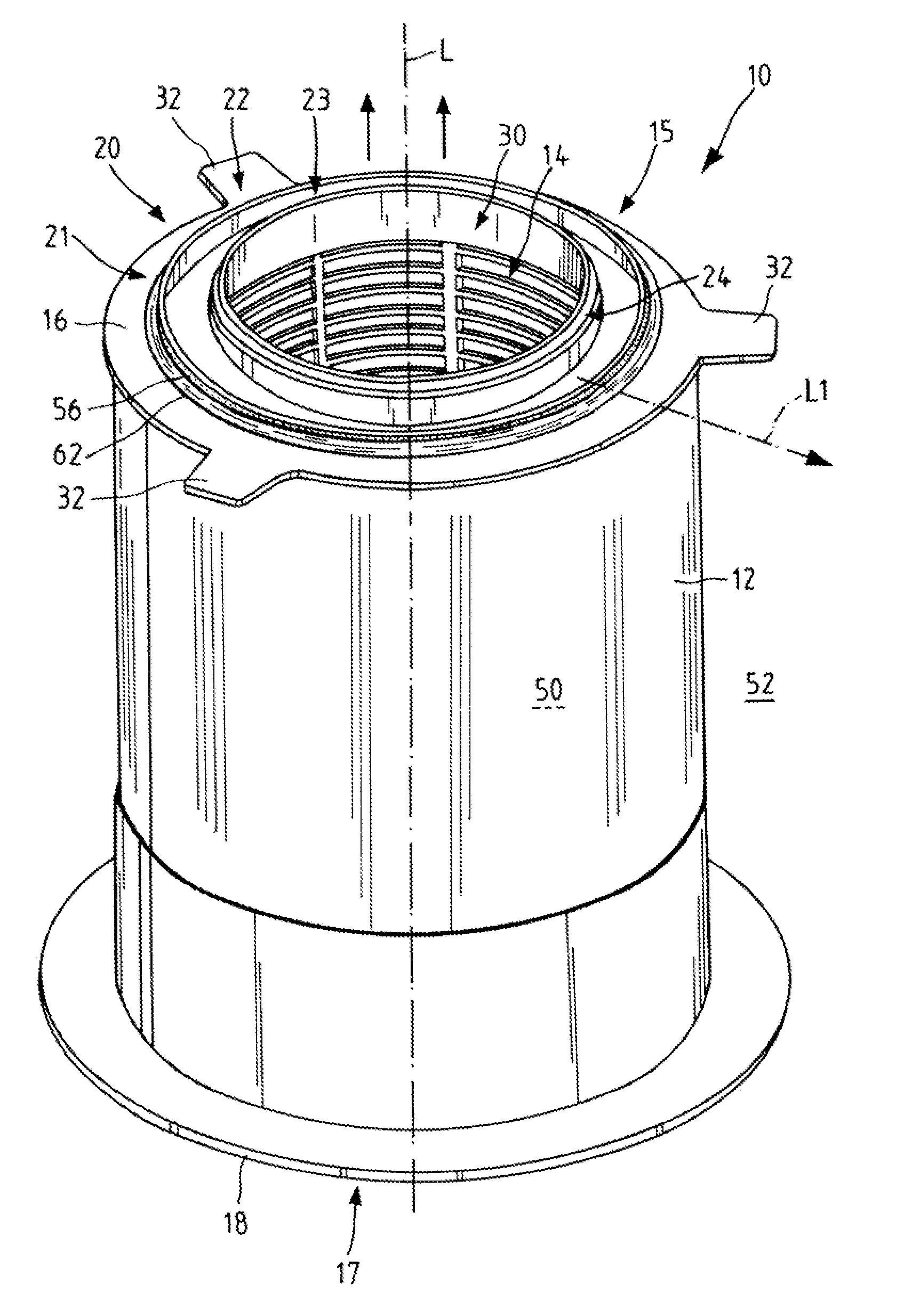

The invention relates to a filter element (10), comprising a filter body (12) having a longitudinal axis (L) arranged between a clean side (50) and a crude side (52) of the filter element, as well as comprising at least one first end disk (16) arranged on an end face (15) of the filter body (12). The end disk (16) has a sealing arrangement (22) for forming a seal between the clean side (50) and the crude side (52). In addition, the sealing arrangement (22) has a sealing region (23) that forms a radial seal and a separate holding region (20) arranged concentrically with the sealing region (23) and acts as a radial floating bearing. The invention also relates to a filter system (100) for replaceable installation of such a filter element (10).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F02M Class
- 1517 Applications Filed
- 1207 Patents Issued To-Date
- 79.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 21.60 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
