Golf club head

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9914027
SERIAL NO

15087002

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

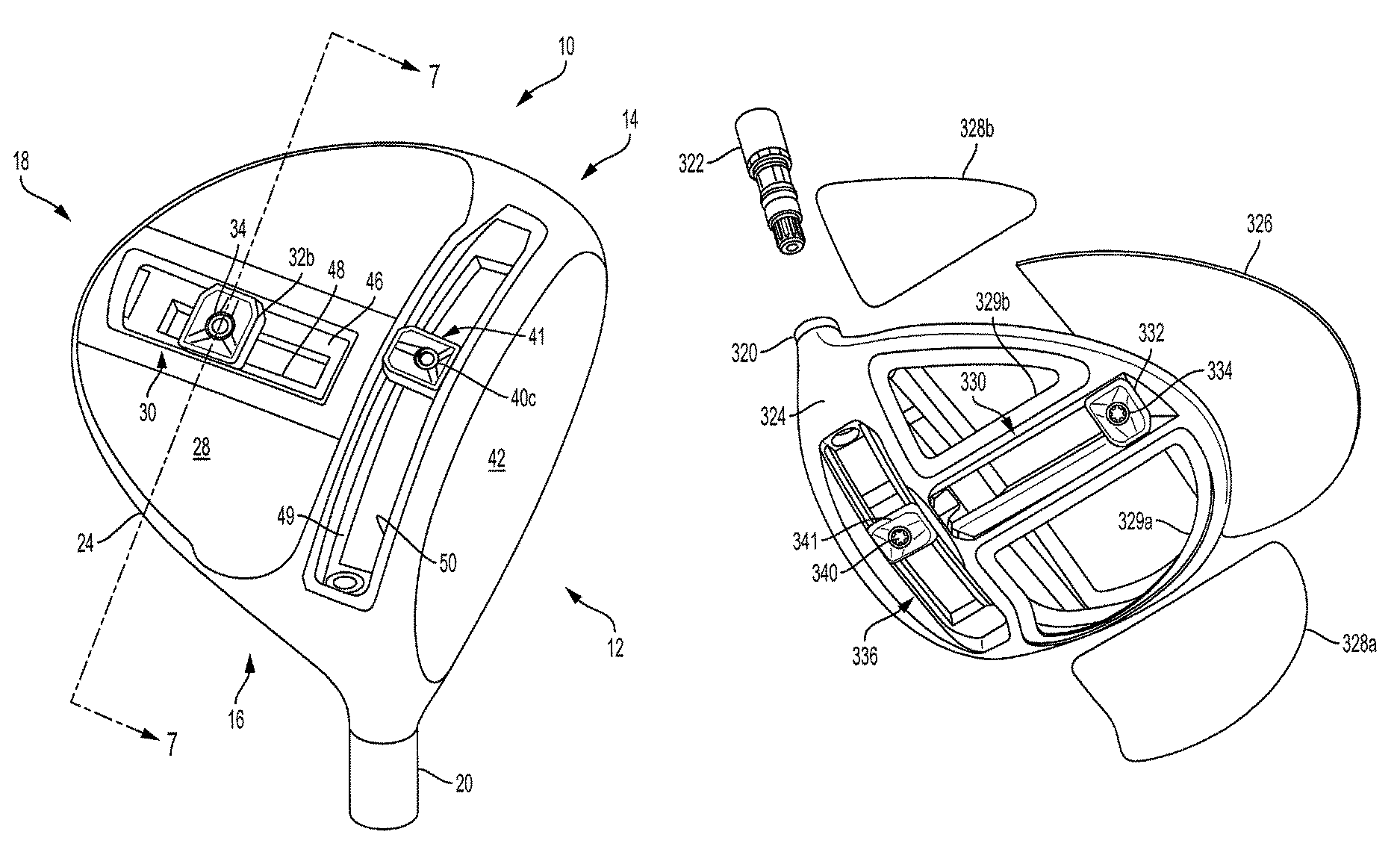

A golf club head includes a metal frame having a sole opening, a composite laminate crown joined to the frame, a composite laminate sole insert joined to the frame and overlying the sole opening, and a thermoplastic composite component overmolded on the sole insert. The composite component may include a weight track, ribs, supports or other features. A method of making the golf club includes the steps of forming a frame having a sole opening, forming a composite laminate sole insert, forming a composite laminate crown insert, injection molding a thermoplastic composite head component over the sole insert to create a sole insert unit, and joining the sole insert unit and crown insert to the frame.
