Square baler providing side-to-side bale uniformity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Dec 14, 2015
filing date -
Dec 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

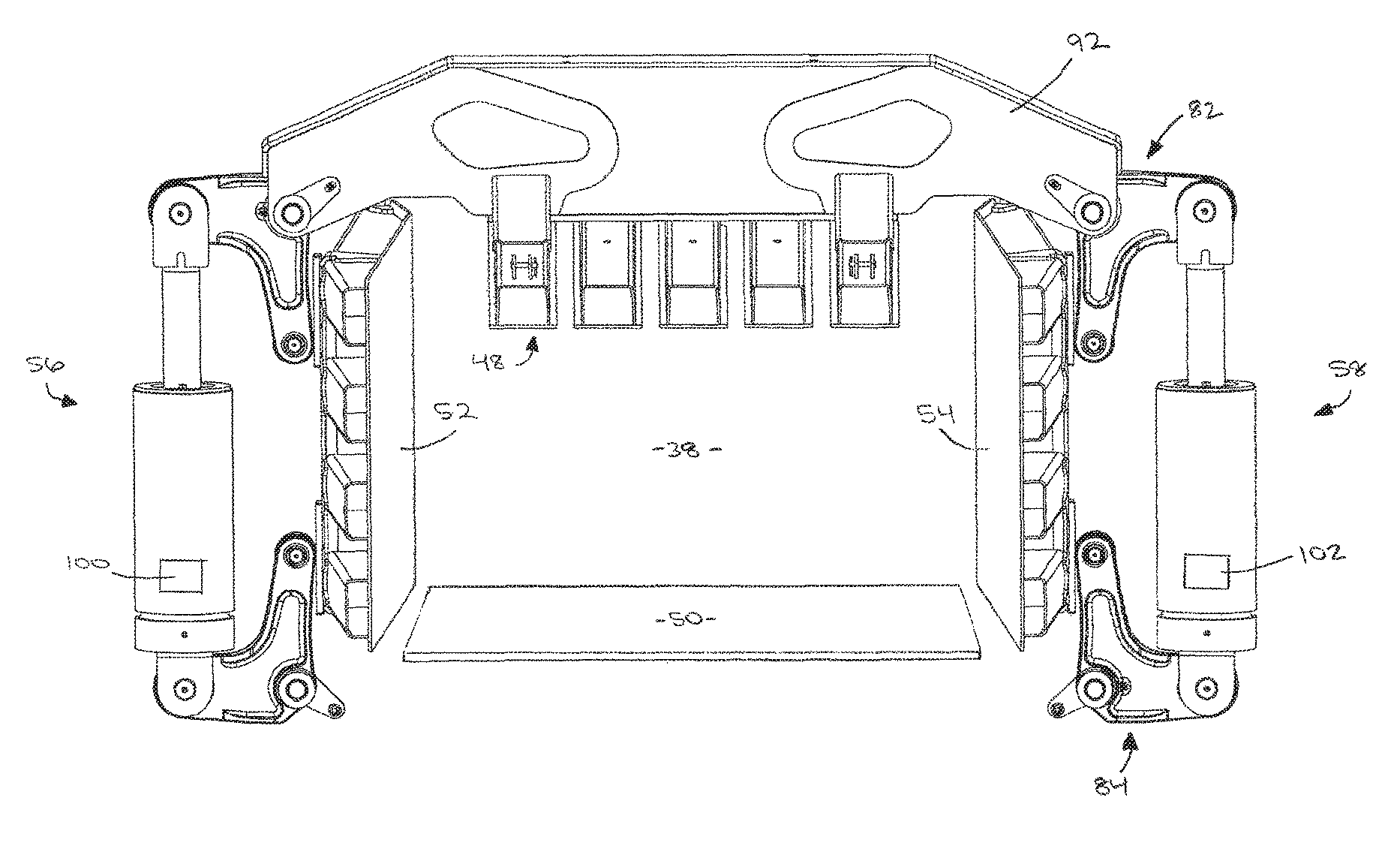

A baling system for baling crop material includes a baling chamber. Moveable doors partly define the chamber and the shape of the bale. Hydraulic tension cylinders extend and retract to apply a force to the moveable doors and the growing bale, and transducers measure the lengths of the tension cylinders. An electronic control unit receives the lengths from the transducers, and communicates via a display at least a relative difference between the lengths for consideration in steering the baling system. In particular, the lengths being equal indicates the growing bale is substantially straight and the baling system should be steered straight, and the lengths being unequal indicates the growing bale is developing a curvature and the baling system should be steered in the direction of the cylinder having the shorter length. The transducers may be located external or internal to the cylinders, and may measure the lengths continuously or periodically.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A01F Class
- 200 Applications Filed
- 167 Patents Issued To-Date
- 83.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A01F Class
- 24.59 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
