Lighting control system and method with battery powered control devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Dec 12, 2016
filing date -
Dec 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

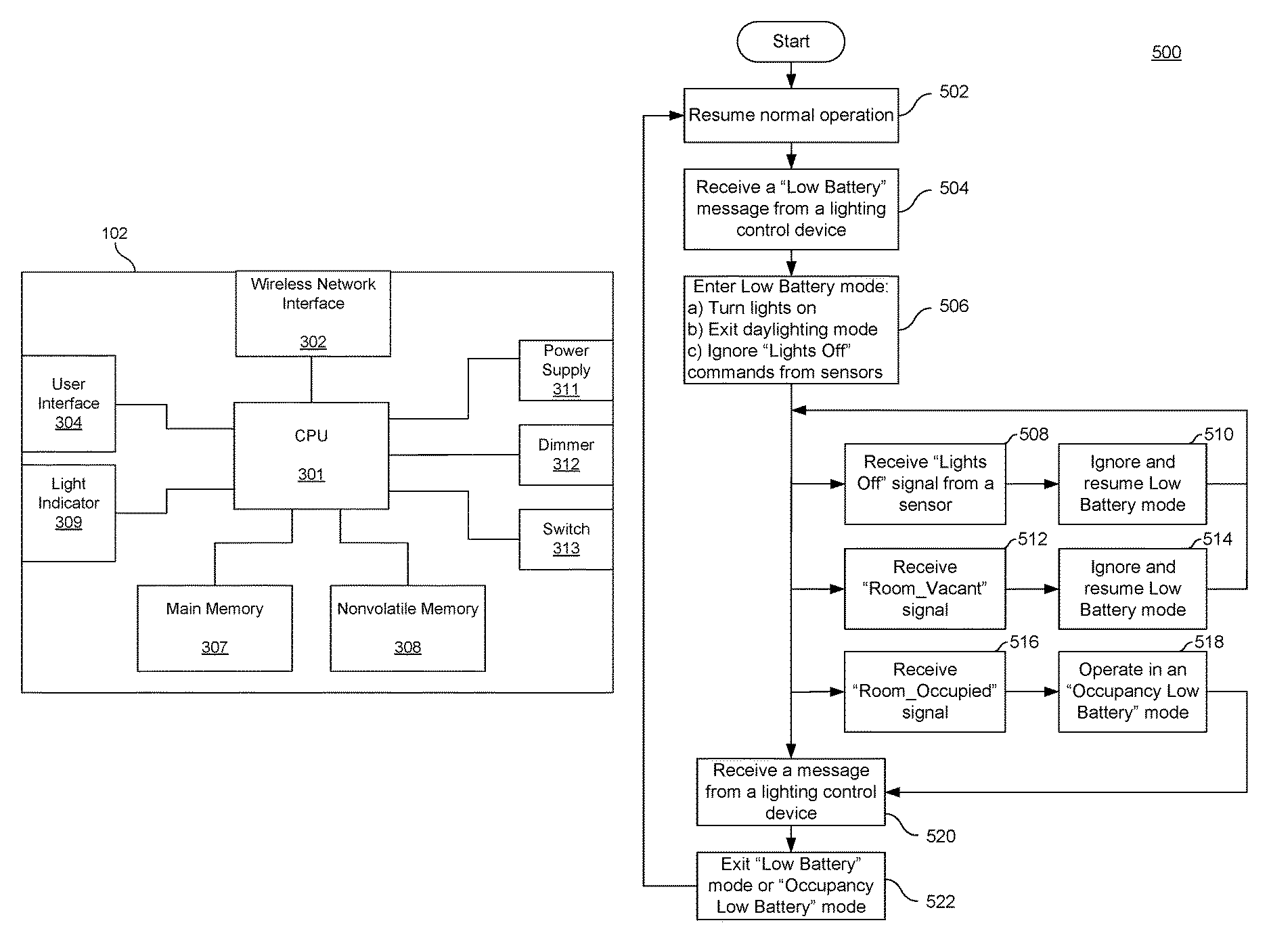

A lighting control system for operating lighting in a room is provided. The lighting control system may comprise a load controller, sensors, and battery powered lighting control devices, such as switches, dimmers, and/or keypads. The load controller is configured for controlling the operation of a lighting load in response to messages received from the lighting control devices and sensors over a wireless network. The battery operated lighting control device is configured for detecting a low battery level, transmitting a low battery message to the load controller, and entering into a low battery mode during which it ceases transmitting any messages to the load controller until the battery is replaced. In response to the low battery message received from at least one lighting control device, the load controller is configured for entering into a low battery mode during which it maintains the lighting load turned on. The load controller is configured for exiting the low battery mode and resuming normal operation upon receipt of a subsequent message from the at least one lighting control device.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- H04L Class
- 37326 Applications Filed
- 27972 Patents Issued To-Date
- 74.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04L Class
- 17.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
