Sub-channel allocation in orthogonal frequency division multiplex WLAN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jun 12, 2015
filing date -
Jun 12, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance

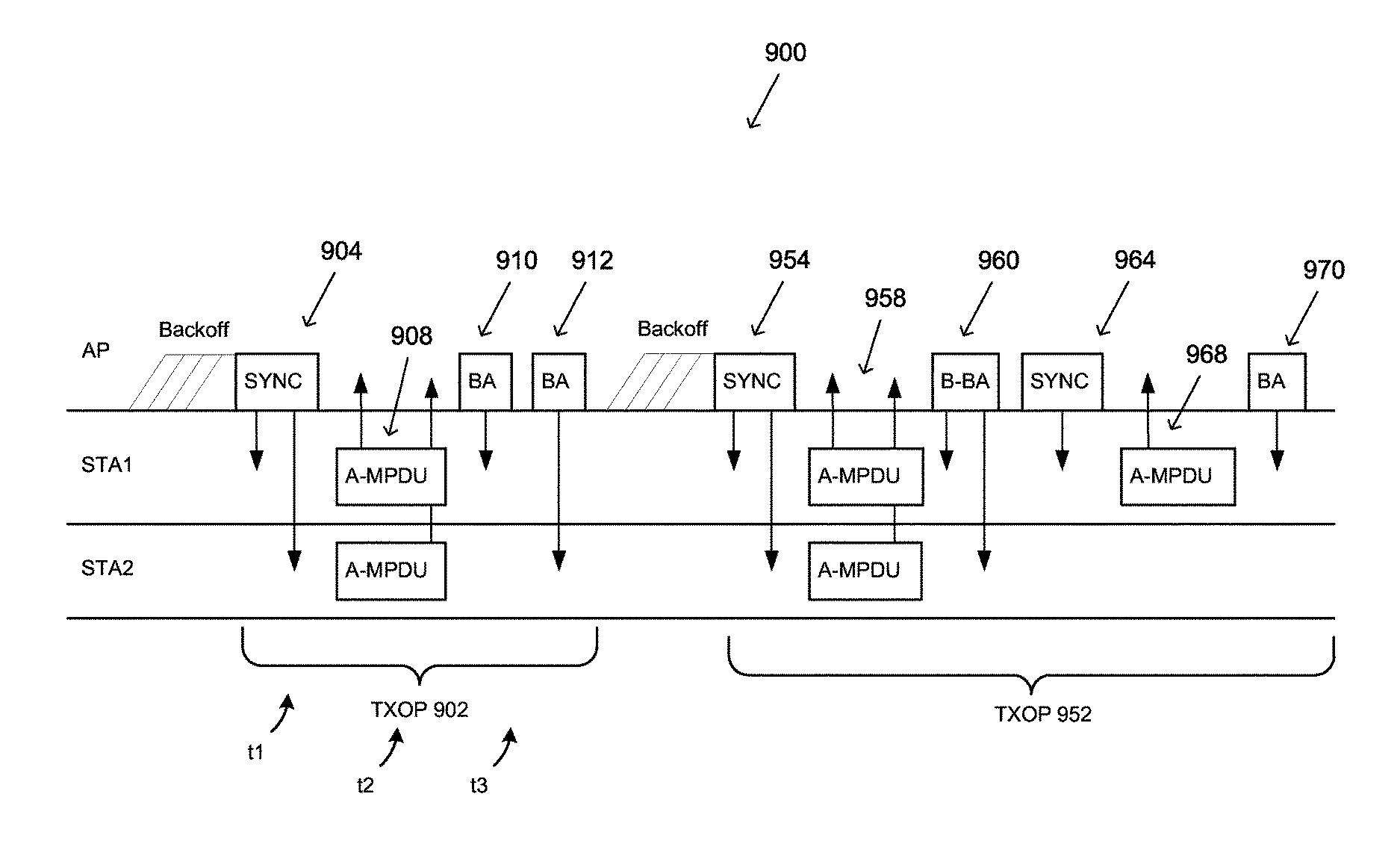

Abstract
A method for simultaneous communication with multiple communication devices in a wireless local area network is described. Respective sub-channels of an orthogonal frequency division multiplexing (OFDM) communication channel are allocated to two or more second communication devices for simultaneous OFDM transmission to the two or more second communication devices, including allocating first and second sub-channels to first and second ones of the two or more second communication devices, respectively. Respective downlink OFDM data units are generated using the corresponding allocated sub-channels. The downlink OFDM data units are transmitted using the corresponding allocated sub-channels. At least first and second uplink OFDM data units transmitted by the respective second communication device in response to the corresponding downlink OFDM data unit are received. The first and second uplink OFDM data units are transmitted from the respective second communication device via the corresponding allocated sub-channel.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
