Flash analog-to-digital converter calibration
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Dec 5, 2016
filing date -
Dec 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

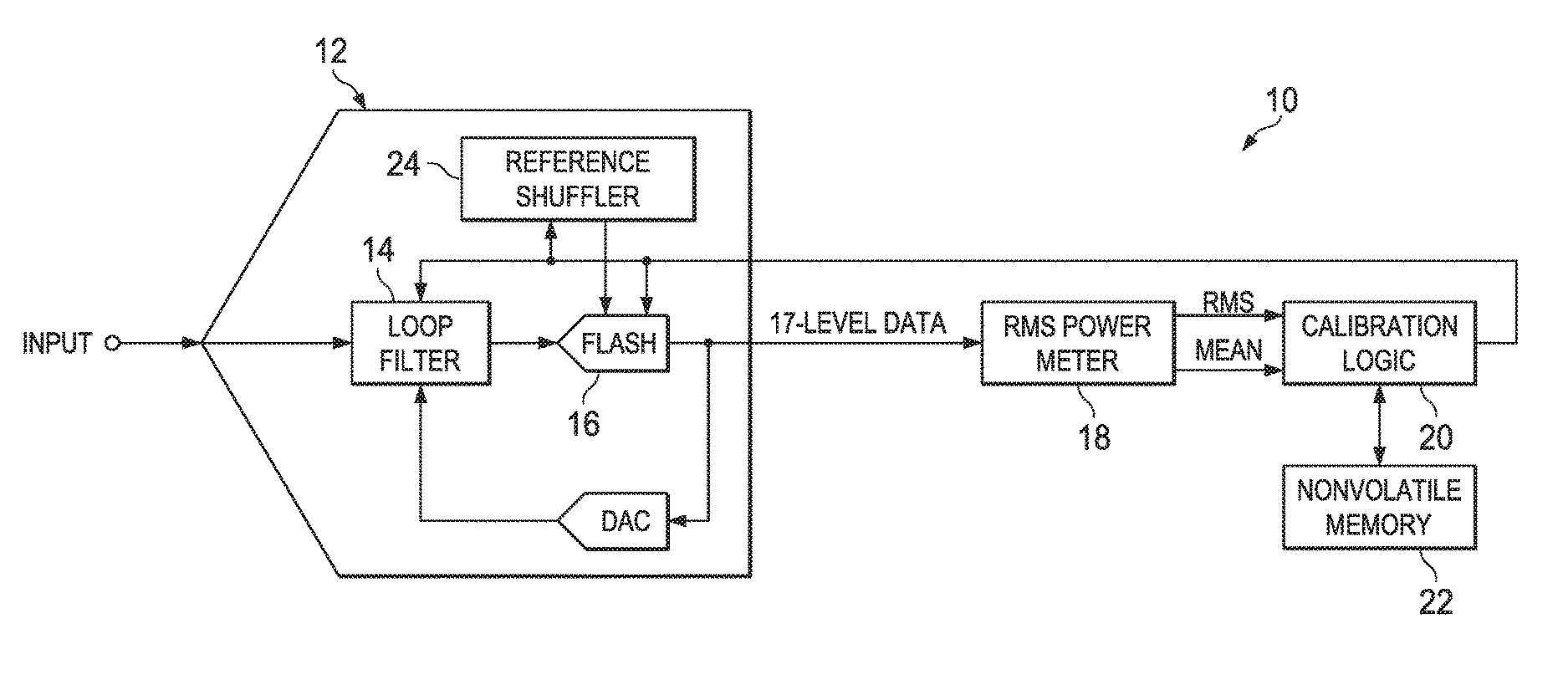

An analog-to-digital converter (ADC) is a device that can include a reference shuffler and a loop filter. An ADC can achieve better performance with incremental adjustment of a pointer of the reference shuffler, changing coefficients of the loop filter, and storing calibration codes of the ADC in a non-volatile memory. By incrementally adjusting a pointer of the reference shuffler, a calibration can be performed more efficiently than with a random adjustment of the pointer. By temporarily changing the loop filter coefficients, a greater amount of activity can be introduced into the loop filter. This activity can allow the calibration to proceed more efficiently. By storing the calibration codes in a non-volatile memory, a search space for calibration codes can be reduced. Thus, a calibration can occur more quickly, and the calibration itself can be improved.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
