Systems and methods related to linear load modulated power amplifiers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jul 13, 2015
filing date -
May 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

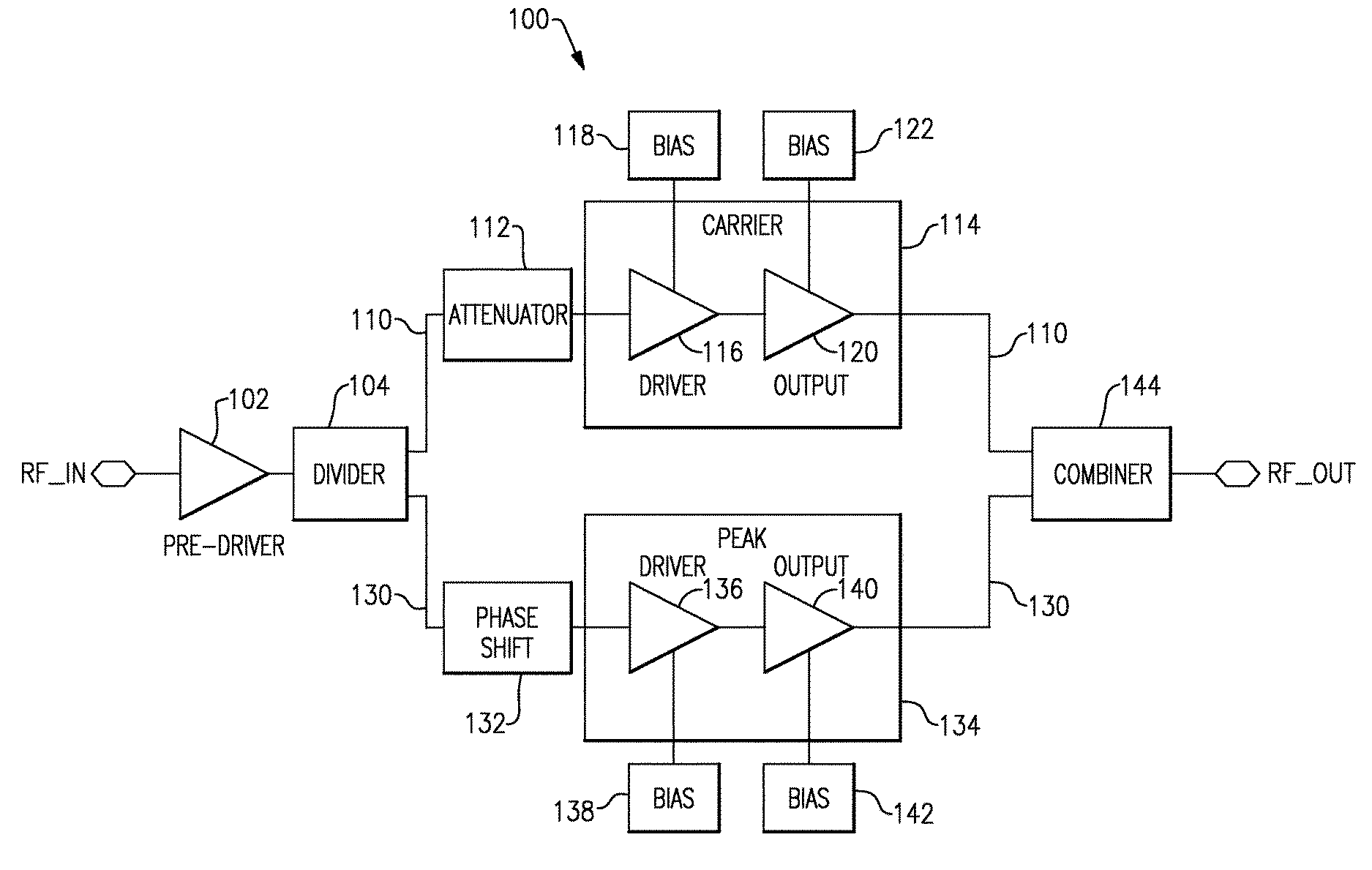

Systems and methods related to linear load modulated power amplifiers. A power amplifier (PA) system can include an input circuit configured to receive a radio-frequency (RF) signal and split the RF signal into a first portion and a second portion. The PA system can further include a Doherty amplifier circuit including a carrier amplifier coupled to the input circuit to receive the first portion and a peaking amplifier coupled to the input circuit to receive the second portion. The first portion and the second portion can have different phases and/or different powers. The PA system can further include an output circuit coupled to the Doherty amplifier circuit. The output circuit can be configured to combine outputs of the carrier amplifier and the peaking amplifier to yield an amplified RF signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H03F Class
- 1049 Applications Filed
- 949 Patents Issued To-Date
- 90.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- H03F Class
- 20.80 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
