System and method for limiting vibration of electric motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jun 30, 2016
filing date -
Jul 13, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

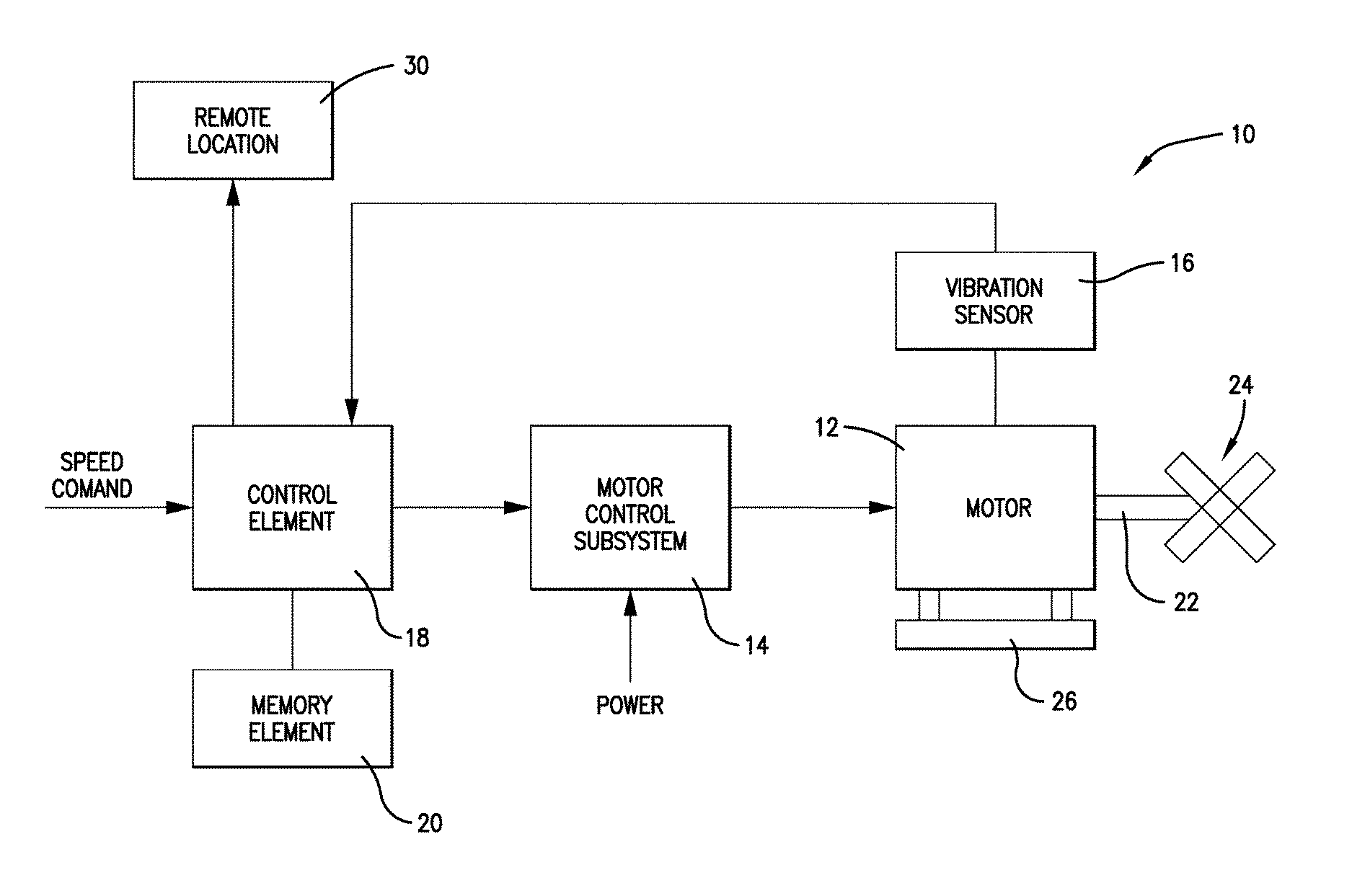

A system and method for limiting the vibration of an electric motor so as to avoid situations in which extreme vibration may result in damage to the motor or other equipment. A motor control subsystem runs the motor in accordance with a command specifying a speed or torque. A vibration sensor, such as a three-axis accelerometer, senses a vibration of the electric motor, or, alternatively, software indirectly detects the vibration based on phase or torque ripple. Such vibration may be caused by, e.g., a broken fan blade or an accumulation of snow or ice. A control element receives data regarding the vibration, determines whether the vibration exceeds a pre-determined limit, and if so, takes action to reduce the vibration of the electric motor below the pre-determined limit. Such action may involve slowing or stopping the motor, thereby avoiding damage, increasing reliability, and reducing cost.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
