Full bridge tunnel diode inverter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Dec 3, 2015
filing date -
Dec 3, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

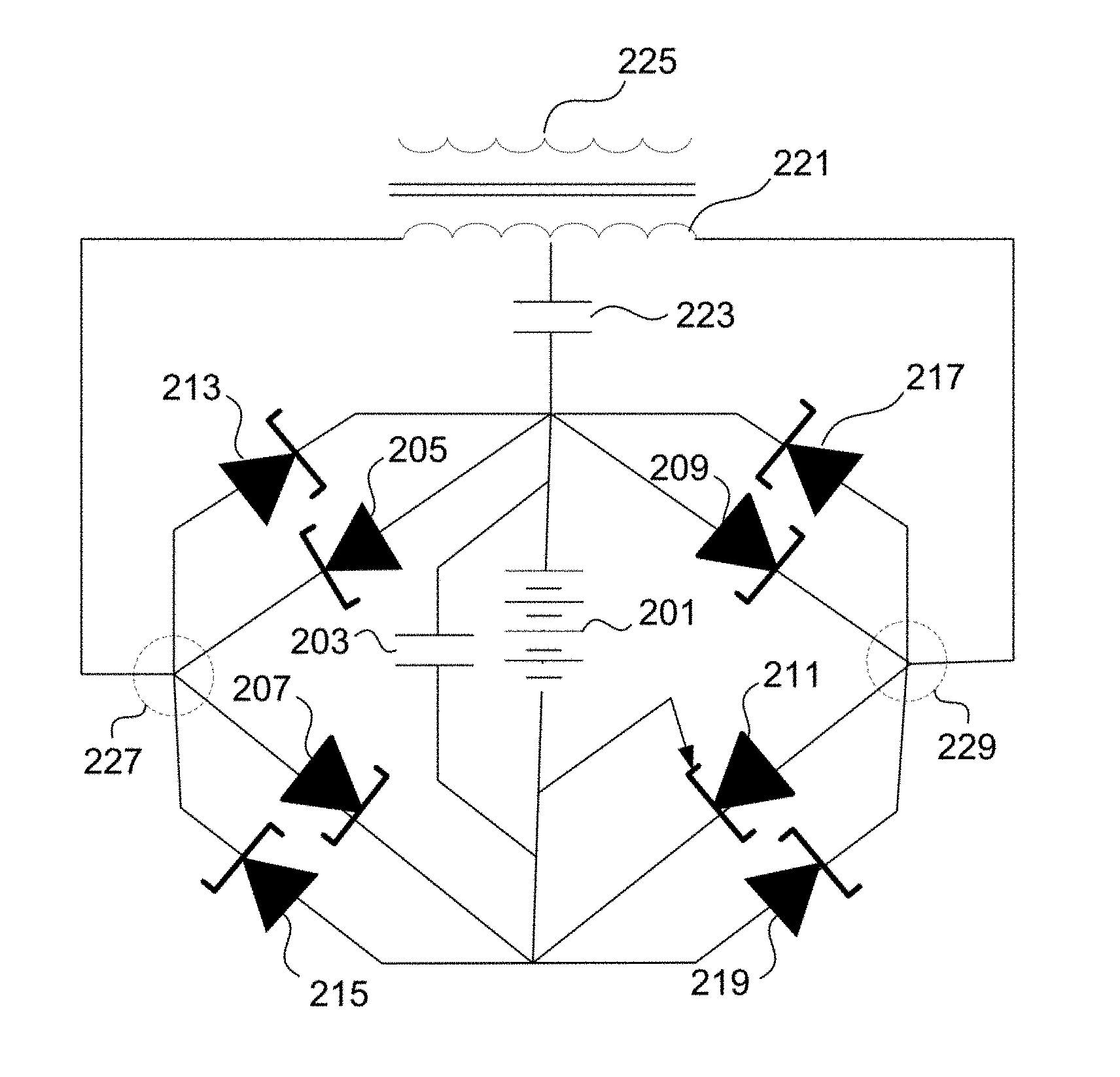

Systems and methods for electrical power conversion include the provision of a full-bridge tunnel diode inverter topology which provides a balanced push-pull drive voltage and current across the entire transformer primary. Moreover, the full-bridge tunnel diode inverter may avoid operating its tunnel diodes in a high-current/high-voltage state at light loads, unlike a single-diode inverter. The disclosed principles also allow a full-bridge tunnel diode inverter topology that may avoid RF chirps in the tunnel diodes during rising or falling device ramp currents since the primary current passes through two tunnel diodes in series.
