Power receiving device and power feeding system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Dec 10, 2013
filing date -
Dec 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

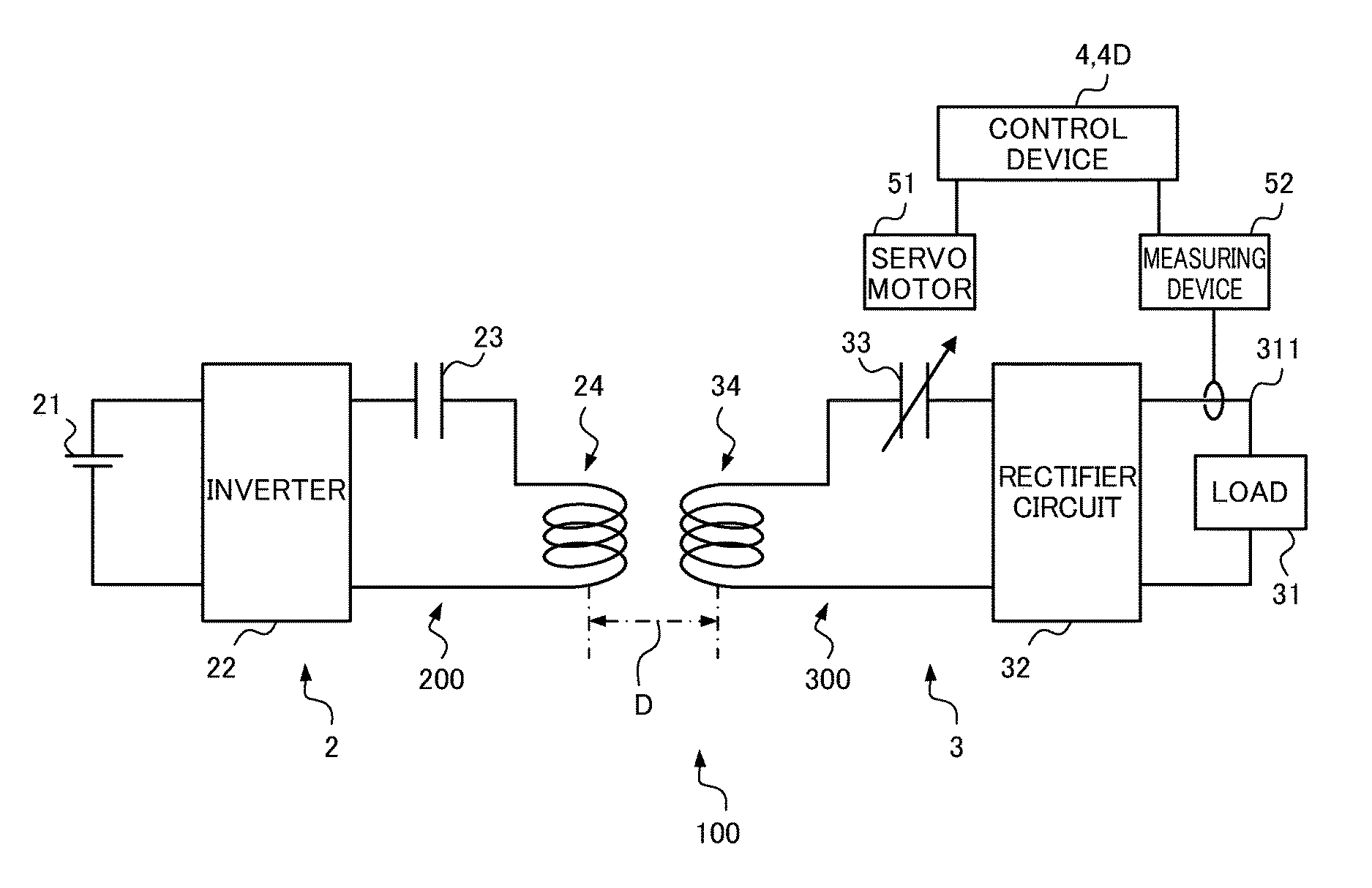

A power receiving device that receives electric power output from a power transmission device includes a primary side coil and supplies electric power to a load according to the electric power. The power receiving device includes: an adjusting device that adjusts a value of a third current to be a predetermined value, the third current is generated from the second current and supplied to the load; a detecting device that detects the third current; and a variable capacitor coupled between the secondary side coil and the load. The variable capacitor ensures a changeable capacitance value. The adjusting device performs an adjustment based on a detection result by the detecting device. The variable capacitor is coupled in series with the secondary side coil and the load. The adjusting device includes a first adjusting device that increases the capacitance value and a second adjusting device that decreases the capacitance value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H02J Class
- 3206 Applications Filed
- 2881 Patents Issued To-Date
- 89.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02J Class
- 22.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
