Method and apparatus for optimal antenna alignment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jul 30, 2014
filing date -
Jul 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

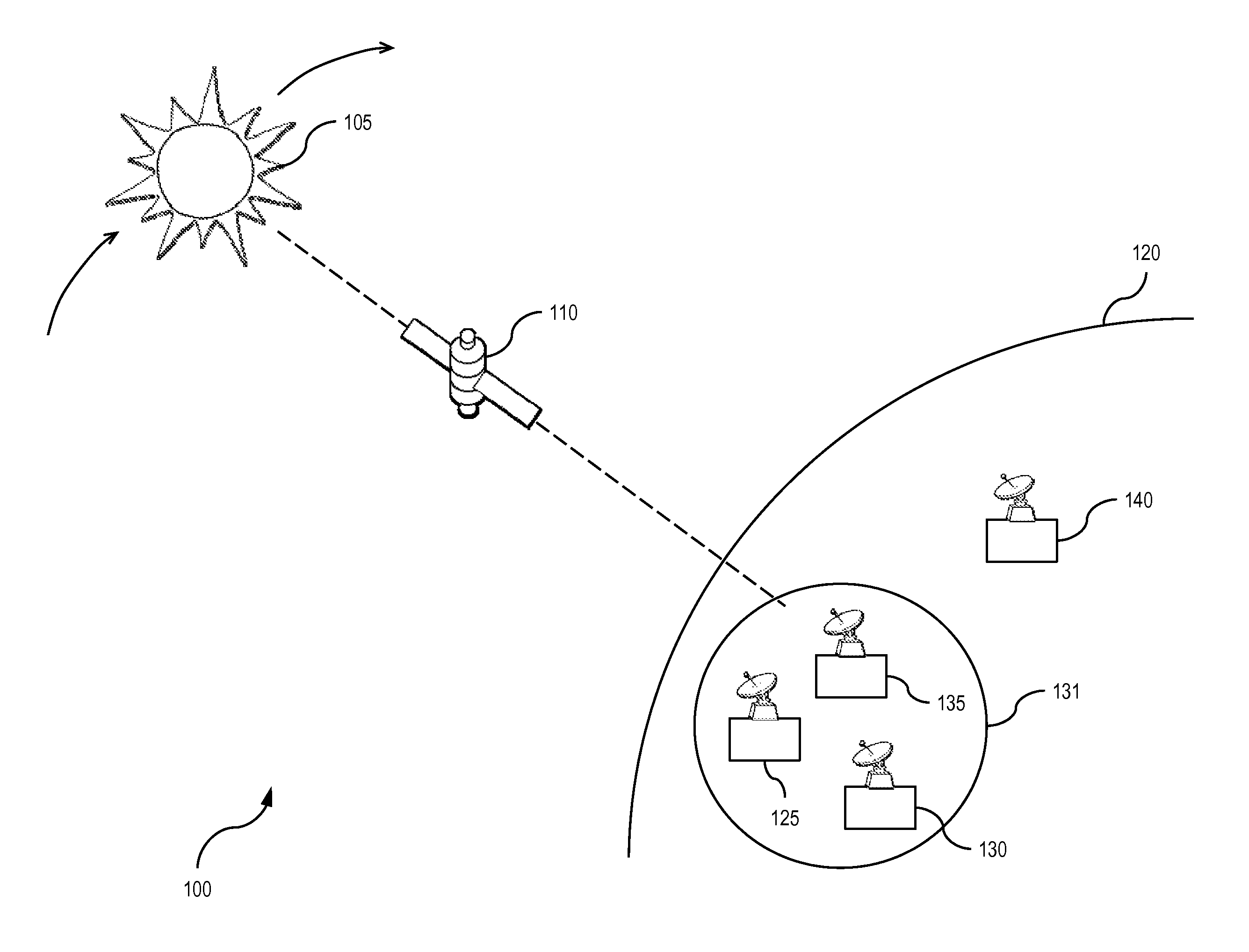

An approach for determining remote terminal antenna alignment in a satellite communications system is provided. A point in time for an expected conjunction of an a remote terminal antenna, a satellite in communication with the remote terminal and the Sun is determined based on predetermined positional data. An interference level imposed by the Sun on communication signals between the antenna and the satellite is measured at a number of respective points in time. A one of the points in time is determined when the interference is at a peak level. Then information regarding alignment of the antenna with respect to the satellite is determined, wherein the determination of the antenna alignment information is based on a comparison between the one point in time of the peak interference level and the expected point in time of the conjunction of the antenna, the satellite and the Sun.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01Q Class
- 17.89 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
