Method for controlling an interaction between droplet targets and a laser and apparatus for conducting said method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jul 5, 2013
filing date -
Jul 6, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

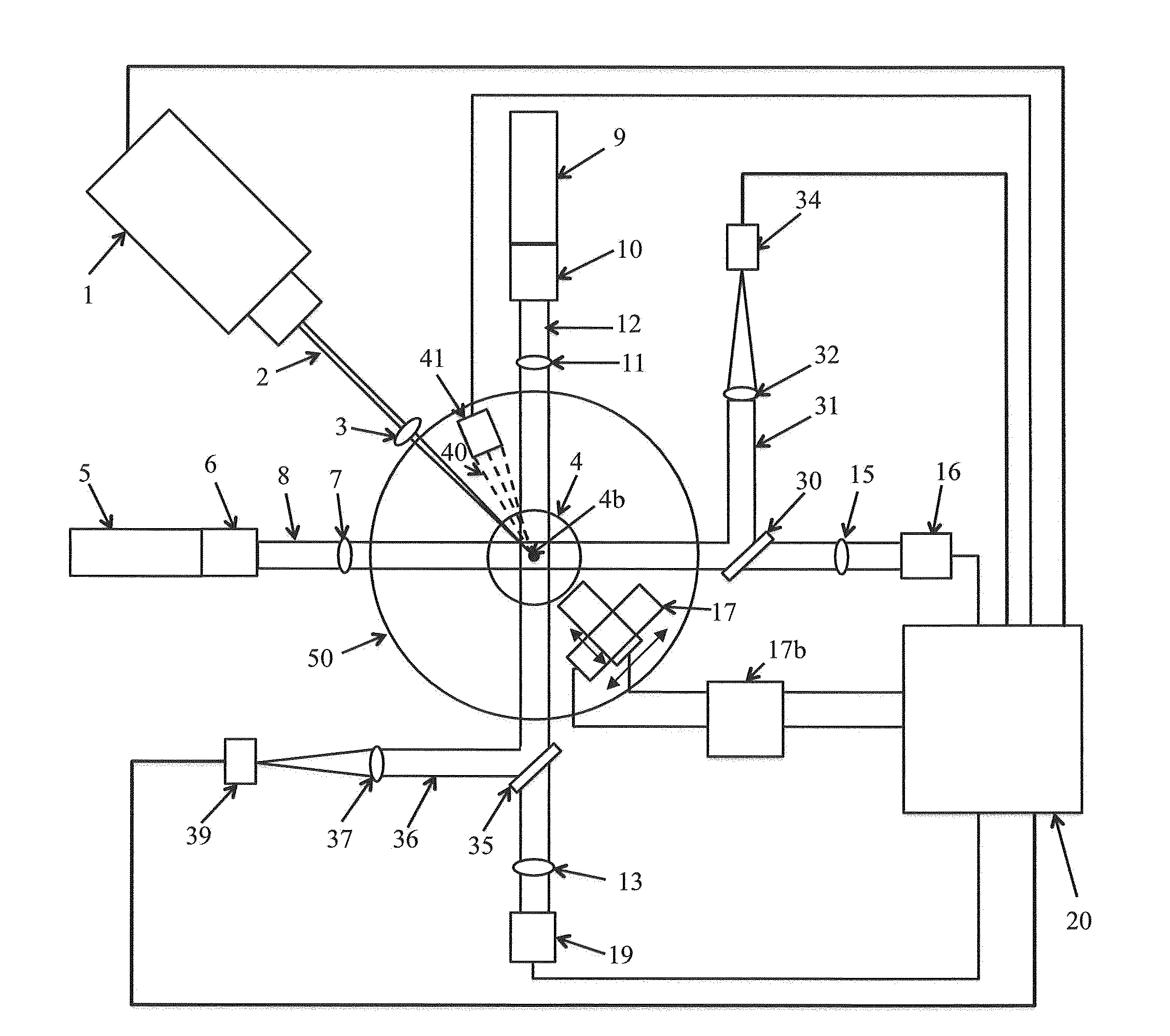

A method for controlling an interaction between droplet targets and a high power and high-repetition-rate laser beam at a laser focus position of the laser beam including providing a droplet generator for generating a train of droplets as a droplet target with a predetermined droplet frequency and velocity in a predetermined direction; providing a high power, high-repetition-rate laser for emitting a pulsed laser beam, which is focused in the laser focus position; aligning the droplet generator such that the train of droplets runs through the laser focus position; generating a train of droplets as a droplet target; and emitting a pulsed laser beam in synchronization with the train of droplets, such that the droplet target interacts with the pulsed laser beam at the laser focus position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H01J Class
- 2042 Applications Filed
- 1790 Patents Issued To-Date
- 87.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
