Control device operating portion having a veneer with backlit indicia
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Sep 10, 2015
filing date -
Sep 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

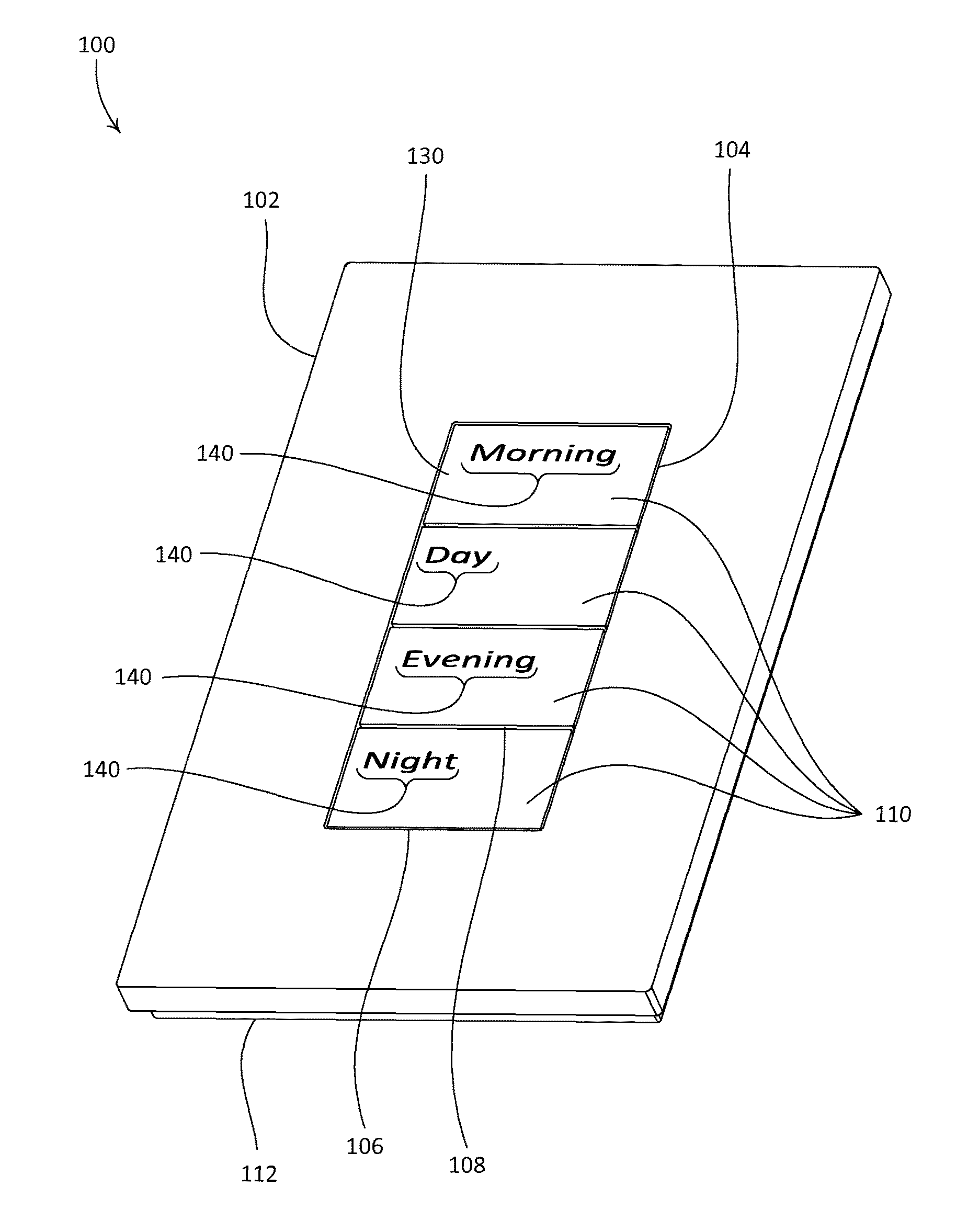

A backlit operating portion of a control device includes a veneer having indicia defining an open portion exposing a backlit component, a floating portion, and one or more ribs that suspend the floating portion. The rib defines an upper surface recessed relative to a front surface of the veneer, and opposed sides that extend from a base of the rib to the upper surface, such opposed sides tapered between the base and the upper surface, such that the upper surface is narrower than the base.
