Security element for value documents
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Apr 4, 2014
filing date -
Apr 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

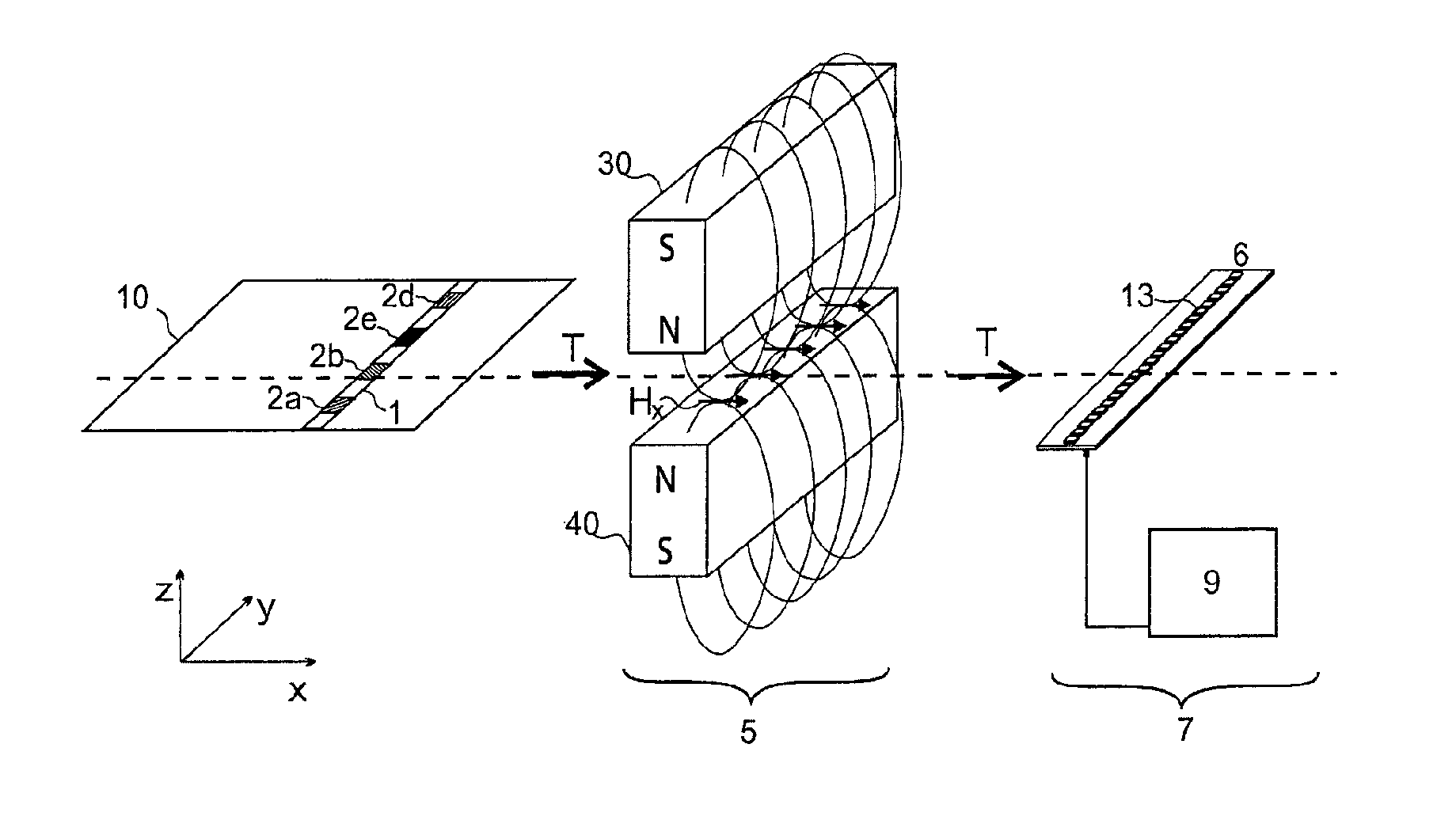

The invention concerns a security element having a magnetic coding consisting of magnetic coding elements. At least one of the magnetic coding elements has a grid-shaped magnetic region which is formed by a plurality of mutually parallel grid strips made of magnetic material which respectively have a magnetic anisotropy. The grid strips lead, through their magnetic anisotropy, to the magnetization direction of the coding element being able to differ from the direction of the applied magnetic field. Since the resultant magnetic signals that the grid-shaped magnetic regions deliver cannot be simulated by conventional magnetic regions, said coding elements increase the anti-forgery security of the security element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G07D Class
- 254 Applications Filed
- 218 Patents Issued To-Date
- 85.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G07D Class
- 49.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
