User interface for controlling a bathroom plumbing fixture with outlet and flow pattern selection screens
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jun 1, 2015
filing date -
Apr 20, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

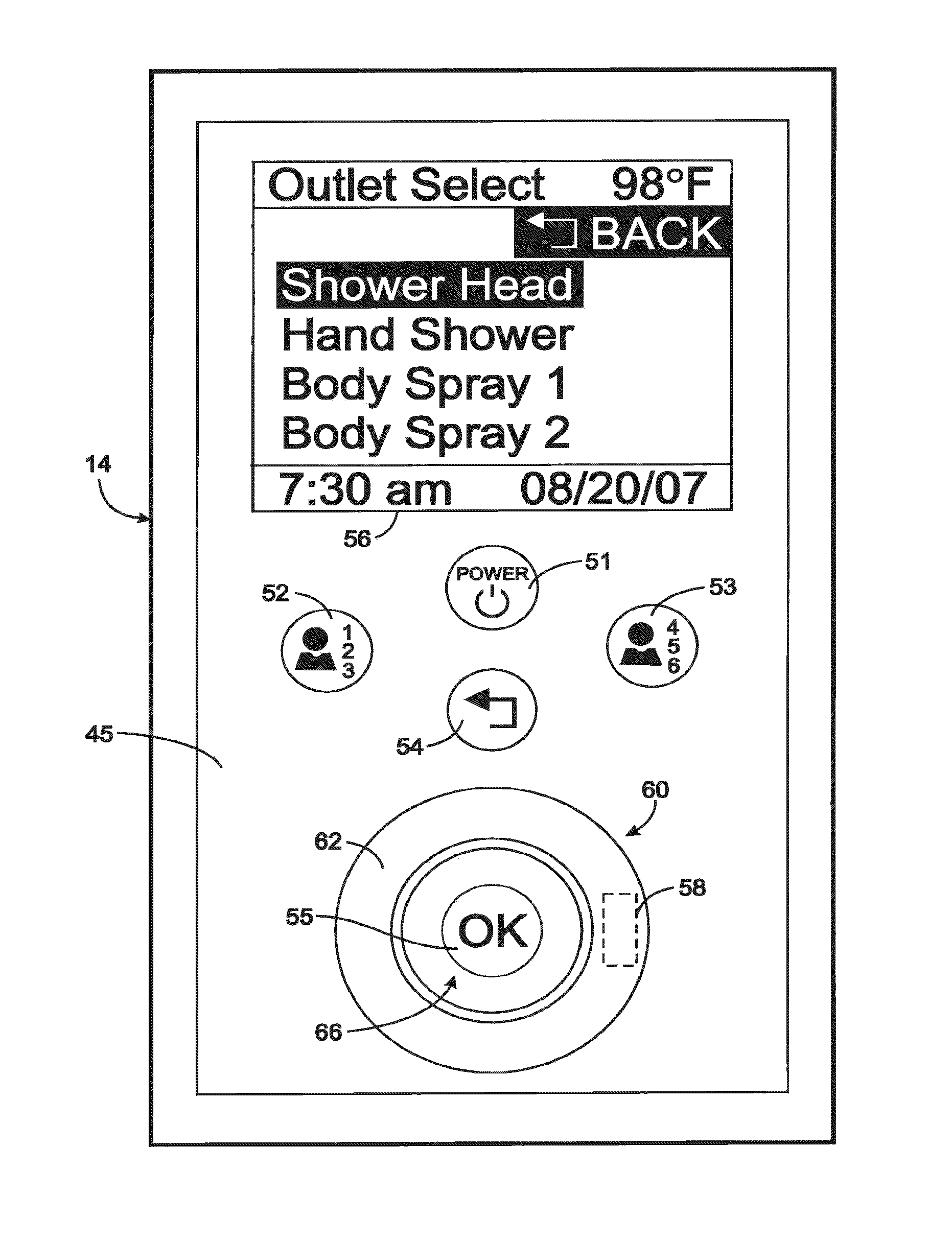

A user interface for controlling a plumbing fixture includes an electronic display configured to display multiple different graphical menus for controlling a plurality of valves. The user interface includes a selector control configured to receive input from a user for navigating the multiple different graphical menus and for selecting items displayed in the multiple different graphical menus. A controller receives a first user input from the selector control and causes the electronic display to switch from displaying one of the graphical menus to another of the graphical menus in response to the first user input. The controller receives a second user input from the selector control and causes the plurality of valves to make multiple different adjustments in response to the second user input based on which of the multiple different graphical menus are displayed when the second user input is received.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G06F Class
- 57200 Applications Filed
- 45873 Patents Issued To-Date
- 80.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
