Eyeglass optimization using an individual eye model
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jan 11, 2013
filing date -
Jan 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

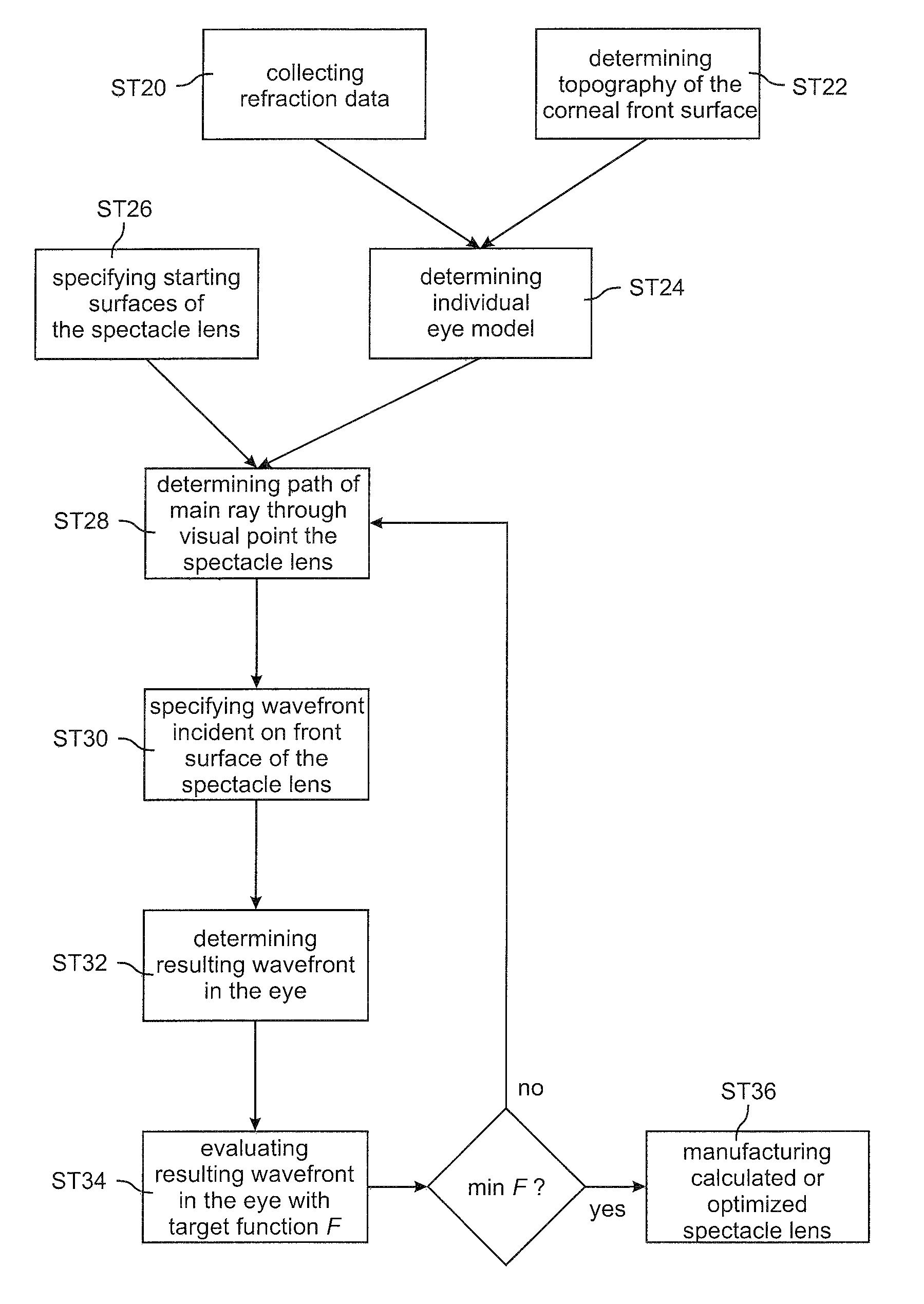

A computer-implemented method for calculating or optimizing a spectacle lens for at least one eye of a spectacle wearer. Refraction data of the at least one eye of the spectacle wearer is collected. An individual eye model is defined, wherein the eye model defines at least the topography of a corneal front surface of the at least one eye, position and power of a lens of the eye, and a retina position of the eye such that the eye exhibits the collected refraction data. A first surface and a second surface for the spectacle lens to be calculated or optimized is specified. The path of a main ray through at least one visual point of at least one spectacle lens surface to be calculated or optimized is determined. A spherical wavefront incident on the first surface of the spectacle lens along the main ray is specified. A wavefront in the at least one eye, which results from the spherical wavefront in a surrounding of the main ray due to the power of at least the first and second surfaces of the spectacle lens, the corneal front surface, and the lens of the at least one eye is determined. The at least one spectacle lens surface to be calculated or optimized is iteratively varied until an aberration of the resulting wavefront corresponds to a specified target aberration.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G06G Class
- 505 Applications Filed
- 487 Patents Issued To-Date
- 96.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G06G Class
- 24.45 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
