Piezoelectric-based multiple impact sensors and their electronic circuitry
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Grant Date -
Nov 19, 2015
app pub date -
Jan 5, 2015
filing date -
Jul 10, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

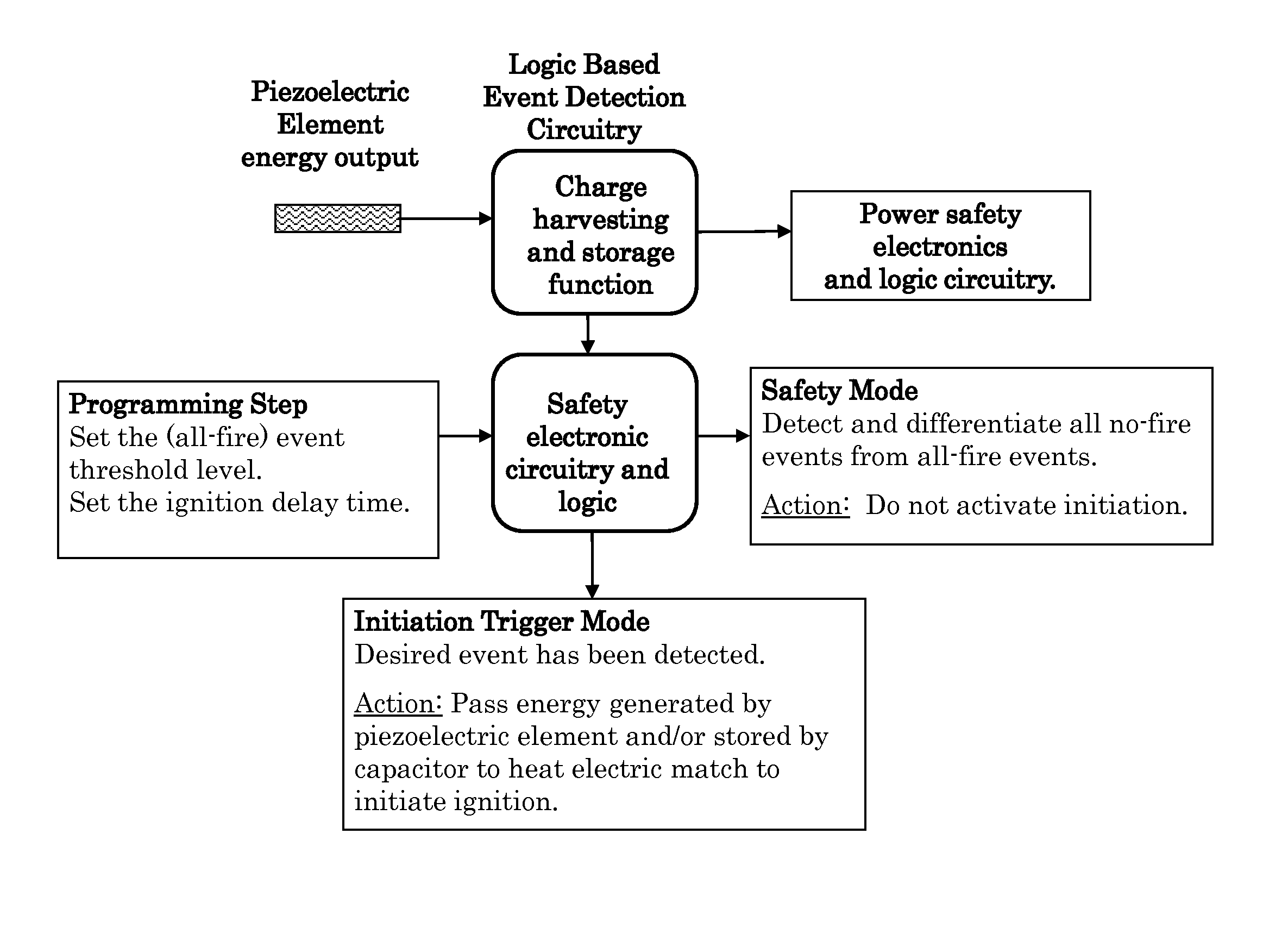

An electrical energy harvesting device for harvesting electrical energy from a pulsed impact loading event. The device including: a piezoelectric element configured to be loaded and unloaded to a first load level by the pulsed impact loading event; and a first inductor coupled to the piezoelectric element configured to be loaded and unloaded to a second load level by the pulsed impact loading event, wherein the piezoelectric element and the first inductor together operate as a first inductor/capacitor (LC) resonant circuit having a first resonance frequency and wherein the loading of the first inductor lags in time the loading of the piezoelectric element.
First Claim
Other Claims data not available
Family
International Classification(s)
- C07F:ACYCLIC, CARBOCYCLIC, OR HETEROCYCLIC COMPOUNDS CO....
- C08F:MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONL....
- H02N:ELECTRIC MACHINES NOT OTHERWISE PROVIDED FOR
- C07D:HETEROCYCLIC COMPOUNDS
- G01P:MEASURING LINEAR OR ANGULAR SPEED, ACCELERATION, D....
- B01J:CHEMICAL OR PHYSICAL PROCESSES, e.g. CATALYSIS, CO....
- F42C:AMMUNITION FUZES
- 2015 Application Filing Year
- C07F Class
- 1404 Applications Filed
- 1070 Patents Issued To-Date
- 76.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C07F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
