Method for detecting the foam boundary and a respectively equipped apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
May 31, 2016
filing date -
Jun 2, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

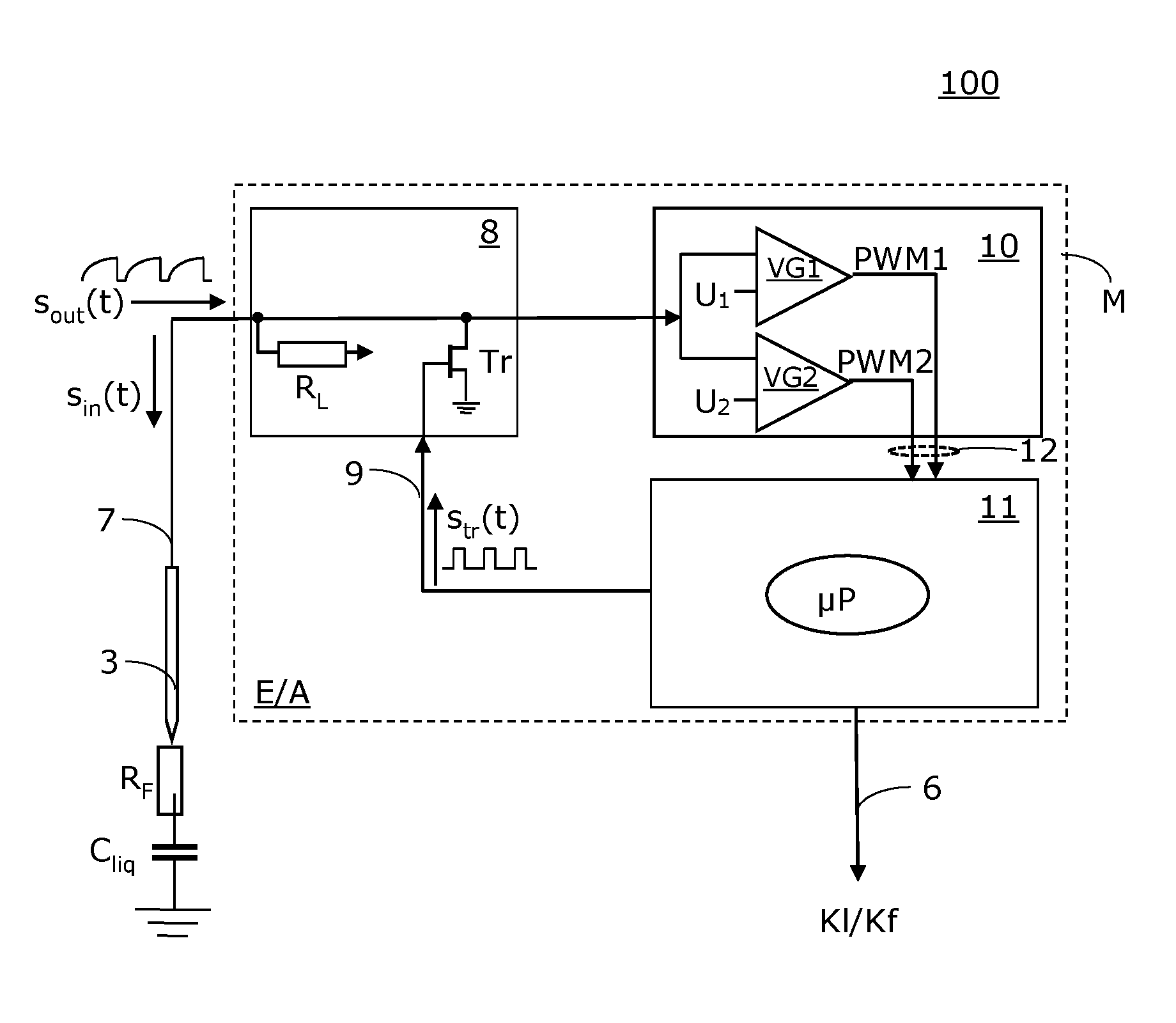

A capacitively operating apparatus (100) has a container, a probe (3) movable into and/or out of the container, an input signal generator connectable to the probe (3) to provide an input signal (sin(t)) which produces at least one output signal (sout(t) in the probe (3), and a measuring apparatus (M) connectable to the probe (3) to tap the output signal (sout(t)) from the probe (3), and wherein the probe (3) is periodically chargeable and dischargeable, the output signal (sout(t)) corresponds to the time progression of a charging/discharging curve which is produced by the periodic charging and discharging of the probe (3). The apparatus (100) also includes a circuit module (10, 11) with two comparators for providing a first comparator output signal (PWM1) and a second comparator output signal (PWM2) from the output signal (sout(t)) and to correlate them with one another.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
