Heat exchanger having a condensate extractor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
May 20, 2013
filing date -
May 18, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

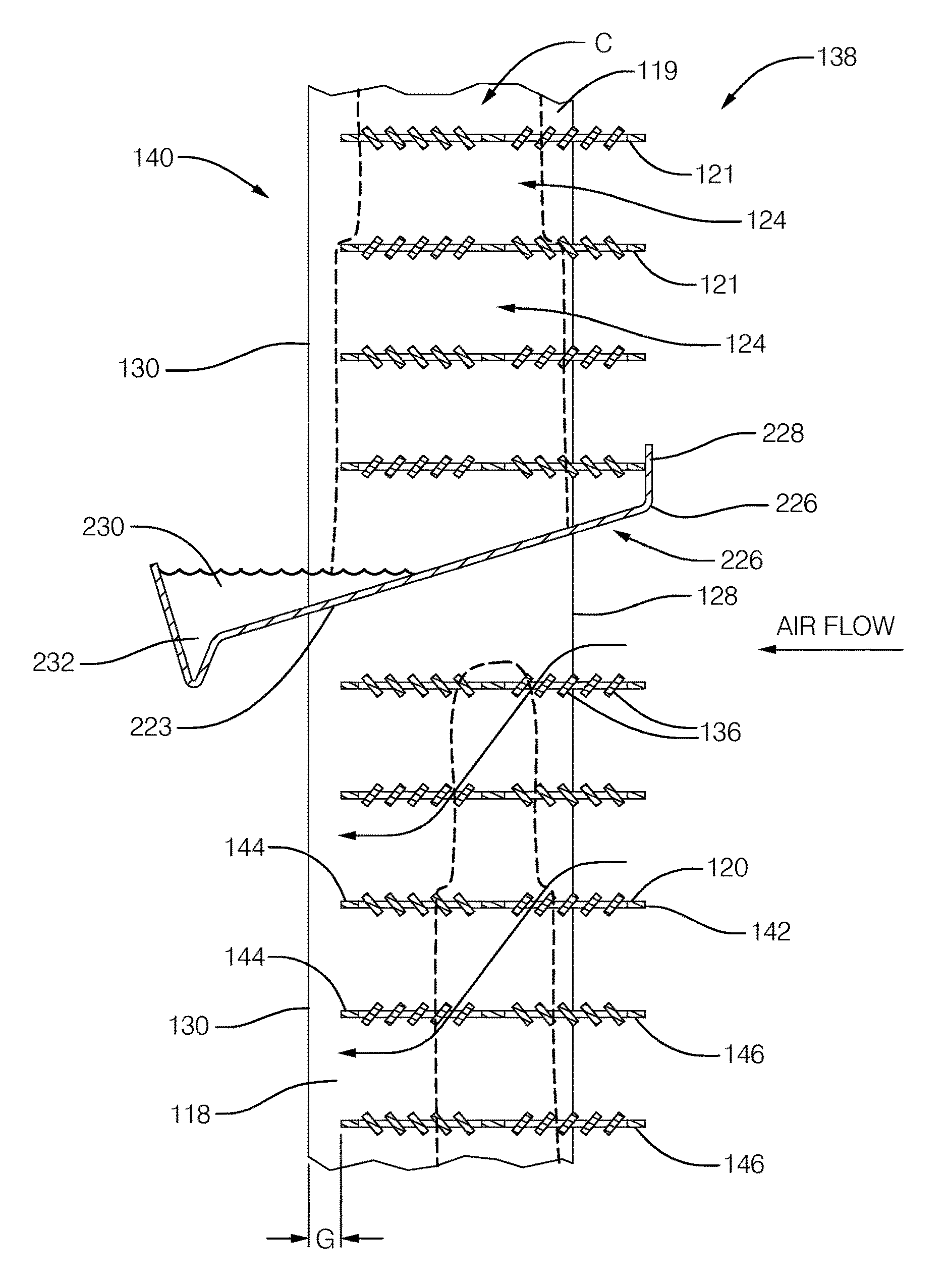

The disclosure presents a heat exchanger assembly having a first manifold, a second manifold spaced from the first manifold, a plurality of refrigerant tubes extending between and in hydraulic communication with the first and second manifolds, a plurality of corrugated fins inserted between the plurality of refrigerant tubes, and a condensate extractor having a comb baffle portion with fingers inserted between the plurality of refrigerant tubes and a conveyance portion. The comb baffle portion is configured to extract condensate from between the plurality of refrigerant tubes and the conveyance portion is configured to convey condensate away from the heat exchanger assembly.
