Hard-pressed glass light emitting diode flood lamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jun 30, 2015
filing date -
May 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

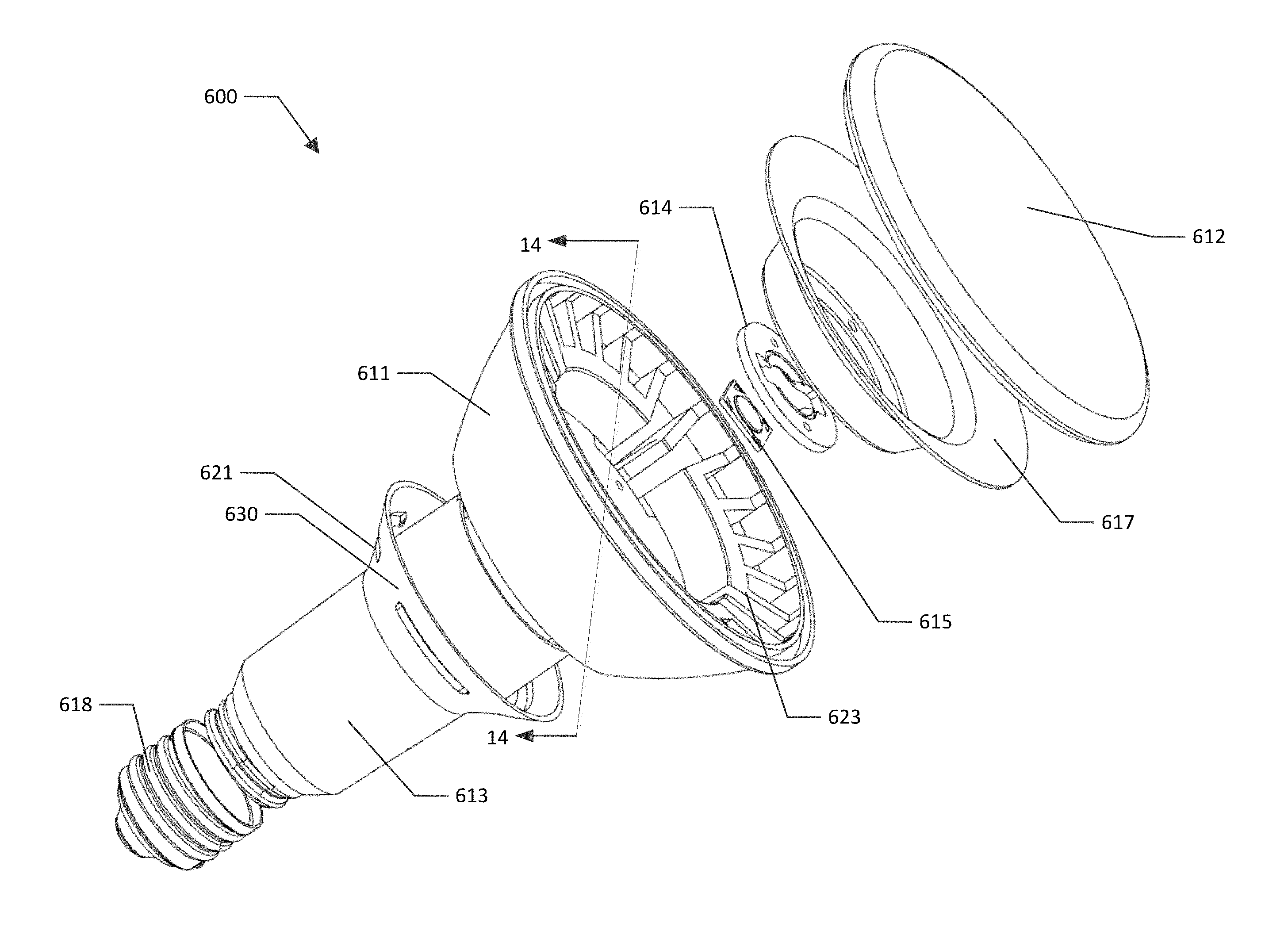

In various embodiments, a light emitting diode (LED) flood lamp is provided. The LED flood lamp may include a base cap; a first housing having a first end and a second end, the first end secured to the base cap; a second housing having at least in part a partially conical shape, an end of the second housing having a smaller diameter secured to the second end of the first housing; at least one LED secured within the second; driver circuitry secured within the LED flood lamp between the end of the base cap and the at least one LED; a reflector having a partially conical shape; and a diffuser element secured to at least one of a wider end of the reflector or the end of the second housing having the larger diameter. In some embodiments, the first or second housing may include one or more vents.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F21V Class
- 3770 Applications Filed
- 2807 Patents Issued To-Date
- 74.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- F21V Class
- 23.81 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
