Hydrokinetic torque coupling device for a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Nov 16, 2015
filing date -
Nov 16, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

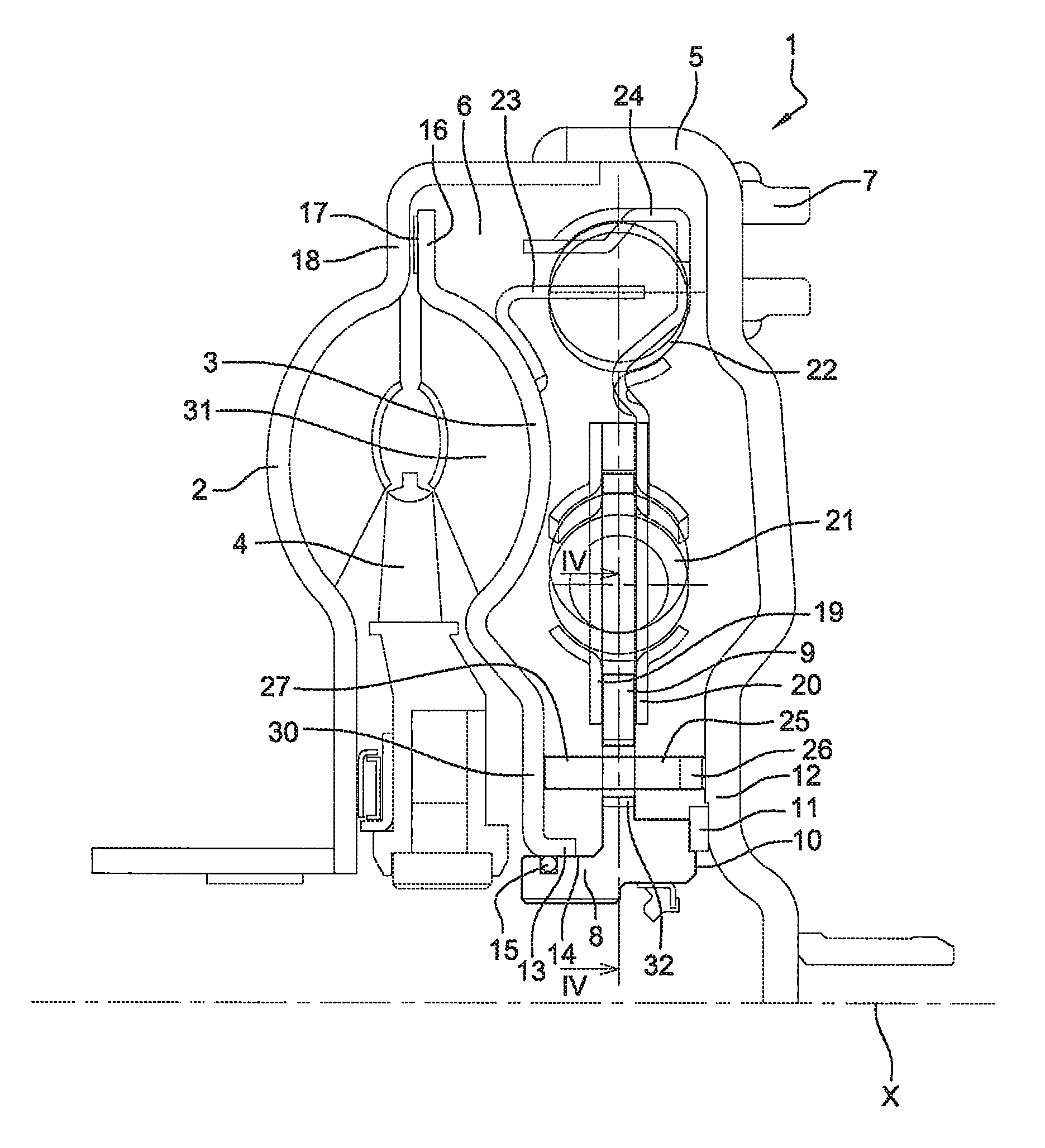

A hydrokinetic torque coupling device for a motor vehicle comprises an impeller wheel intended to be coupled to a crankshaft and adapted to hydrokinetically rotate a turbine wheel. The impeller wheel rotationally coupled to a cover at least partially accommodating the impeller wheel, the turbine wheel and the reactor. The turbine wheel is axially moves between an engaged position in which the turbine wheel and the impeller wheel are axially moved closer to each other and rotationally coupled together, and a disengaged position in which the turbine wheel and the impeller wheel are axially moved away from each other and rotationally uncoupled. The device comprises a bracing member axially extending between the turbine wheel and a part of the cover, with the bracing member being adapted to limit the axial motion of the turbine wheel toward the above-mentioned part of the cover, opposite the turbine wheel.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16F Class
- 42.26 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
