Disconnect clutch with positive plate separation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jul 15, 2015
filing date -
Jul 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

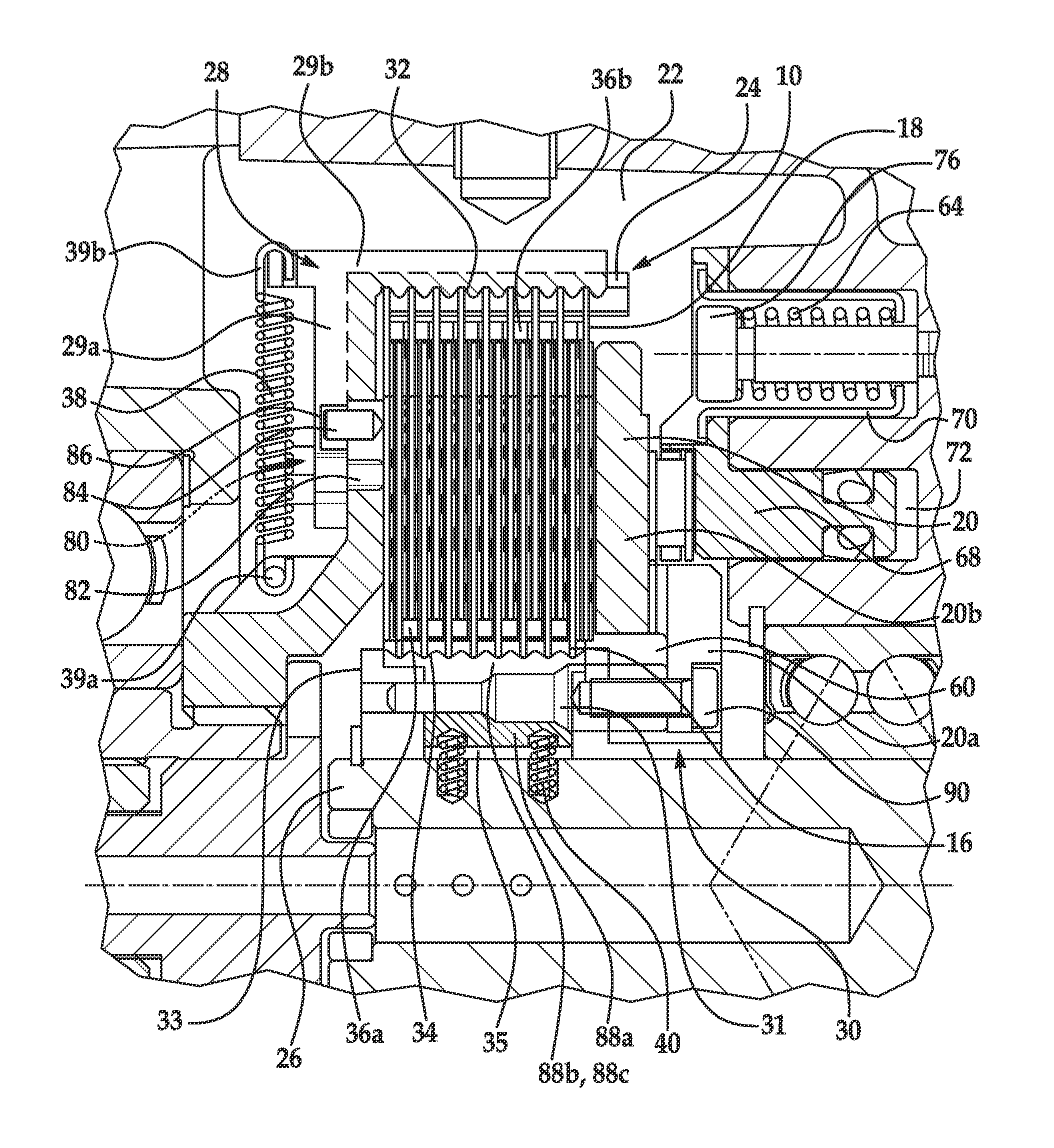

A clutch assembly (10) and a method of assembly operable for transferring rotary power between a first shaft (12) and a second shaft (14) through a set of inner clutch plates (16) and a set of outer clutch plates (18) can include at least one of an outer plate separator (28) and an inner plate separator (30). The outer plate separator (28) can be biased radially inward toward the outer clutch plates (18) for axially separating each of the outer clutch plates (18) and moveable radially outward away from the outer clutch plates (18) by centrifugal force when the clutch assembly (10) is rotated above a predetermined rotational speed threshold. The inner plate separator (30) is biased radially outward for axially separating each of the inner clutch plates (16) and moveable radially inward away from the inner clutch plates (16) by axial movement of a hydraulically actuated wedge member (31) when the clutch assembly (10) is engaged.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F16D Class
- 1523 Applications Filed
- 1279 Patents Issued To-Date
- 83.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16D Class
- 41.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
