Hybrid induction welding process applied to piston manufacturing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Aug 27, 2014
filing date -
Aug 27, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

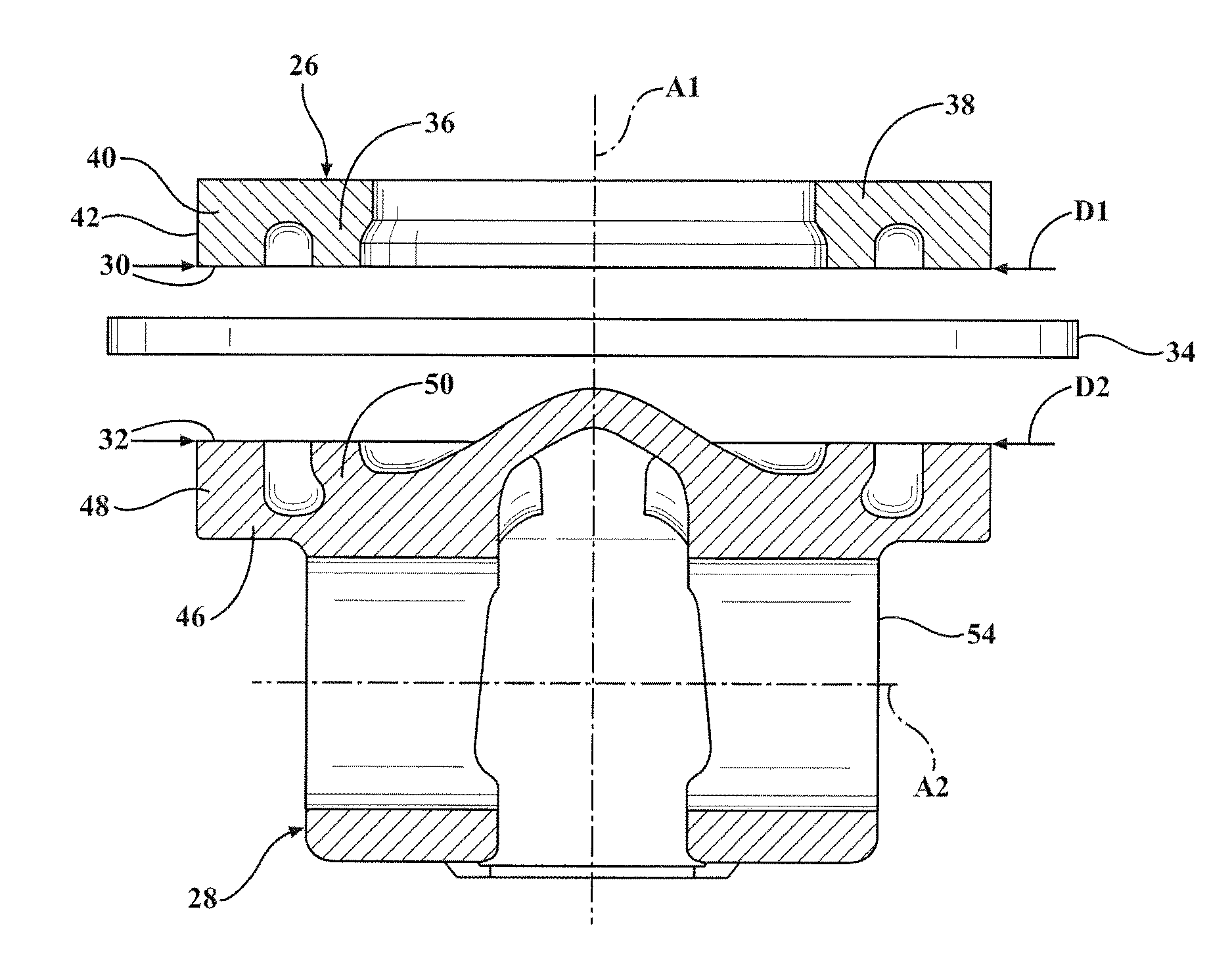

A hybrid induction welded piston including an upper piston part welded to a lower piston part is provided. The piston is produced by induction heating the upper piston part and the lower piston part, and bringing the parts together to a part growth compensated position. The method then includes rotating the upper piston part 17 to 34 degrees clockwise and then 17 to 34 degrees counterclockwise. In addition to controlling the axial position and degree of rotation, the force applied to the piston parts is controlled so that preferably no flash is formed in a narrow cooling chamber of the piston. During the rotating steps, the pressure gradually increases to a maximum level which occurs while the upper piston part is rotating in the second direction. The piston includes a homogenous metallurgical bond across the weld and no indentation on the outer surface at the weld prior to machining.
