Biochemical reactor with an unclogging pipe
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Mar 23, 2017
filing date -
Nov 21, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

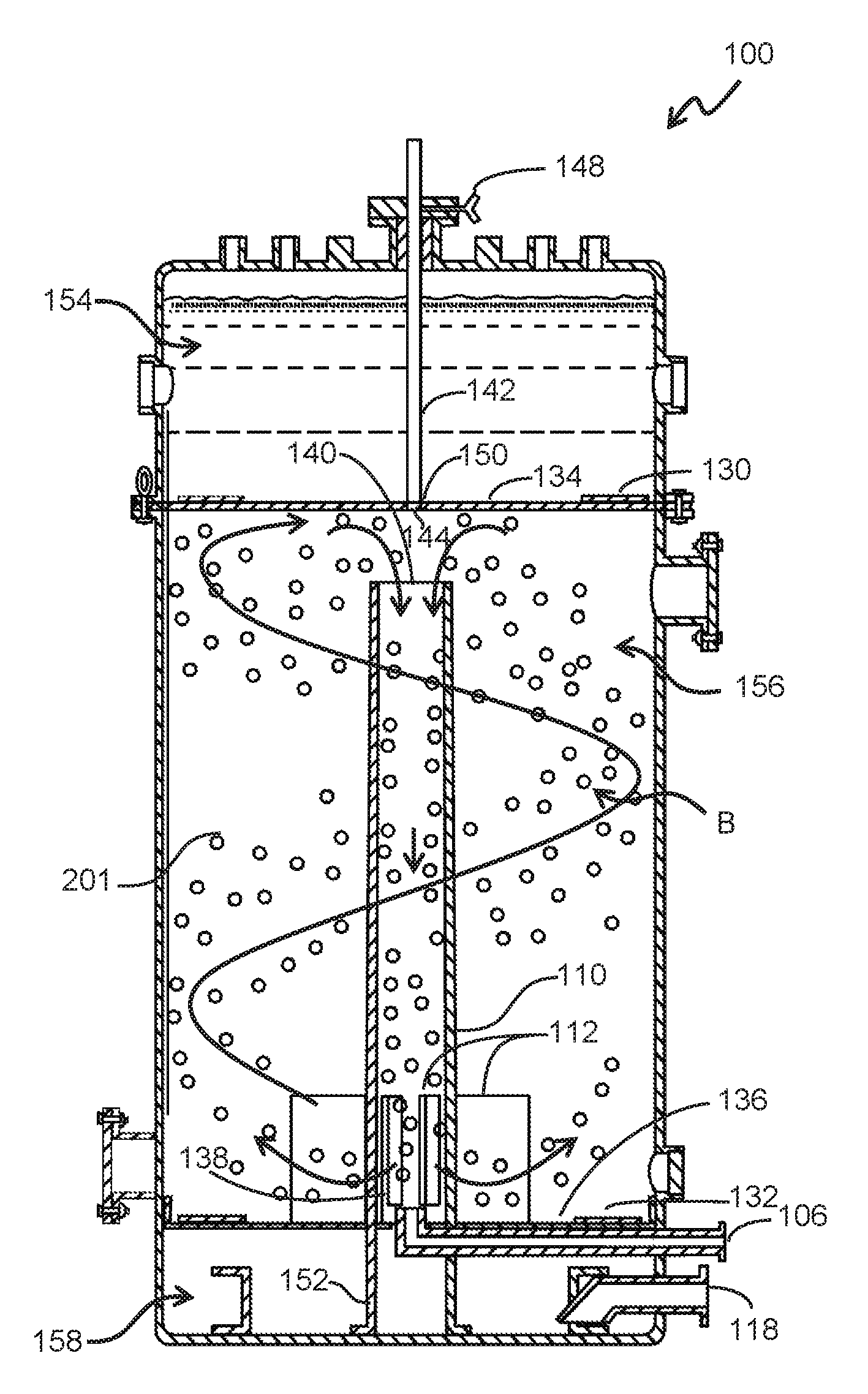

This disclosure describes a biochemical reactor with an unclogging pipe. The biochemical reactor may include a tank configured to house immobilized carriers and fluid. The biochemical reactor may include a circulation conduit at least partially disposed within the tank. The circulation conduit may include a circulation inlet opening and a circulation outlet opening. The biochemical reactor may include one or more vanes disposed proximate to the circulation outlet opening. The one or more vanes may be configured to cause the immobilized carrier and the fluid exiting the circulation outlet opening to enter into a helical pattern. The biochemical reactor may include an unclogging pipe configured to clear clogging of the circulation conduit. The unclogging pipe may be disposed proximate to the circulation outlet opening. Clearing clogging of the circulation conduit may include directing a pressurized flow of air to the circulation conduit via the unclogging pipe.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- C12M Class
- 1027 Applications Filed
- 610 Patents Issued To-Date
- 59.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C12M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
