Ship steering system for outdrive device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jan 30, 2014
filing date -
Jan 30, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

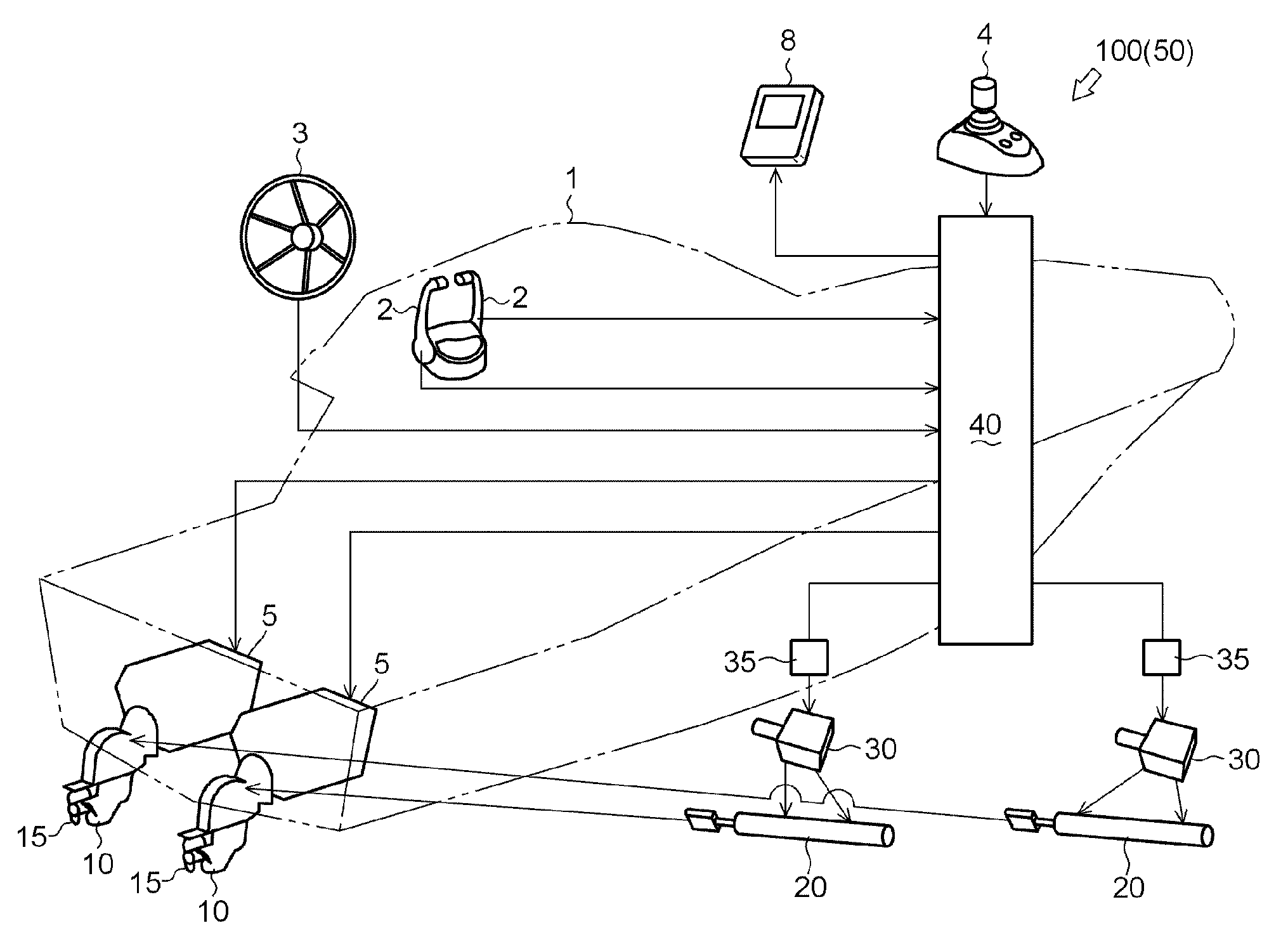

Provided is a technology that facilitates a calibrating operation. A ship steering system for outdrive device includes an outdrive device, a control device that provides an instruction about a turning direction of the outdrive device, and a ship steering lever that instructs the control device about a traveling direction of a hull, and is provided with a monitor capable of displaying an image for matching an actual traveling direction with the traveling direction of the hull according to the instruction from the ship steering lever. The monitor shows the direction in which the ship steering lever is tipped, and indicates that the operation is proper if the direction in which the ship steering lever is tipped corresponds to a pre-set direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B63H Class
- 329 Applications Filed
- 305 Patents Issued To-Date
- 92.71 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 23 Citation Count
- B63H Class
- 98.87 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
