Removable table with a reduced bulk, in particular for a railway vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Sep 1, 2016
filing date -
Sep 3, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

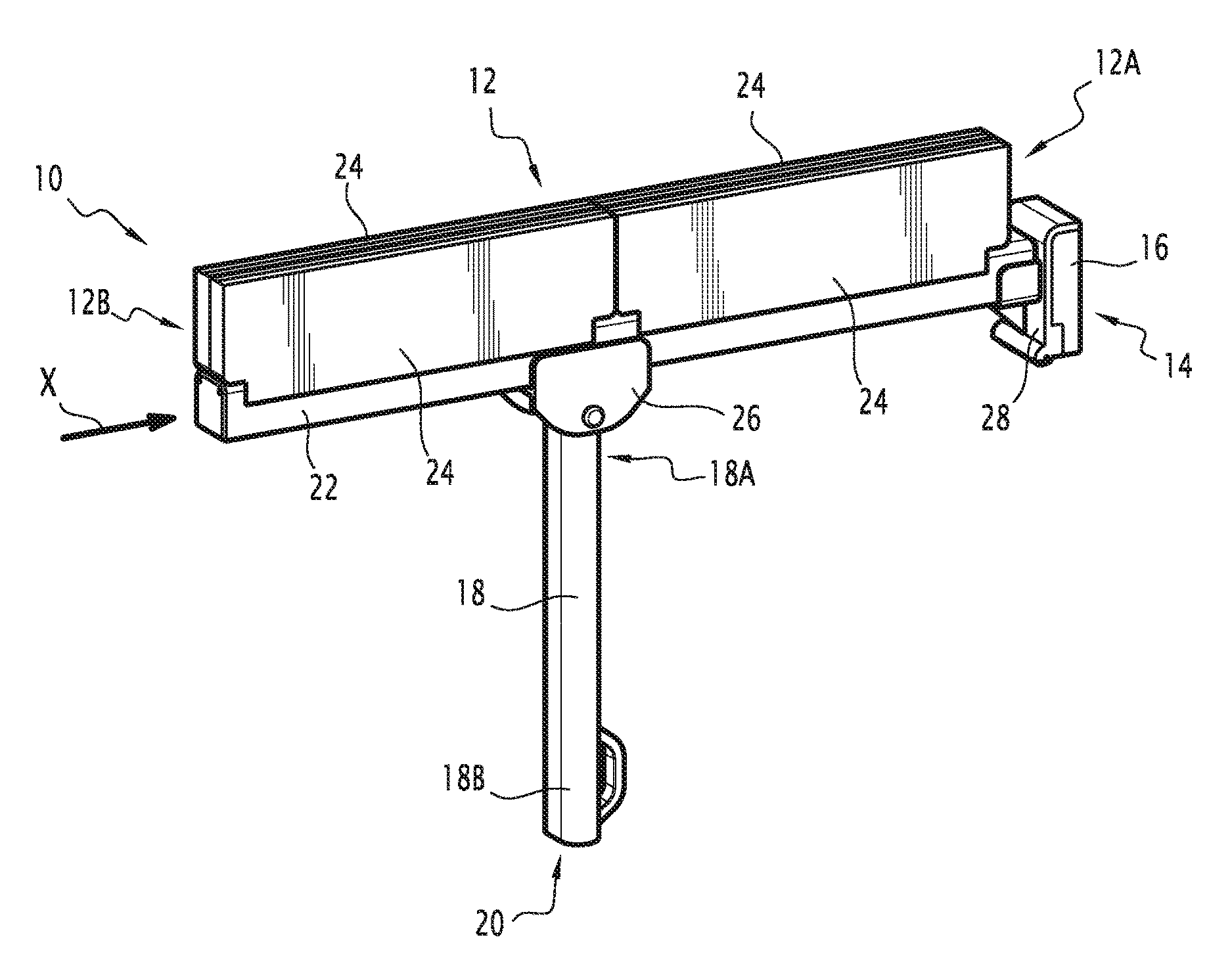

The table (10) includes a plate (12) extending, in a longitudinal direction, between a first lateral edge (12A) bearing first removable attachment elements (14) to a lateral wall of the compartment, and a second free lateral edge (12B), and a central leg (18) extending between a first end (18A) connected to the plate and a second end (18B) including second removable attachment elements (20) to the floor of the compartment. The first end of the central leg is connected to the plate through a pivot connection (26) allowing pivoting of the central leg for folding it back towards one of the first or second lateral edges of the plate, and the plate includes, at the other one of the first or second lateral edges of the plate, at least one supporting member (28) on which the plate is intended to be supported when the plate is laid on the floor.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A47B Class
- 1233 Applications Filed
- 953 Patents Issued To-Date
- 77.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A47B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
