Seatbelt tensioner with a force-limiting device, and method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Aug 11, 2011
filing date -
Nov 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

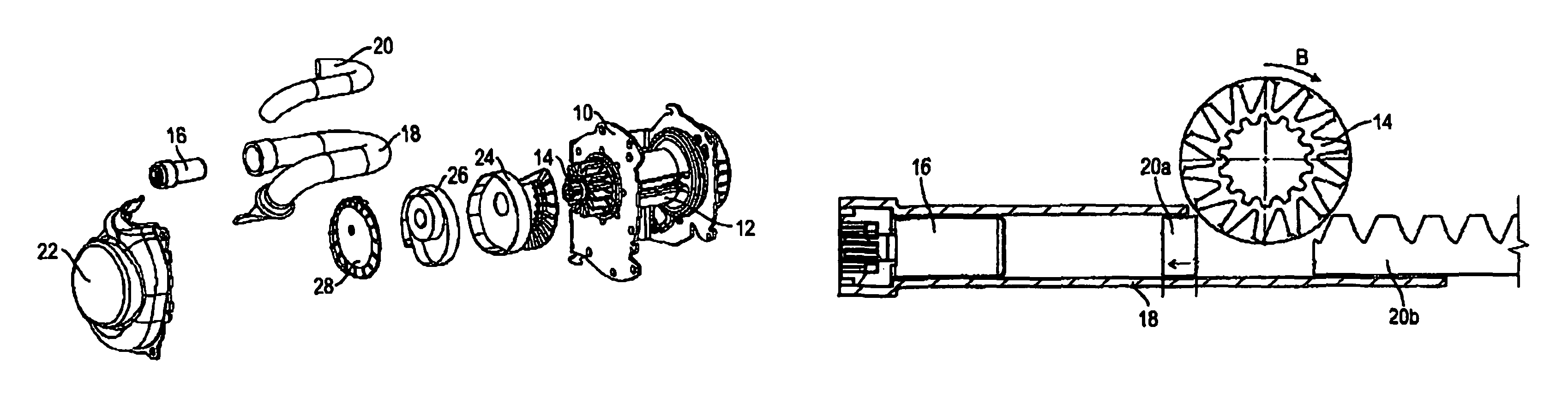

A belt tensioner for a belt retractor having a load limiter includes a pivoted pinion (14) coupled to a belt reel, a drive unit and a load transmission element (20) moved by the drive unit. The load transmission element (20) engages in the pinion (14) so as to rotate the pinion in a tensioning direction A. The load transmission element (20) is designed so that in the rotational position adopted by the pinion (14) after being rotated by the load transmission element (20) a part (20b) of the load transmission element (20) engages in the pinion (14). A method of tensioning a seat belt by means of a belt tensioner and subsequent load limitation by means of a load limiter includes moving a load transmission element (20) by a drive unit in a first direction so that the load transmission element (20) engages in a pinion (14) coupled to a belt reel (12). The rotating the pinion (14) is rotated by the moved load transmission element (20) in a tensioning direction A. When the rotation of the pinion (14) is completed it is ensured that a part (20b) of the load transmission element (20) engages in the pinion (14).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B60R Class
- 1540 Applications Filed
- 1203 Patents Issued To-Date
- 78.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60R Class
- 21.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
