Brake system dig feature
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Aug 4, 2016
filing date -
Dec 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

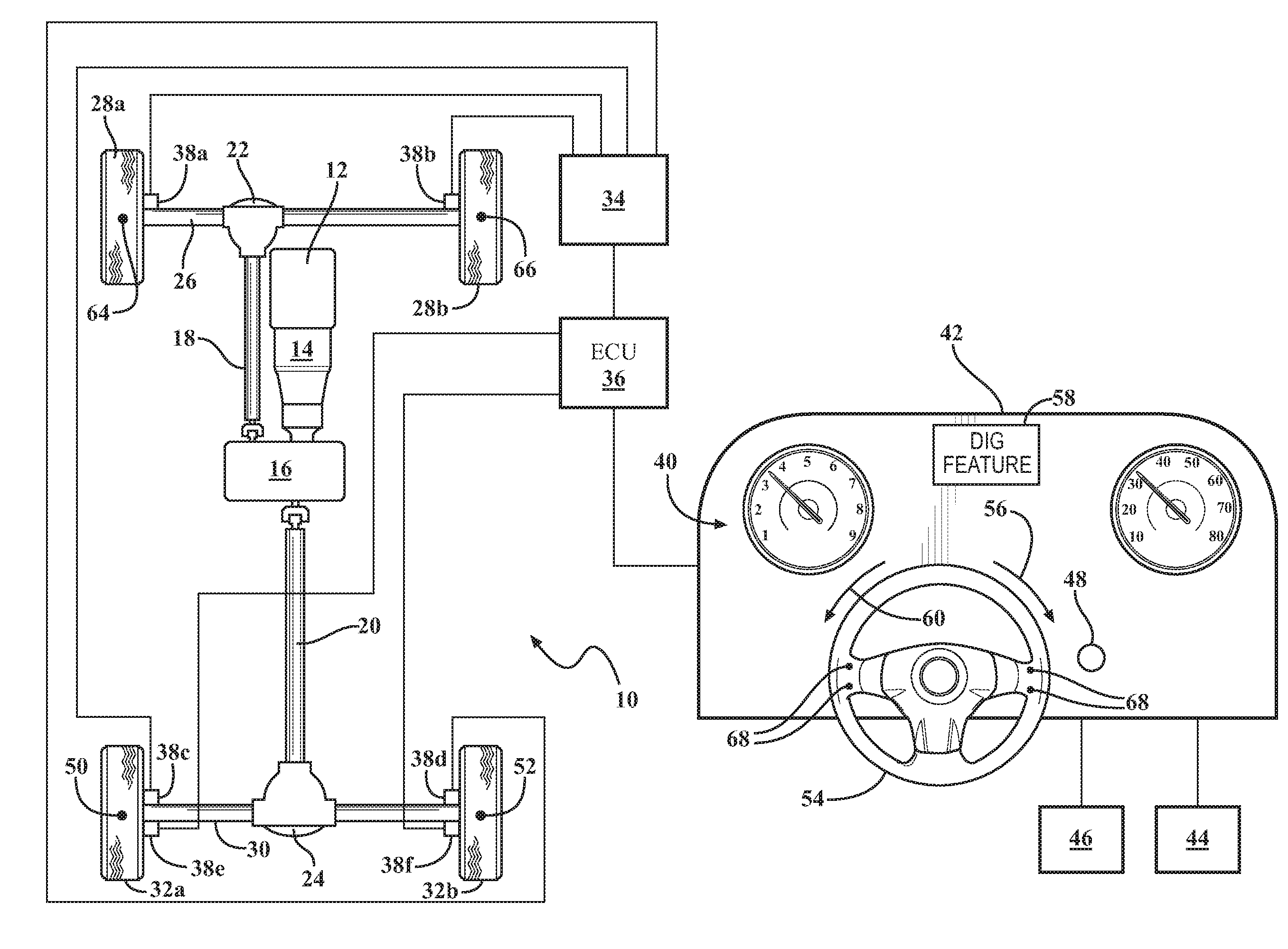

A dig system which allows for a vehicle to perform a dig maneuver, without sacrificing drivability. An actuator places the dig system in one of four different modes of operation, where the front wheels are placed in either a first configuration or a second configuration, where the front wheels are positioned at a desired steering angle, and one of the front or rear wheels is braked and prevented from rotating. The transfer case transfers power to one or more of the non-braked wheels, and disconnects from the remaining wheels. One or more of the non-braked wheels are rotated such that the vehicle pivots about an axis which extends through one of the wheels. One of the rear wheels is braked when performing a front dig maneuver, and one of the front wheels is be braked when performing a reverse dig maneuver.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60K Class
- 2914 Applications Filed
- 2276 Patents Issued To-Date
- 78.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
