Air conditioning system for a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Sep 17, 2013
filing date -
Sep 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

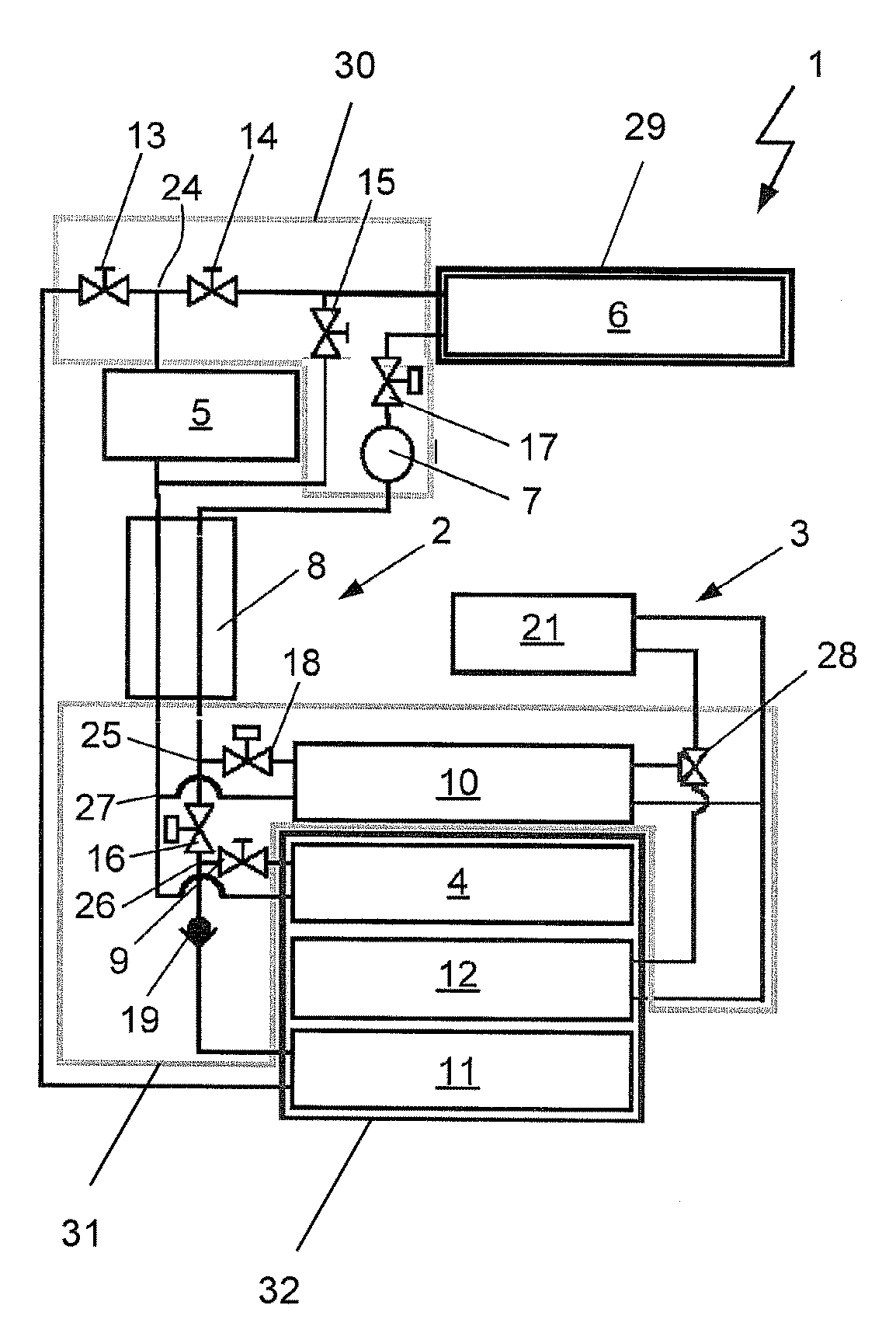

The invention relates to an air conditioning system for conditioning the air of a passenger space of a motor vehicle, the system including a refrigerant circuit with a compressor, a first heat exchanger for the heat exchange between the refrigerant and the environment and a second heat exchanger for supplying heat from the refrigerant to the air supply to be conditioned for the passenger space. The refrigerant circuit further includes, in the flow direction of the refrigerant after the compressor, a valve arrangement. The valve arrangement comprises a branch, a first valve arranged between the branch and the second heat exchanger, and a second valve arranged between the branch and the first heat exchanger. The first valve is designed with a normally open (NO) valve characteristic and the second valve with a normally closed (NC) valve characteristic.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60H Class
- 402 Applications Filed
- 357 Patents Issued To-Date
- 88.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60H Class
- 34.91 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
