Ventilated key-slot full circle heat shield
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Grant Date -
Apr 20, 2017
app pub date -
Oct 20, 2015
filing date -
Oct 20, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

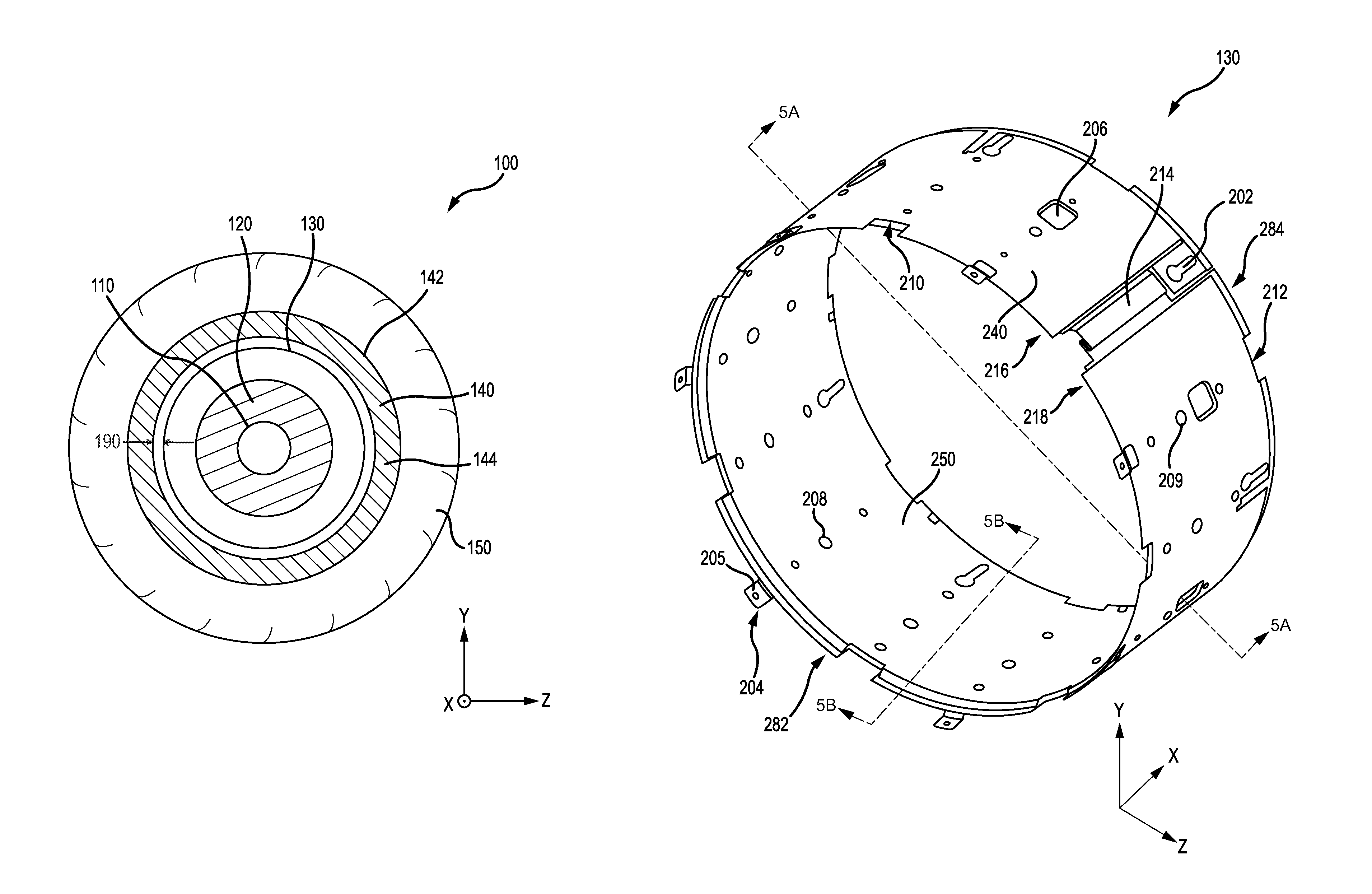

Systems and methods disclosed herein may be useful for use in a wheel assembly which includes a heat shield. In this regard heat shield for a wheel may include a first member; a second member positioned radially of the first member defining an annular cavity between the first member and the second member; an opening in at least one of the first member and the second member configured to provide fluidic communication between the annular cavity and an outside of the annular cavity; and a mounting feature in operable communication with the first member and the second member configured to attach the heat shield to the wheel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60C Class
- 1074 Applications Filed
- 736 Patents Issued To-Date
- 68.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B60C Class
- 34.43 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
