Infrared shielding sheet, method for manufacturing the same, and use of the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Grant Date -
Mar 24, 2016
app pub date -
May 16, 2014
filing date -
May 16, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

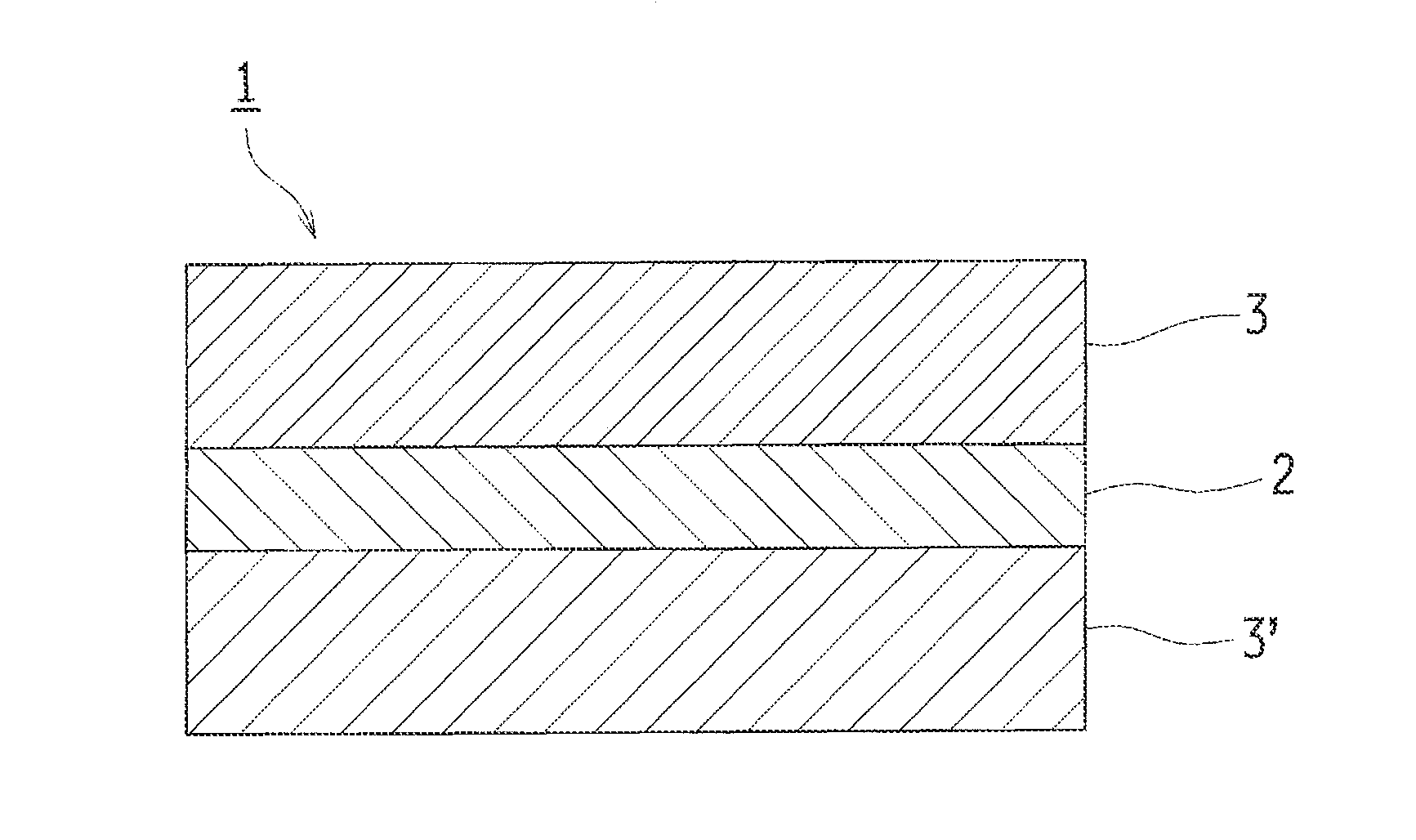

An infrared shielding sheet includes a laminated film formed by alternately laminating a high refractive index resin layer containing fine particles and a low refractive index resin layer containing fine particles. At least one of the low refractive index resin layers has a value of 0.1 or more that is obtained by subtracting a refractive index at an arbitrary wavelength from 780 to 2500 nm from a refractive index at a wavelength of 550 nm. The low refractive index resin layer has a refractive index lower than a refractive index of the high refractive index resin layer at any wavelength in a range from 550 nm to the arbitrary wavelength inclusive.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- C08J Class
- 40.10 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
