Defoamer assembly for use with a filler and method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
Jun 5, 2015
filing date -
Jun 5, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

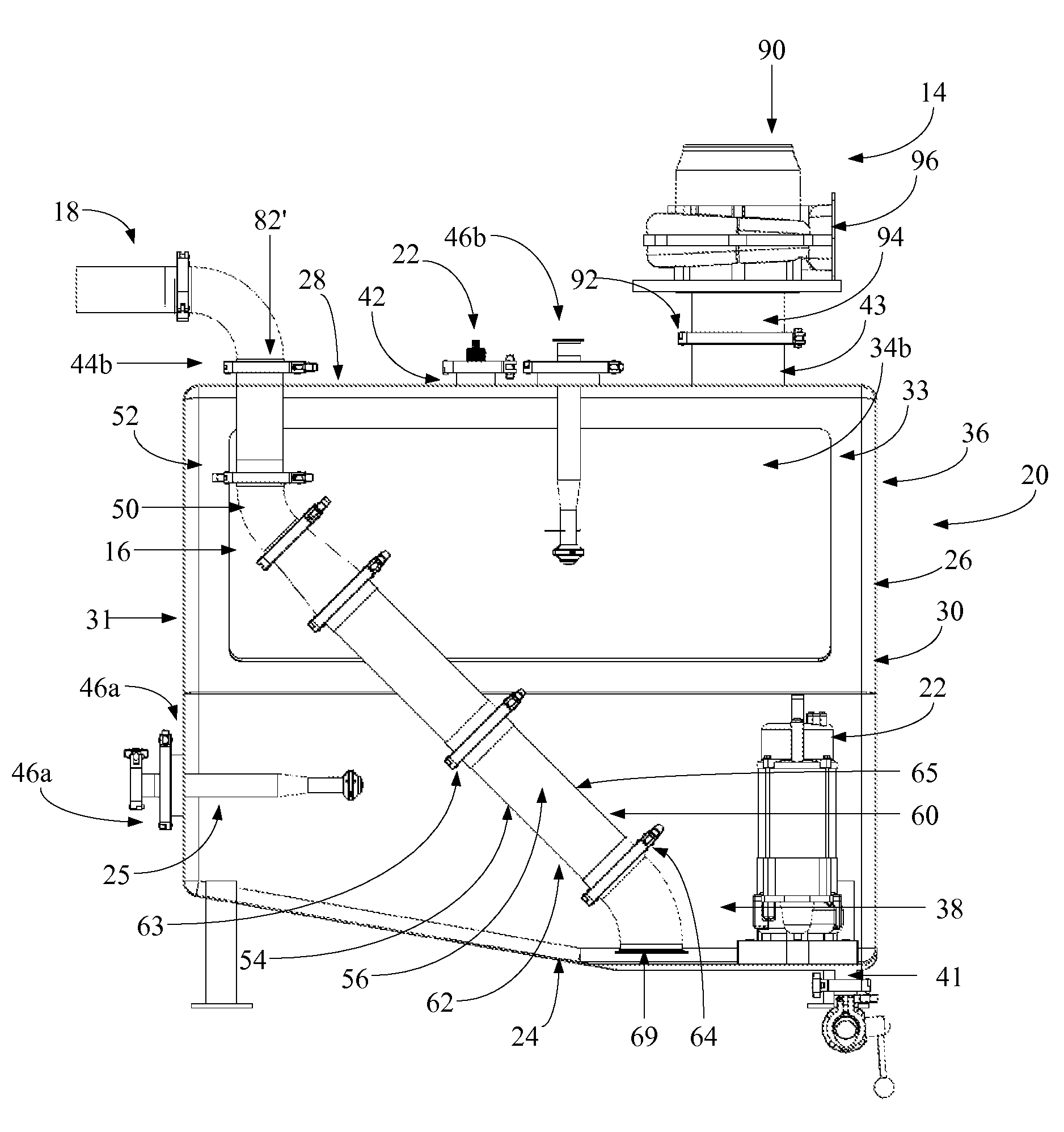

A defoamer assembly for a filler comprising a containment tank, a extrusion forcing sub-assembly, a collection subassembly and an extruder subassembly. The extrusion forcing sub-assembly is associated with the containment tank. The extrusion forcing sub-assembly is structurally configured to force gas from within the containment tank through an opening. The collection subassembly is coupled to an inlet port on the containment tank, and includes a collection head with an inlet opening and a conduit coupling the collection head with the inlet port. The extruder subassembly is coupled to the inlet port. The first end of the extruder assembly receives foam from the collection assembly and an outlet comprising a mesh having a plurality of openings. The outlet is in fluid communication with the extrusion forcing sub-assembly. The extrusion forcing sub-assembly directs the foam through the mesh, thereby extruding the foam therethrough, to, in turn, separate at least a portion of the foam into a fluid and a gas.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B67C Class
- 101 Applications Filed
- 79 Patents Issued To-Date
- 78.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B67C Class
- 52.50 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
