Delivery system for a prosthetic heart valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2018
Issued Date -
N/A
app pub date -
May 5, 2015
filing date -
Jun 13, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

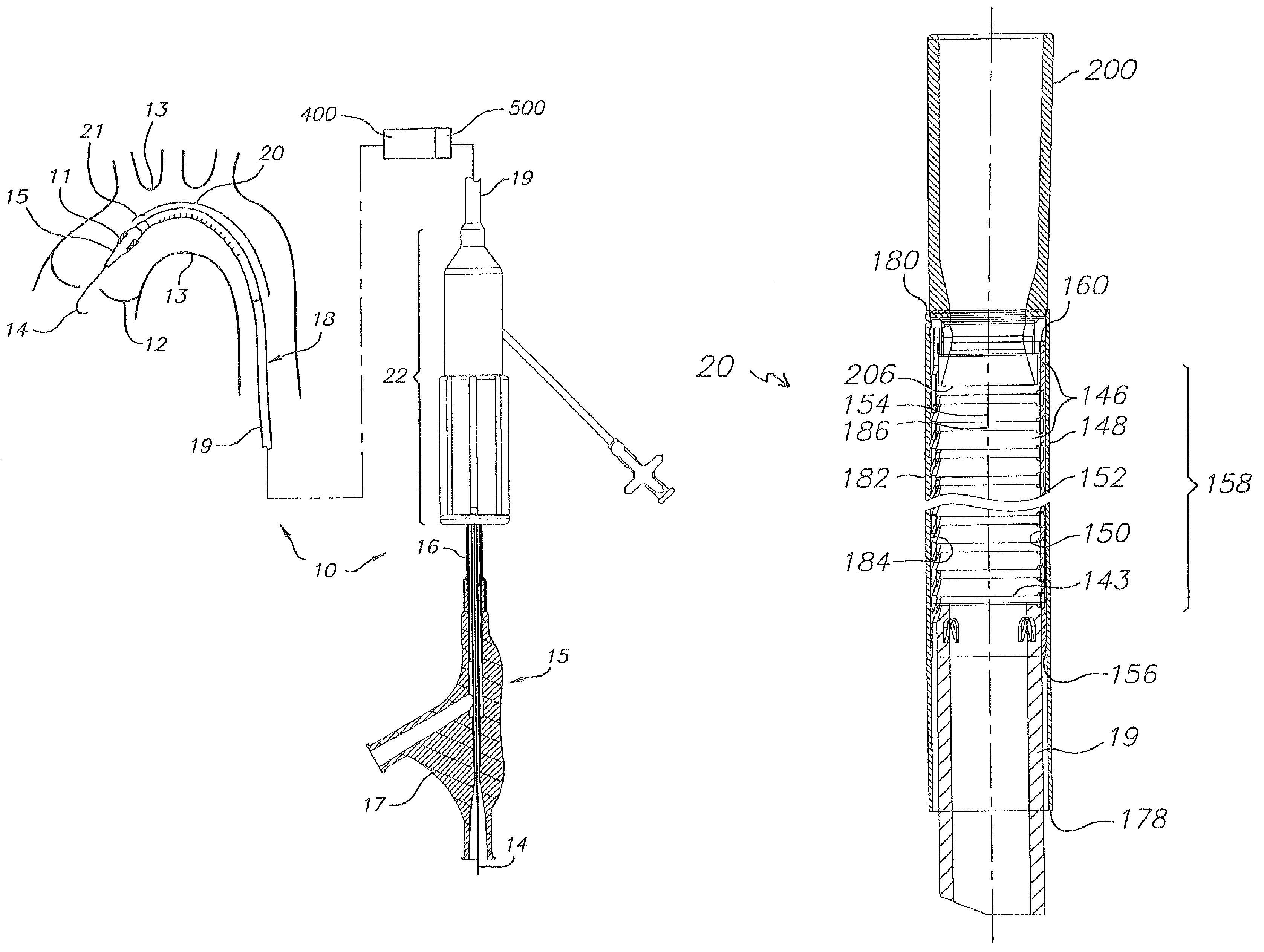

A method of delivering a prosthetic heart valve to a native aortic valve is disclosed. The prosthetic heart valve comprises a radially compressible and expandable metallic stent and a flexible valvular structure. A delivery system comprises a selectively steerable section and a pusher member extending through a central lumen of the steerable section. The prosthetic heart valve is compressed and inserted into a distal end portion of the delivery system. The delivery system and prosthetic heart valve are advanced through a femoral artery and around an aortic arch. A pull wire is actuated for selectively controlling a curvature of the steerable section during advancement around the aortic arch. The pusher member is advanced for ejecting the prosthetic heart valve from the delivery system into the native aortic valve, wherein the prosthetic valve self-expands after ejection.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61F Class
- 5839 Applications Filed
- 4516 Patents Issued To-Date
- 77.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- A61F Class
- 21.72 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 6, 2029 |
