Solid electrolytic capacitor module with improved planarity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Mar 28, 2016
filing date -
Mar 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

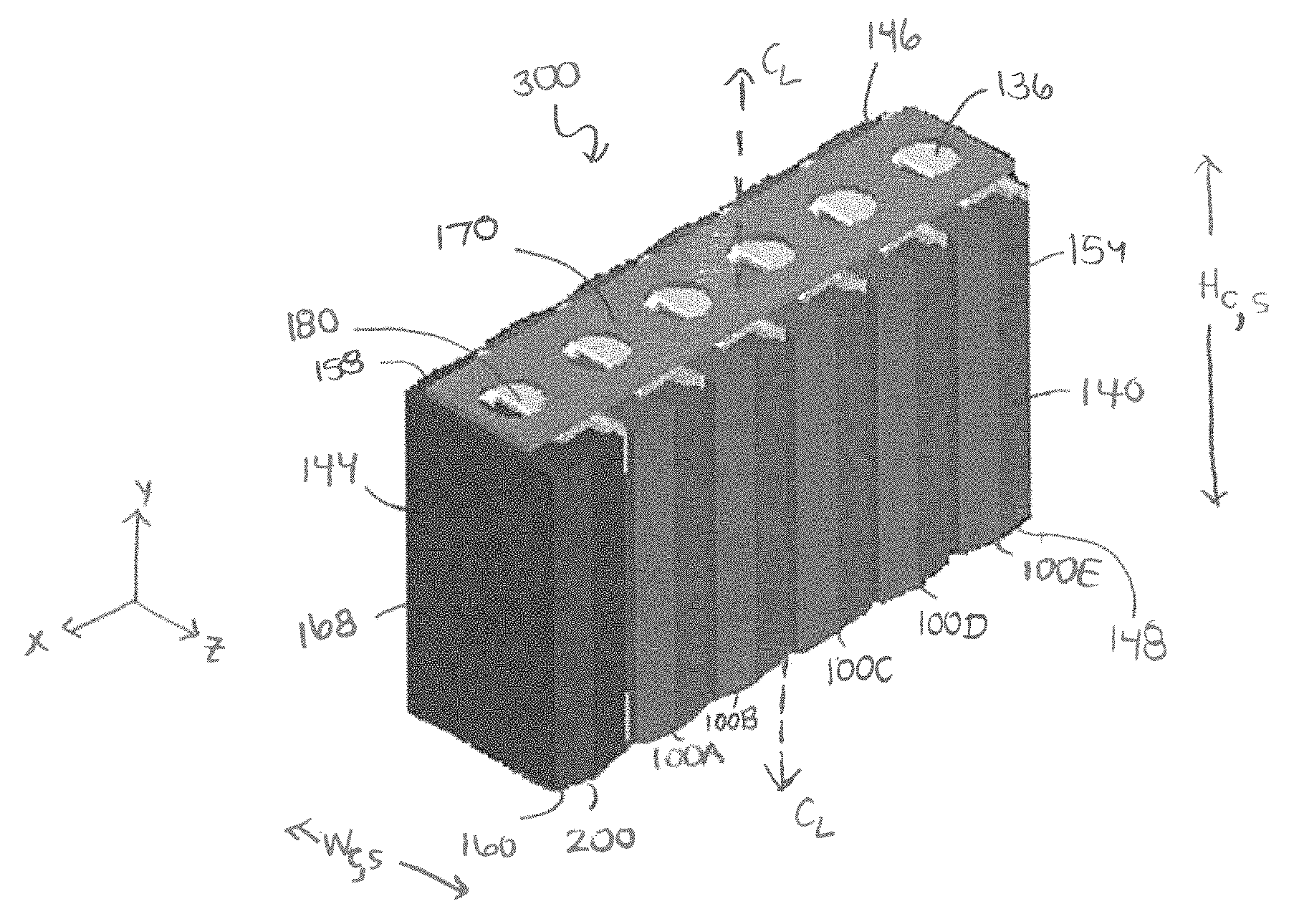

A module containing a plurality of active capacitors and a sacrificial capacitor is provided. The active capacitors and sacrificial capacitor are aligned along a horizontal direction so that the side surfaces of their cases are parallel to each other. The particular arrangement of the active capacitors and sacrificial capacitor results in a module configuration where the anode terminations for the active capacitors and an external component of the lead frame for the sacrificial capacitor are coplanar so that the module can be mounted to a circuit board via the anode terminations and the external component of the lead frame in a mechanically and electrically stable manner. Further, the center of gravity of the module in the length and/or width directions can be located at a midpoint of the overall module length and/or width, which enhances the stability of the module when mounted to a circuit board.
