Wiring structure and printed wiring substrate of wiring structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Dec 22, 2016
filing date -
Jan 25, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

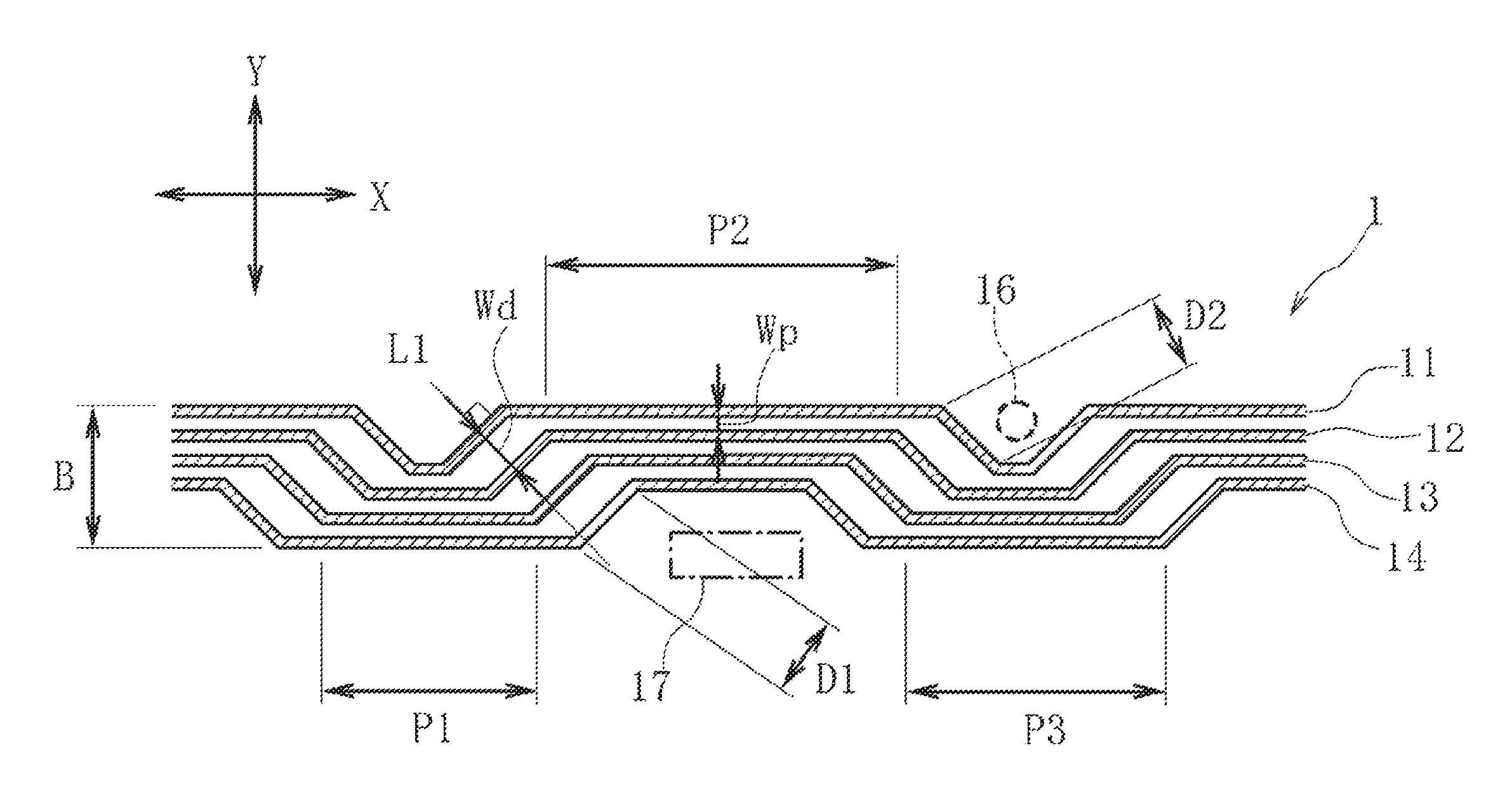

A wiring structure includes a plurality of wiring patterns. An interval between the adjacent wiring patterns is shortened in the parallel wiring portions. In wiring path change portions, the wiring patterns are extended at a slope with respect to an X direction, and an interval between the adjacent wiring patterns is more widened than the interval. A crosstalk noise can be reduced by widening the interval between the wiring patterns using the wiring path change portions without making an area occupied by a wiring region extremely increased.
