Compact cyclotron
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
May 12, 2017
filing date -
May 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

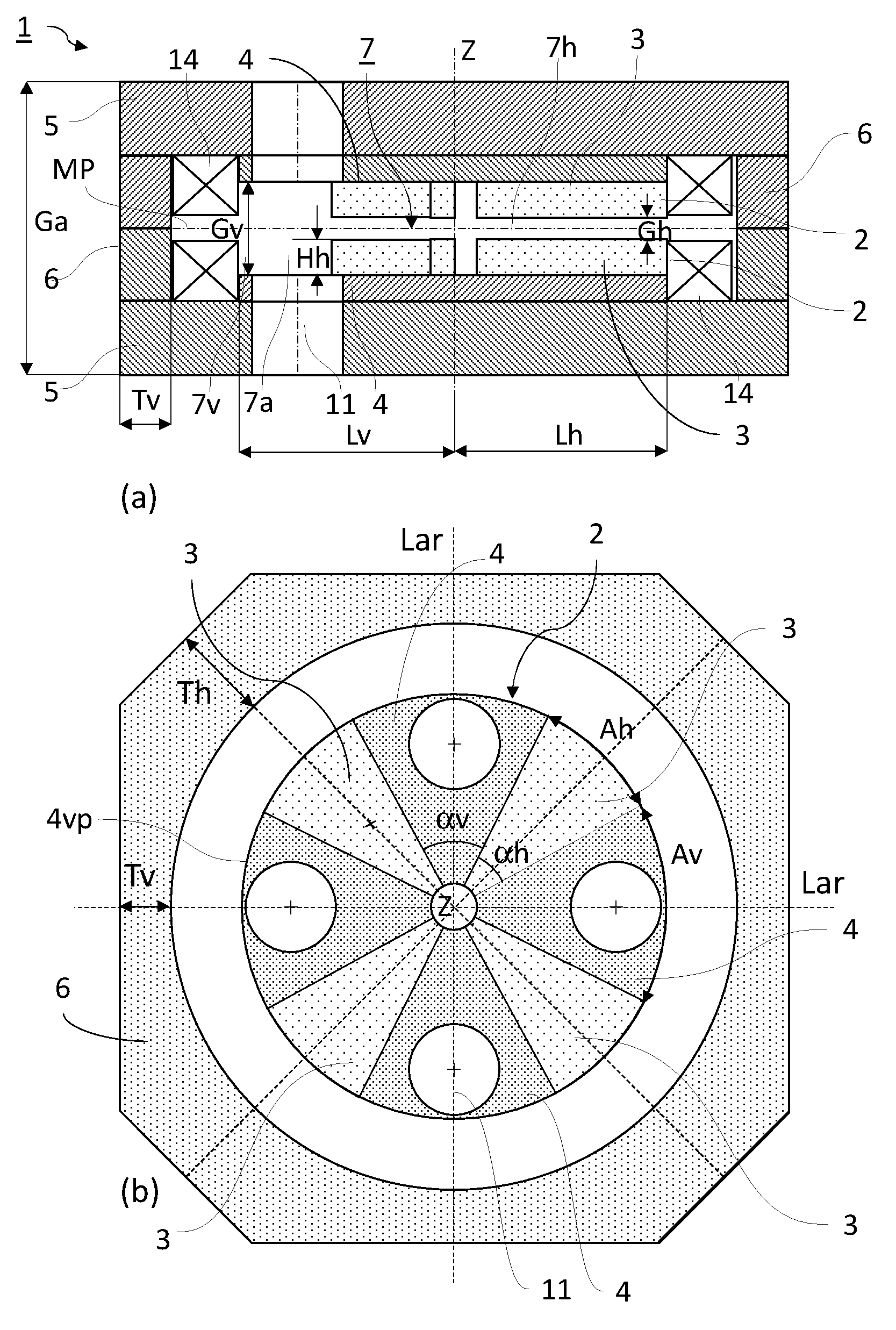

The present disclosure relates to compact isochronous sector-focused cyclotrons having reduced dimensions and weight compared with state of the art cyclotrons of same energies. In one implementation, a cyclotron may include two pole magnets facing each other in a chamber defined by a yoke having base plates and flux return yokes forming a lateral wall of the chamber. The magnet poles may include between three and eight hill sectors alternating with a same number of valley sectors distributed about a central axis. The lip of the abyssal opening may be positioned at a distance from the corresponding valley peripheral edge. The flux return yoke may have a thickness in the portions facing valley sectors, such that the ratio of the product of the distance times the thickness to the square of the distance of the peripheral edge to the central axis is less than 5%.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H05H Class
- 415 Applications Filed
- 273 Patents Issued To-Date
- 65.79 % Issued To-Date
