DC-to-DC converting circuit and integrated circuit of power circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Mar 23, 2017
filing date -
Dec 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

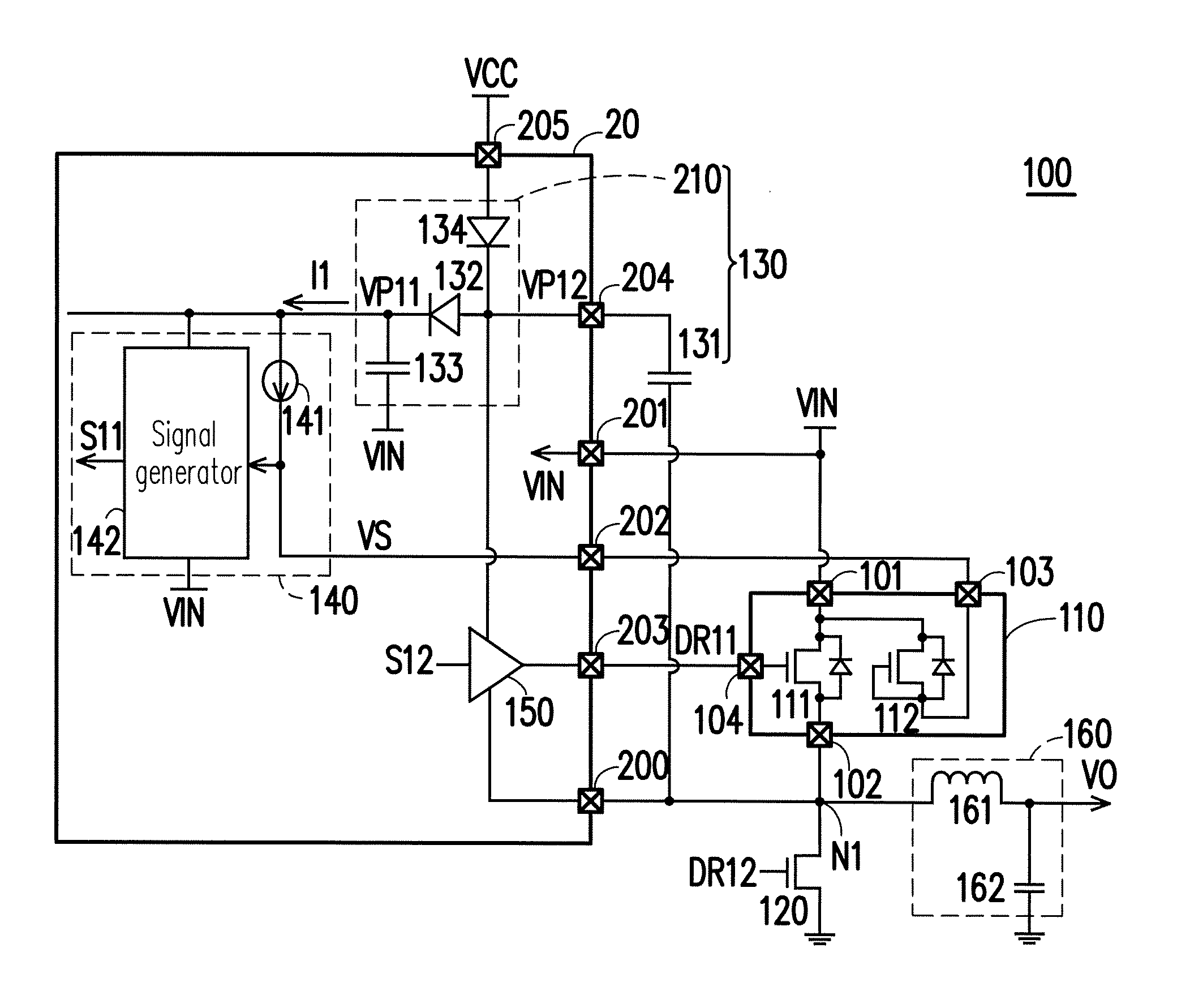

A DC-to-DC converting circuit includes a power switch unit, a second power switch, a phase node, a boosted circuit and a sensing circuit. The power switch unit includes a first power switch, a sensing element, a first end, a second end and a sensing end. The sensing element is connected to the sensing end and the first end. The first end is connected to an input voltage. The second power switch is connected to the first power switch. The phase node is located between the power switch unit and the second power switch and is connected to the second end. The boosted circuit boosts the input voltage to a first operation voltage and provides the first operation voltage to the sensing end. The first operation voltage is higher than the input voltage. The sensing circuit is connected to the boosted circuit and the sensing end to obtain a sensing voltage.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
