Communications connectors including transmission lines having impedance discontinuities that improve return loss and/or insertion loss performance and related methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Nov 24, 2015
filing date -
Jan 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

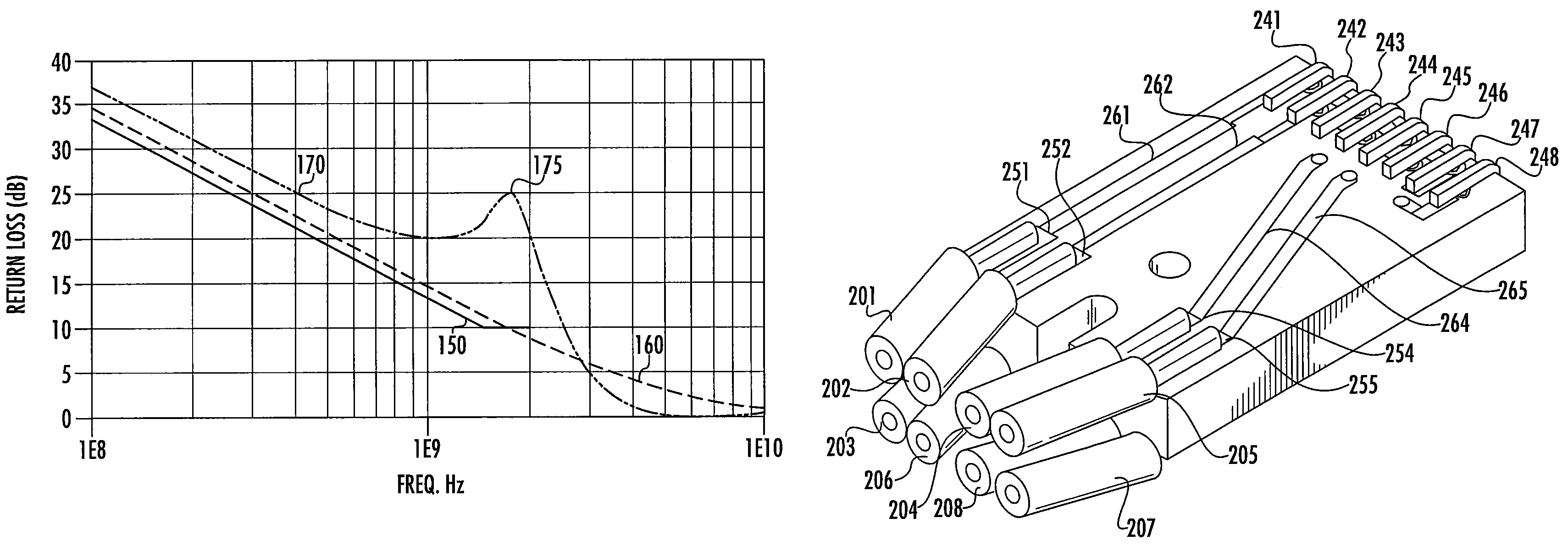

Communications plugs are provided that include a housing that receives the conductors of the communication cable. A printed circuit board is mounted at least partially within the housing. A plurality of plug contacts are on the printed circuit board, and the printed circuit board includes a plurality of conductive paths that electrically connect respective ones of the conductors to respective ones of the plug contacts. First and second of the conductive paths are arranged as a first differential pair of conductive paths that comprise a portion of a first differential transmission line through the communications plug, where the first differential transmission line includes a first transition region where the impedance of the first differential transmission line changes by at least 20% and a second transition region impedance of the first differential transmission line changes by at least 20%.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01R Class
- 3228 Applications Filed
- 2915 Patents Issued To-Date
- 90.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01R Class
- 21.65 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
