Insulating housing of an electrical terminal device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Apr 14, 2015
filing date -
Apr 15, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

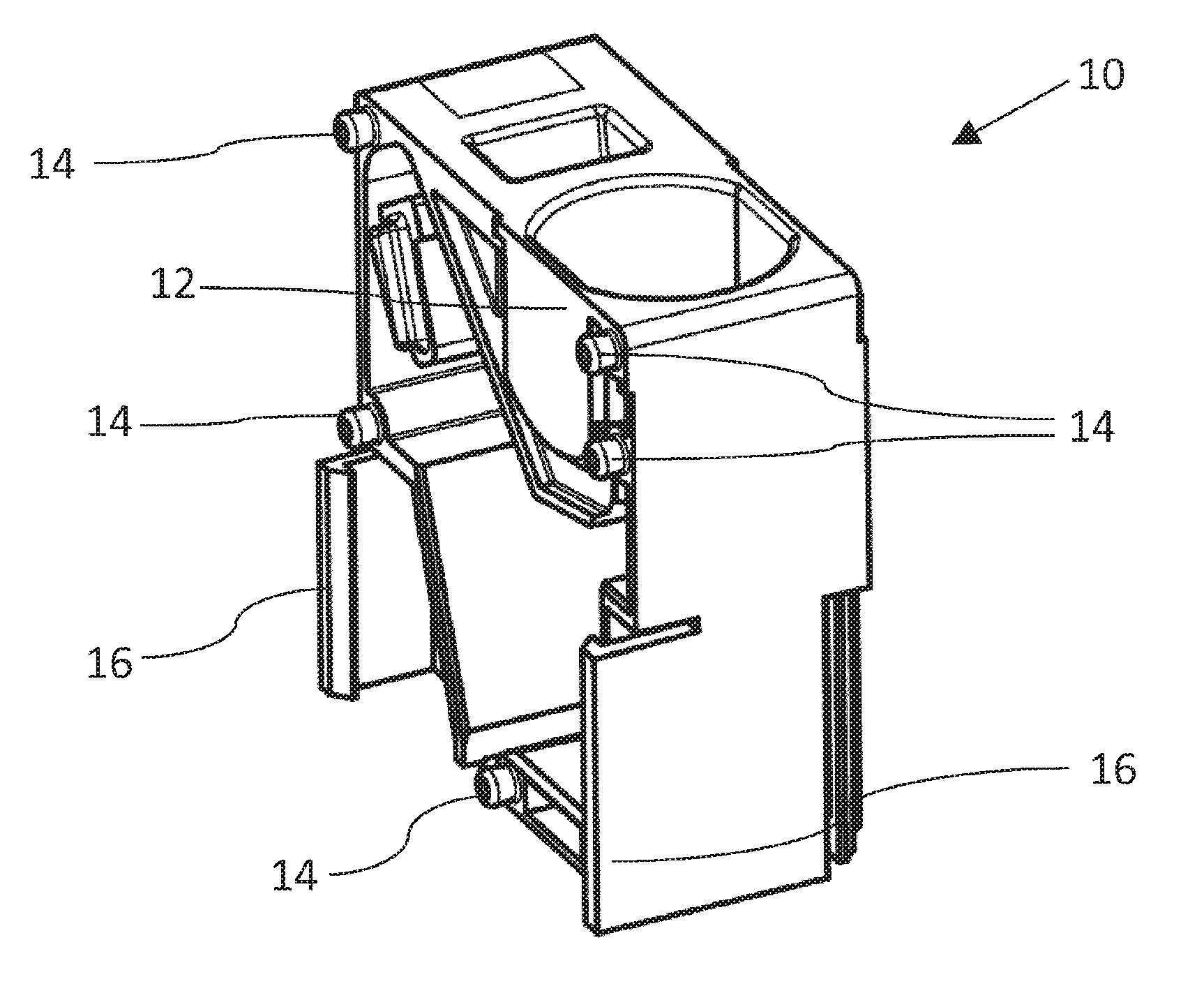

An insulating housing of an electrical terminal device includes a latching pin arranged on a front side of the housing and that protrudes therefrom in a direction perpendicular to a plane of the front side of the housing, the latching pin engaging in a latching hole arranged on a rear side of the housing in a direction perpendicular to a plane of the rear side of the housing, and a latching hook that protrudes from the front side of the housing and that engages in and latches behind a catch arranged on the rear side of the housing. The latching pin and the latching hole are in the shape of a truncated cone. A plurality of the insulating housings is capable of being plugged on top of one another to form an electrical terminal block.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H01R Class
- 3228 Applications Filed
- 2915 Patents Issued To-Date
- 90.31 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01R Class
- 21.65 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
