Method for producing composite structure with metal/metal bonding
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Jun 5, 2013
filing date -
Jun 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

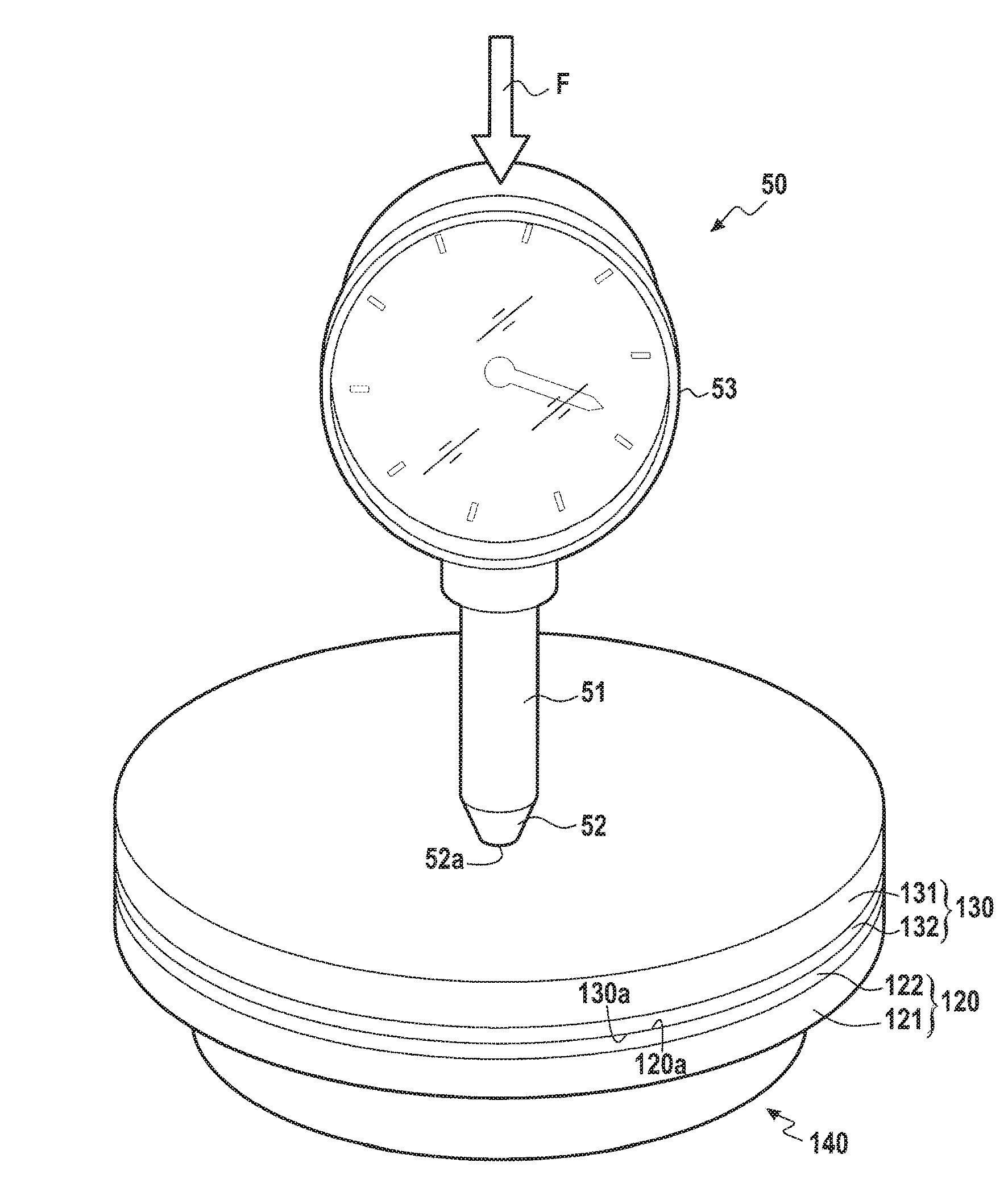

Method for producing a composite structure comprising the direct bonding of at least one first wafer with a second wafer, and comprising a step of initiating the propagation of a bonding wave, where the bonding interface between the first and second wafers after the propagation of the bonding wave has a bonding energy of less than or equal to 0.7 J/m2. The step of initiating the propagation of the bonding wave is performed under one or more of the following conditions: placement of the wafers in an environment at a pressure of less than 20 mbar and/or application to one of the two wafers of a mechanical pressure of between 0.1 MPa and 33.3 MPa. The method further comprises, after the step of initiating the propagation of a bonding wave, a step of determining the level of stress induced during bonding of the two wafers, the level of stress being determined on the basis of a stress parameter Ct calculated using the formula Ct=Rc/Ep, where: Rc corresponds to the radius of curvature (in km) of the two-wafer assembly and Ep corresponds to the thickness (in μm) of the two-wafer assembly. The method further comprises a step of validating the bonding when the level of stress Ct determined is greater than or equal to 0.07.
