Digital driving of active matrix displays
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Oct 30, 2013
filing date -
Nov 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

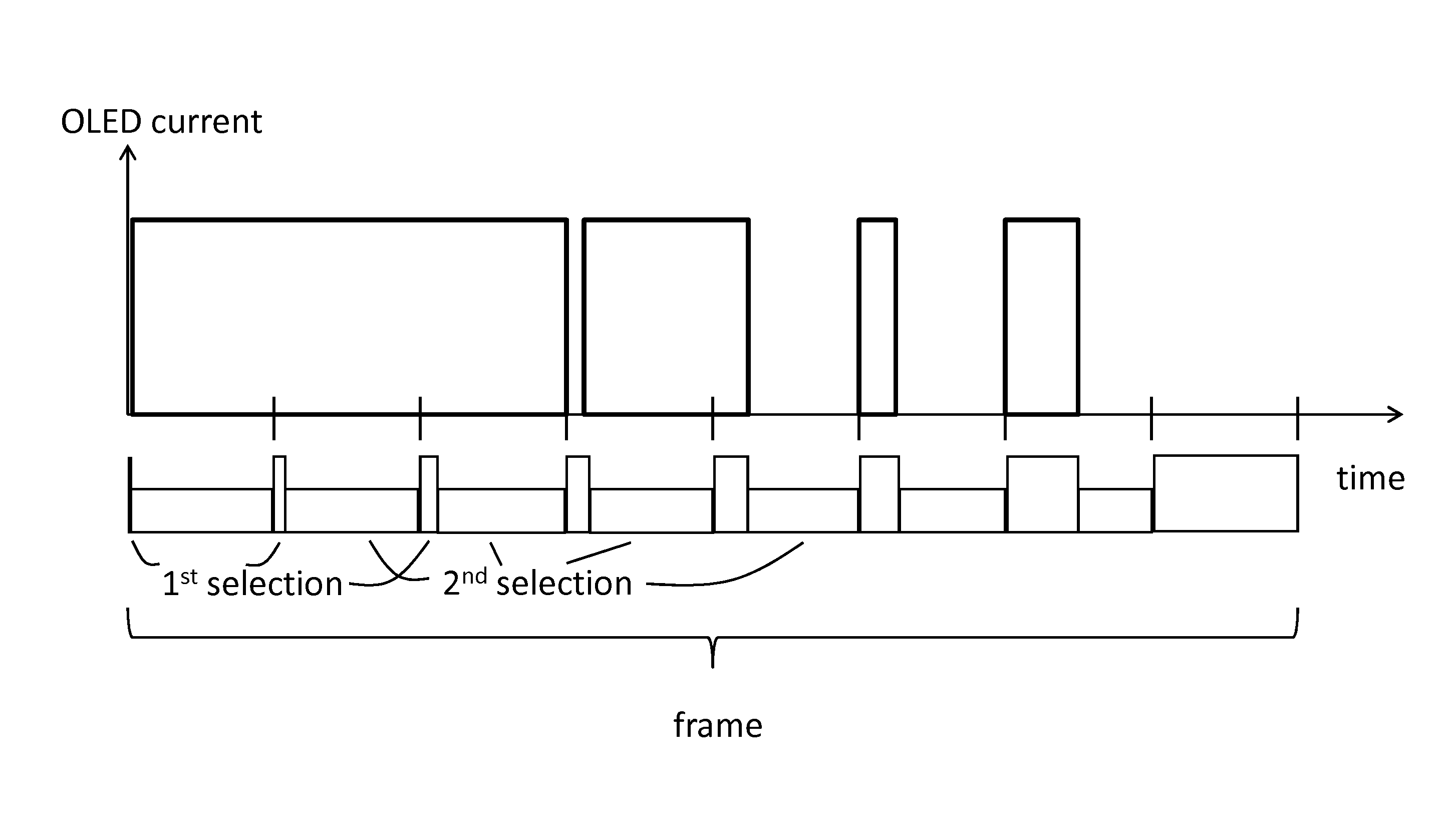

A method for digital driving of an active matrix display with a predetermined frame rate is described. The display contains a plurality of pixels organized in a plurality of rows and a plurality of columns. The method includes representing each of the plurality of pixels of an image to be displayed within a frame by an n-bit digital image code. The method also includes dividing the image frame into sub-frames, which may be of substantially equal duration. Within each sub-frame, the method includes sequentially selecting at least one of the plurality of rows twice. Upon a first selection, a first digital code is written to the selected row and upon a second selection a second digital code is written to the selected row. There is a predetermined time delay between the second selection and the first selection. Digital driving circuitry is also described.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- G09G Class
- 23.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
