Touch panel and touch display apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Sep 16, 2014
filing date -
Jun 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

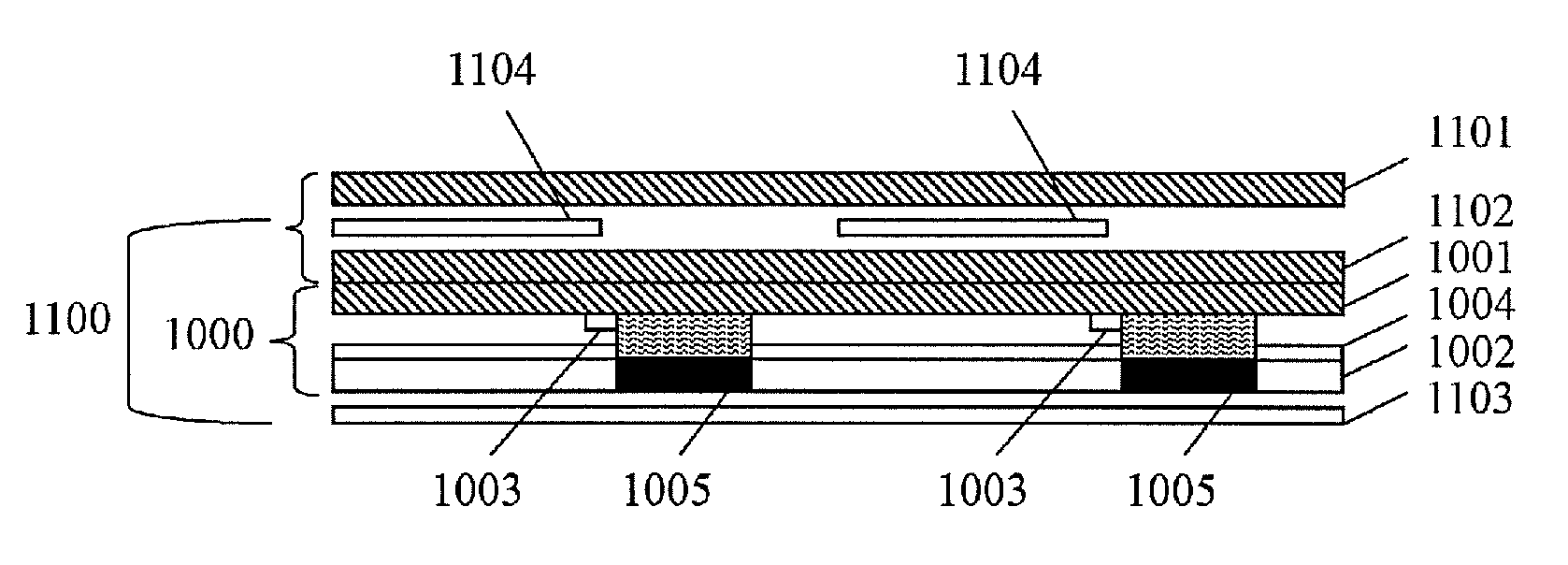

The present disclosure relates to a touch panel and a touch display apparatus. The touch panel comprises a glass substrate, a solar cell panel located at a side of the glass substrate and comprising a plurality of solar cell modules, n sensing lines in a first direction and m sensing lines in a second direction for carrying the electric power converted by the solar cell panel, and a detection unit for detecting the electric currents or voltages on the sensing lines in the first direction and the sensing lines in the second direction and for determining a touch region of a touch object based on a variation in the electric currents or voltages, wherein each of the n sensing lines in the first direction and the m sensing lines in the second direction connects the individual solar cell modules in the respective direction in series, and m and n are positive integers. The number of the wires connected in the touch panel of the present disclosure is reduced, and a lightweight touch screen is achieved.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H01L Class
- 23828 Applications Filed
- 21803 Patents Issued To-Date
- 91.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
