Sheet conveyance apparatus, image reading apparatus, and image forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Apr 30, 2015
filing date -
May 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

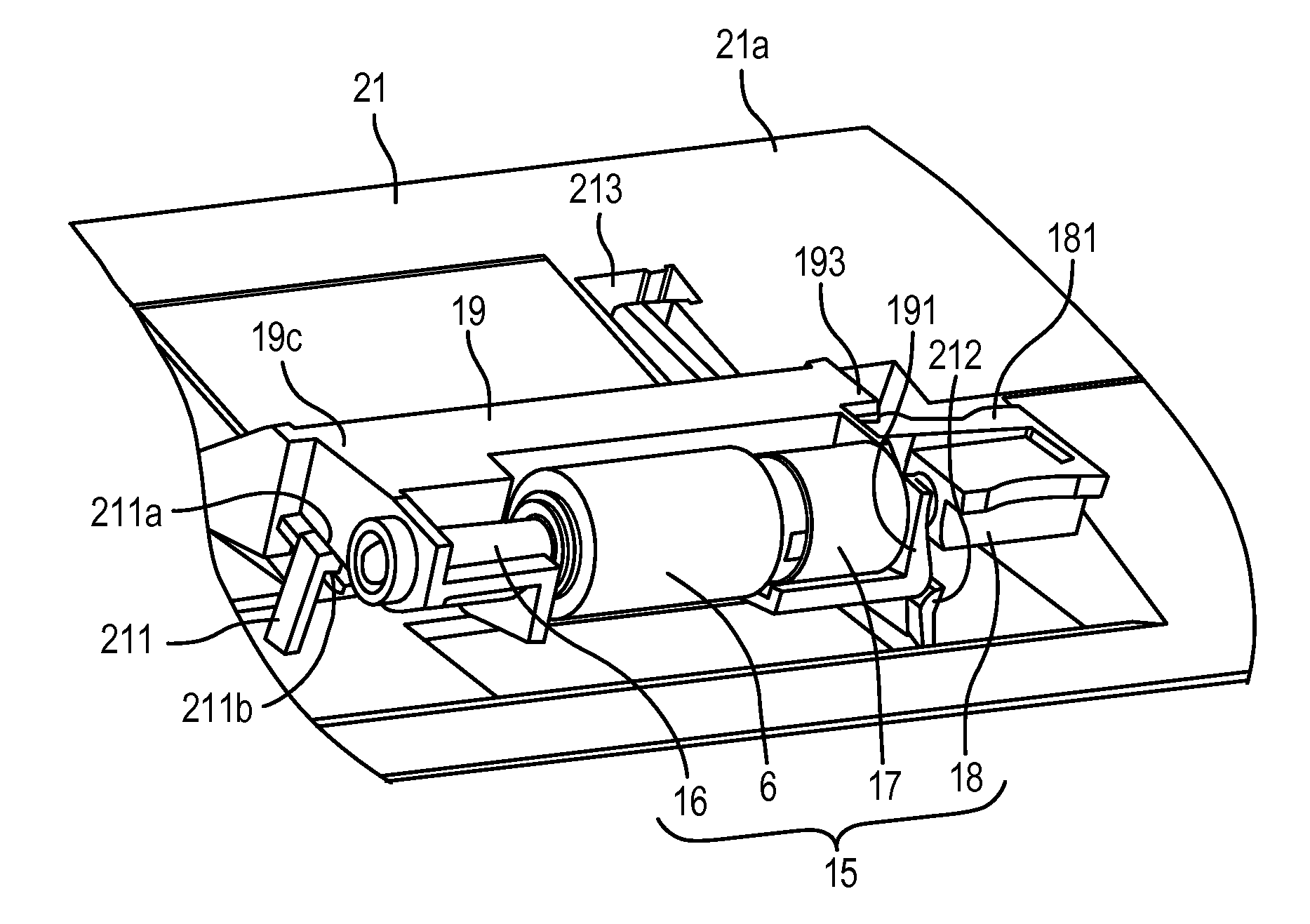

A sheet conveyance apparatus, including: a rotatable first rotary member; a second rotary member configured to rotate together with the first rotary member to nip and convey a sheet; a rotary member support unit configured to support the first rotary member in a mountable and removable manner, the rotary member support unit being pivotally movable in a direction intersecting with a conveyance direction of the sheet; and a regulating member configured to regulate pivotal movement of the rotary member support unit so that the first rotary member is fitted into a predetermined position of the rotary member support unit when the first rotary member is mounted.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B65H Class
- 1414 Applications Filed
- 1213 Patents Issued To-Date
- 85.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B65H Class
- 41.16 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
